Input Shaft: Service and Repair

DISASSEMBLY

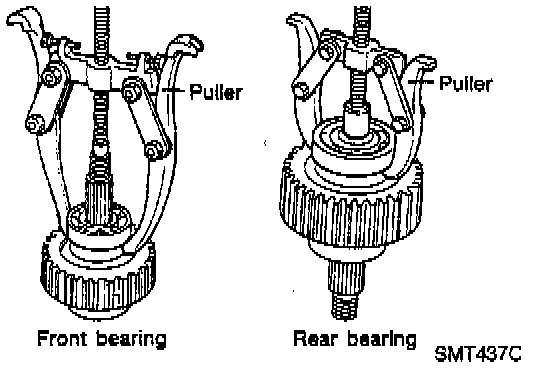

- Using a gear puller, remove front drive shaft front bearing and rear bearings.

INSPECTION

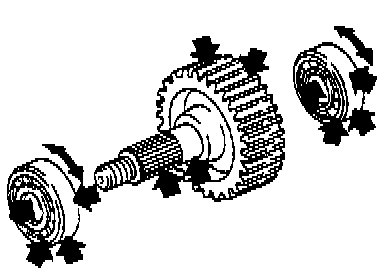

Sprocket And Shaft
- Check sprocket for excessive wear, chips or cracks.
- Check shaft for cracks or wear.





Bearing
- Make sure bearings roll freely and are free from noise, crack, pitting or wear.

ASSEMBLY

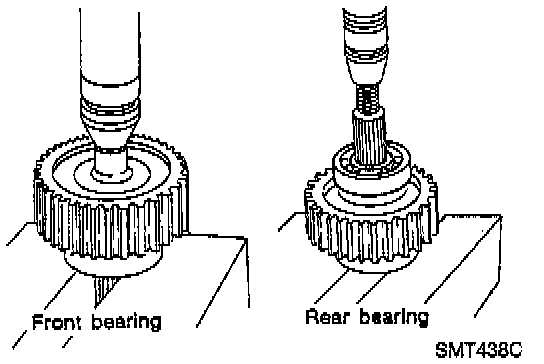

- Press front drive shaft front and rear bearings onto front drive shaft.
