Park Gear: Service and Repair

INSPECTION

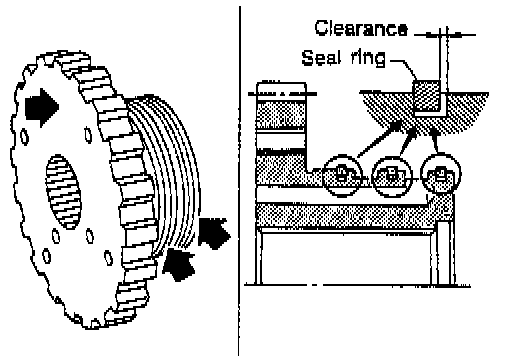

- Check contacting surface of parking gear and ring groove areas for wear.
- Measure clearance between seal ring and ring groove.
Standard clearance: 0.15 - 0.40 mm (0.0059 - 0.0157 inch)
Wear limit: 0.40 mm (0.0157 inch)
