Manual Lock Free Running Hub

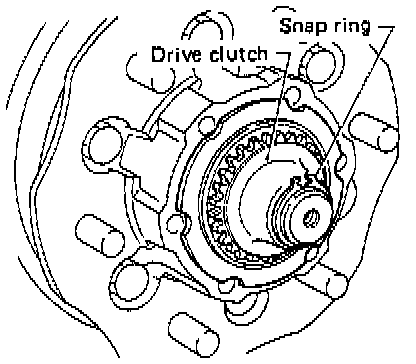

Exploded View Of Manual Locking Hubs:

REPLACEMENT
Refer to the illustrations when servicing, noting the following:





^ Set knob of manual lock free-running hub in the FREE position.
^ Remove manual-lock free-running hub with brake pedal depressed.





^ Remove snap ring and then draw out drive clutch.
^ When installing manual-lock free-running hub, make sure the hub is in the FREE position.
^ Apply multi-purpose grease to the parts shown in the illustration.
^ Check operation of manual lock free-running hub after installation.

INSPECTION
^ Check that the knob moves smoothly and freely.
^ Check that the clutch moves smoothly in the body.
