Front

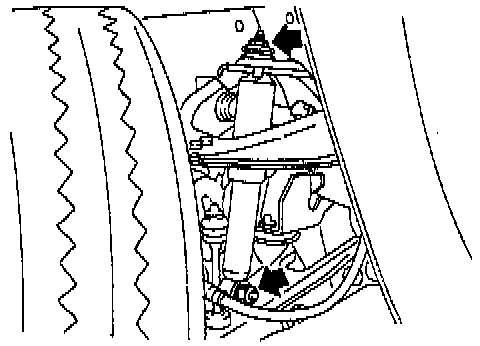

REPLACEMENT
^ When removing and installing shock absorber, do not allow oil or grease to contact rubber parts.

INSPECTION
^ Except for nonmetallic parts, clean all parts with suitable solvent and dry with compressed air.
^ Use compressed air to blow dirt and dust off of nonmetallic parts.
^ Check for oil leakage and cracks. Replace if necessary.
^ Check piston rod for cracks, deformation and other damage. Replace if necessary.
^ Check rubber parts for wear, cracks, damage and deformation. Replace if necessary.
