Steering Wheel: Service and Repair

REPLACEMENT

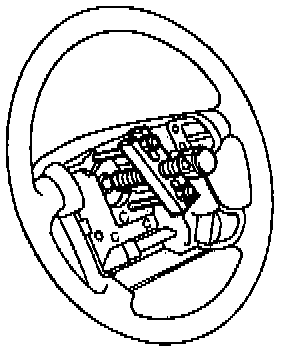

Refer to the illustrations when servicing,noting the following:
1. Remove air bag module and spiral cable. Refer to Air Bags and Seat Belts.
2. Disconnect horn connector and remove steering wheel nut.
3. Remove steering wheel mass damper.





4. Remove steering wheel using steering wheel puller tool No. ST27180001, or equivalent..
5. For installation, refer to Air Bags and Seat Belts.
