Seat Belt Buckle Switch

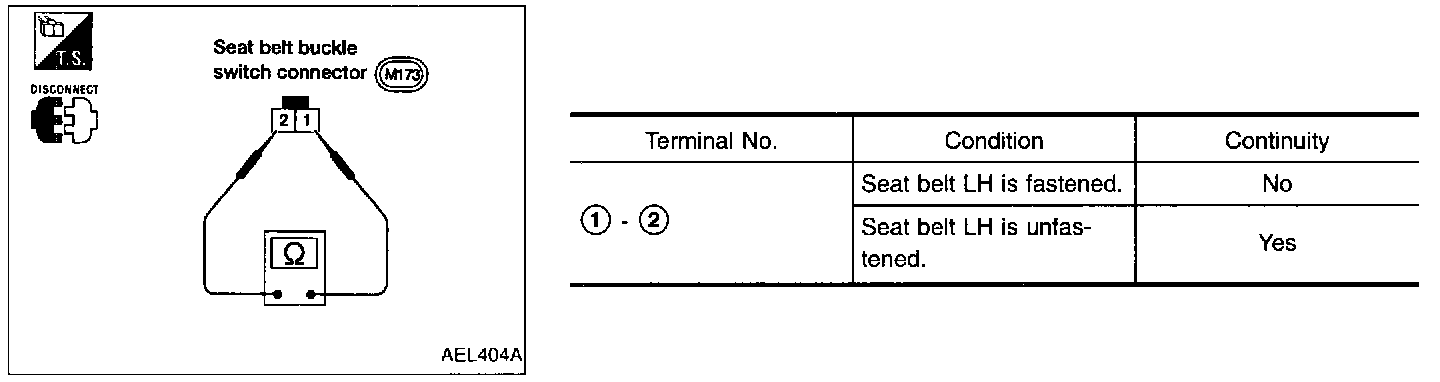

Seat Belt And Buckle Switch:




Check continuity between terminals (1) and (2) when seat belt LH is fastened and unfastened.
