Nissan-Datsun Truck
>>
1997
>>
D21 Hardbody SE King Cab 4WD L4-2389cc 2.4L SOHC MFI (KA24E)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Electrical Component Inspection
>>
Key Switch
Key Switch

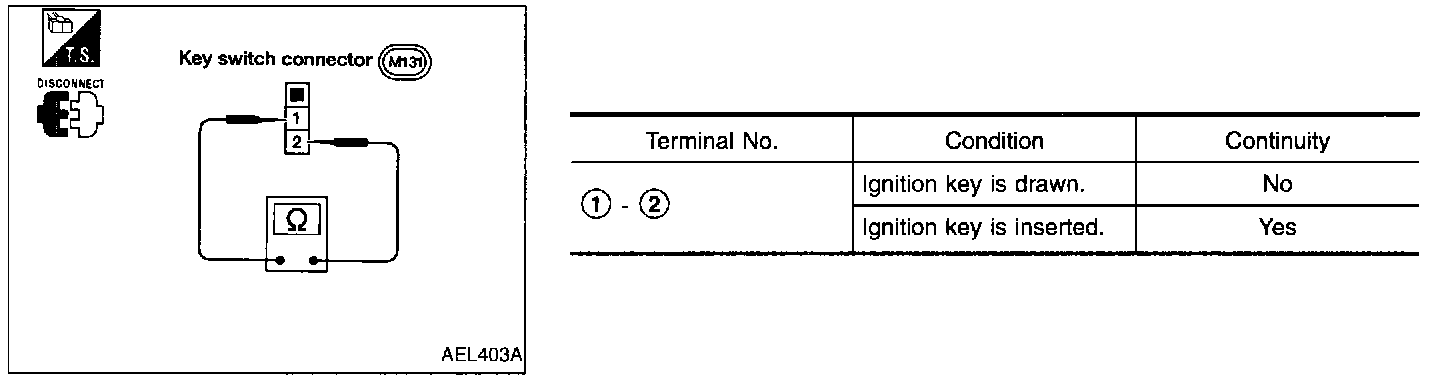

Key Switch:
Check continuity between terminals (1) and (2) when ignition key is drawn and inserted.
