Home >> Nissan-Datsun Truck >> 1997 >> D21 Hardbody SE King Cab 4WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Diagnostic Procedure 1

Diagnostic Procedure 1

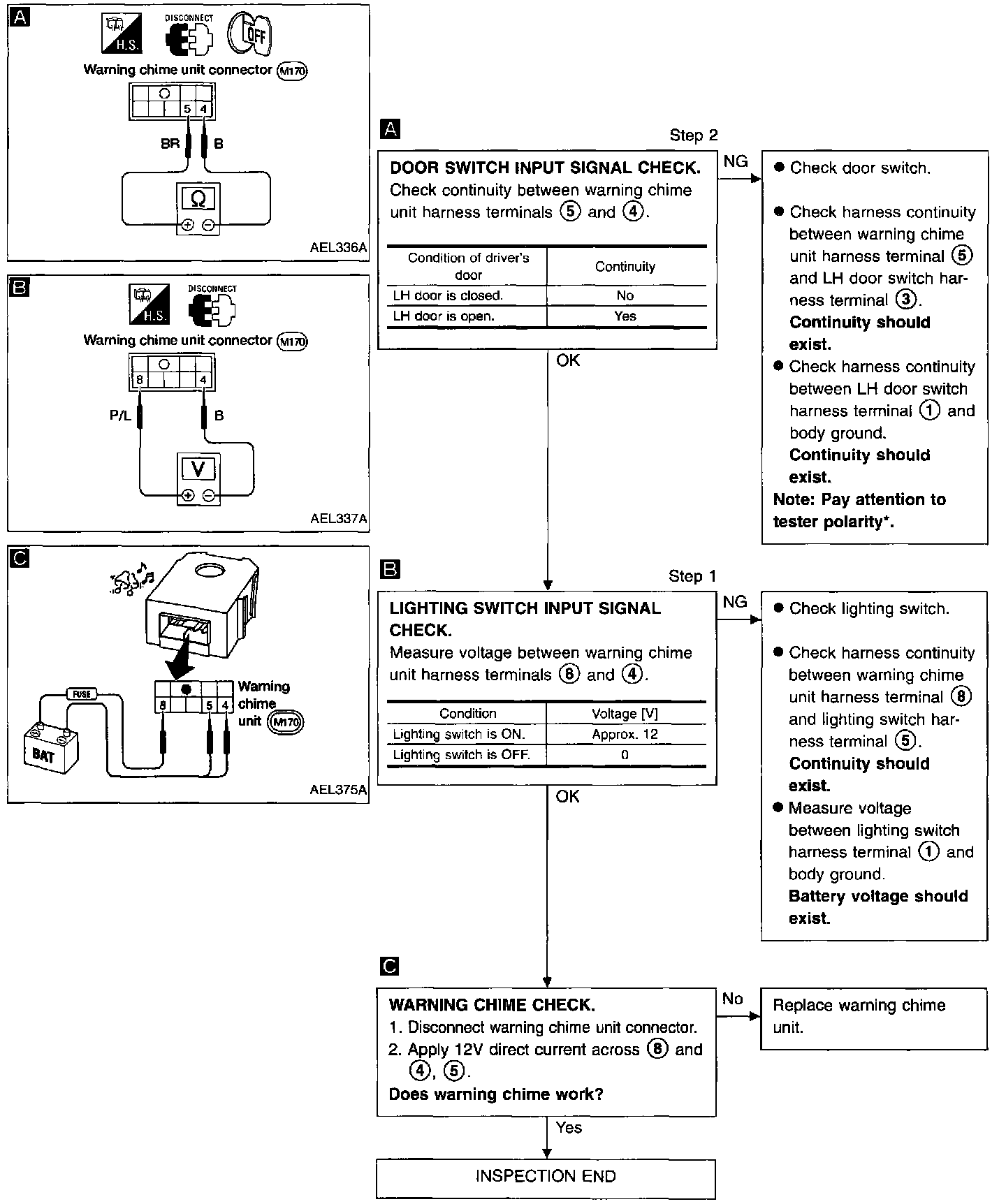

Diagnostic Procedure 1:




SYMPTOM: Light warning chime does not activate.
^ Perform "PRELIMINARY CHECK - Procedure 1" before referring to the following flow chart.
