Front Crankshaft Seal: Service and Repair

1. Remove radiator shroud and crankshaft pulley.
2. Remove front oil seal.

NOTE: Be careful not to scratch front cover.

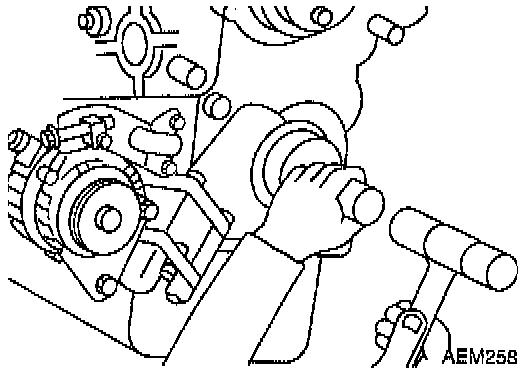

3. Apply engine oil to new oil seal and install it using suitable tool.





4. Install new oil seal in the direction shown.
