Vacuum Brake Booster Check Valve: Testing and Inspection

INSPECTION
Hoses And Connectors
^ Check vacuum lines, connections and check valve for airtightness, improper attachment chafing and deterioration.

Check Valve

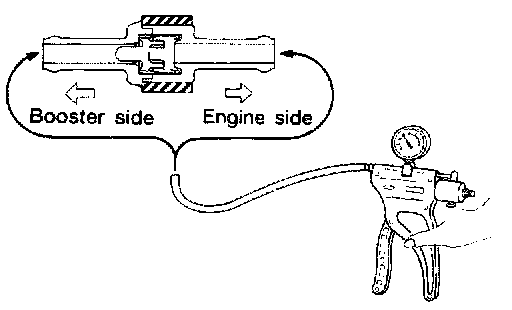

^ Check vacuum with a vacuum pump.
^ Connect pump to booster side vacuum should exist.
^ Connect pump to engine side vacuum should not exist.
