Hydraulic Control Assembly - Antilock Brakes: Service and Repair

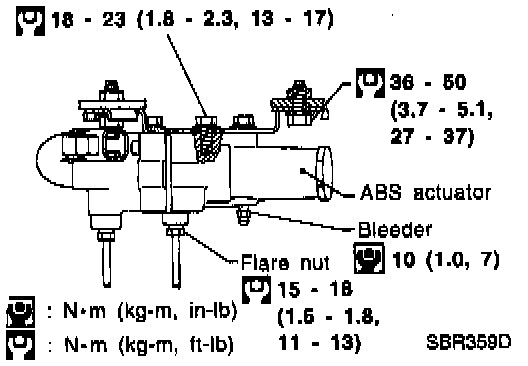

ACTUATOR

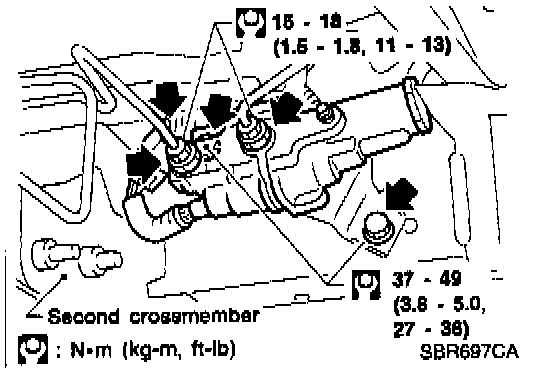

Removal

1. Disconnect battery cable.
2. Drain brake fluid.
3. Disconnect connectors, brake pipes.
4. Remove fixing nuts.

Installation

1. Connect brake pipes temporarily.
2. Secure fixing bolts.
3. Tighten brake pipe flare nuts.
4. Connect connectors and battery cable.
