Replacement

CAUTION: Before separating the transmission from the engine, remove the crankshaft position sensor (OBD) from the transmission. Be careful not to damage sensor edge or ring gear teeth.

REMOVAL
1. Remove battery negative terminal.
2. Remove crankshaft position sensor (OBD) from transmission upper side.
3. Remove clutch operating cylinder from transmission.
4. Remove back-up switch and neutral position switch harness connectors.
5. Remove starter motor from transmission.
6. Remove propeller shaft. Service and Repair

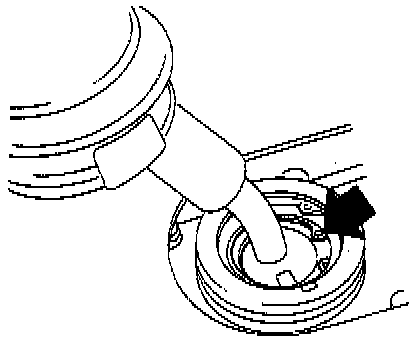

- Insert plug into rear oil seal after removing propeller shaft.
- Be careful not to damage spline, sleeve yoke and rear oil seal when removing propeller shaft.
7. Remove control lever.
8. Support engine by placing a jack under oil pan.
- Do not place jack under oil pan drain plug.
9. Separate transmission from engine.

WARNING: SUPPORT MANUAL TRANSMISSION WHILE REMOVING IT.





INSTALLATION
1. Tighten bolts securing transmission.
- Bolt No. 1: 39 - 49 Nm (29 - 36 ft. lbs.)
- Length: 65 mm (2.56 inch)
- Bolt No. 2: 39 - 49 (29 - 36 ft. lbs.)
- Length: 58 mm (2.28 inch)
- Bolt No. 3 [1]: 16 - 22 Nm (12 - 16 ft. lbs.)
- Length: 25 mm (0.98 inch)
- Bolt No. 4: 16 - 22 Nm (12 - 16 ft. lbs.)
- Length: 16 mm (0.63 inch)
2. Tighten clutch operating cylinder. Specifications

[1]: With nut
