Sector Shaft: Adjustments

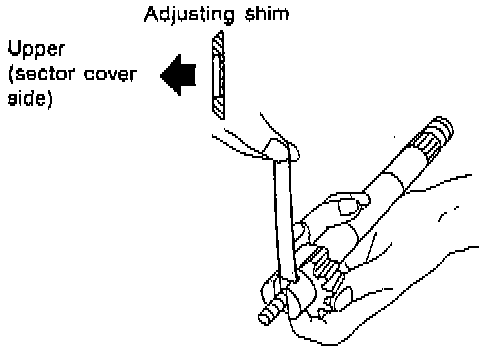

^ Select and install proper adjusting shim to achieve proper end play between sector shaft and adjusting screw. Sector shaft end play: 0.1 mm (0.004 inch) or less.
^ Sector shaft adjusting screw shims: Specifications
^ Select and install proper adjusting shim to achieve proper end play between sector shaft and adjusting screw. Sector shaft end play: 0.1 mm (0.004 inch) or less.
^ Sector shaft adjusting screw shims: Specifications
