Home >> Nissan-Datsun Truck >> 1997 >> D21 Hardbody SE King Cab 2WD L4-2389cc 2.4L SOHC MFI (KA24E) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> (For Canada)

(For Canada)

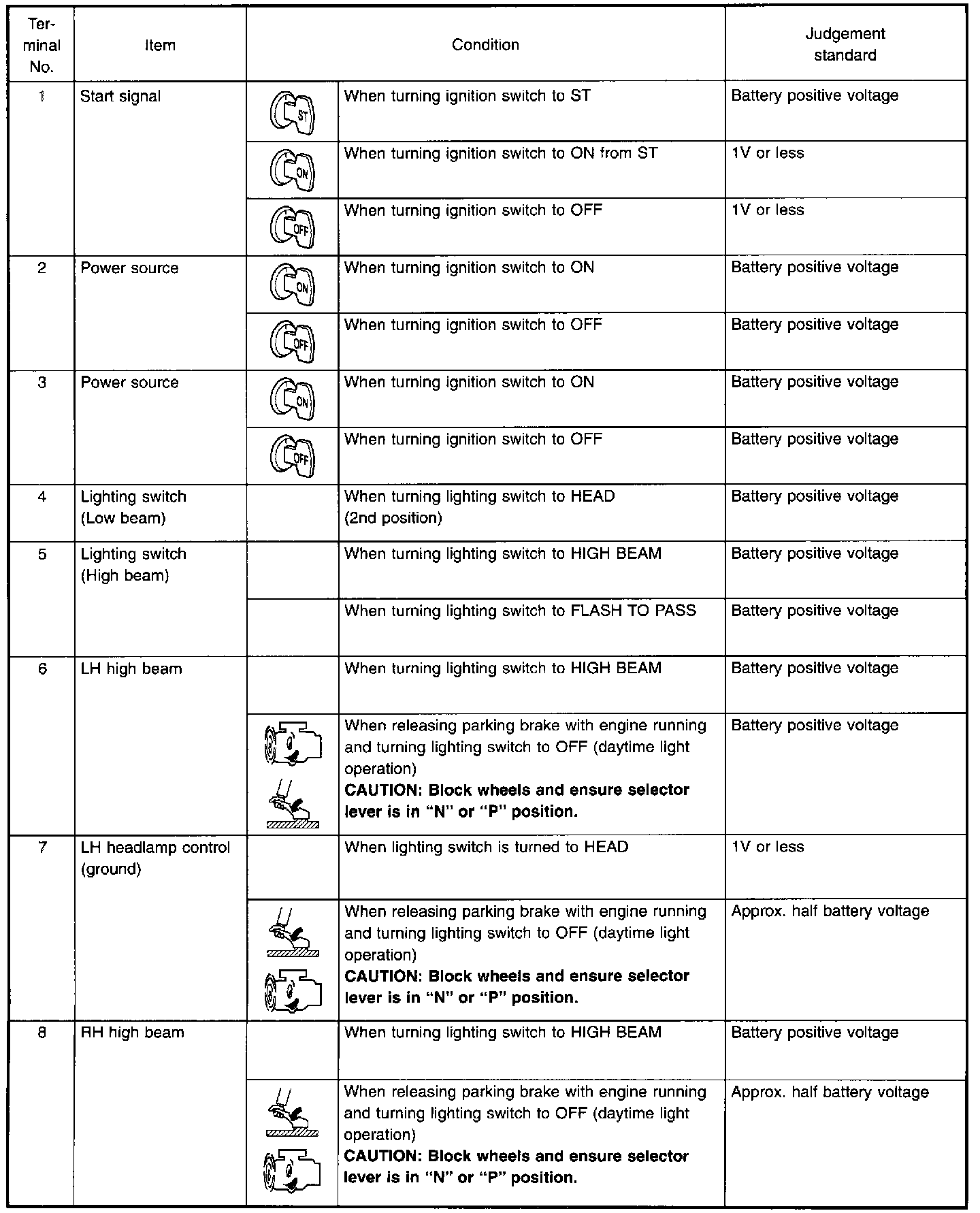

Daytime Light Control Unit Inspection Table (Part 1 Of 2):

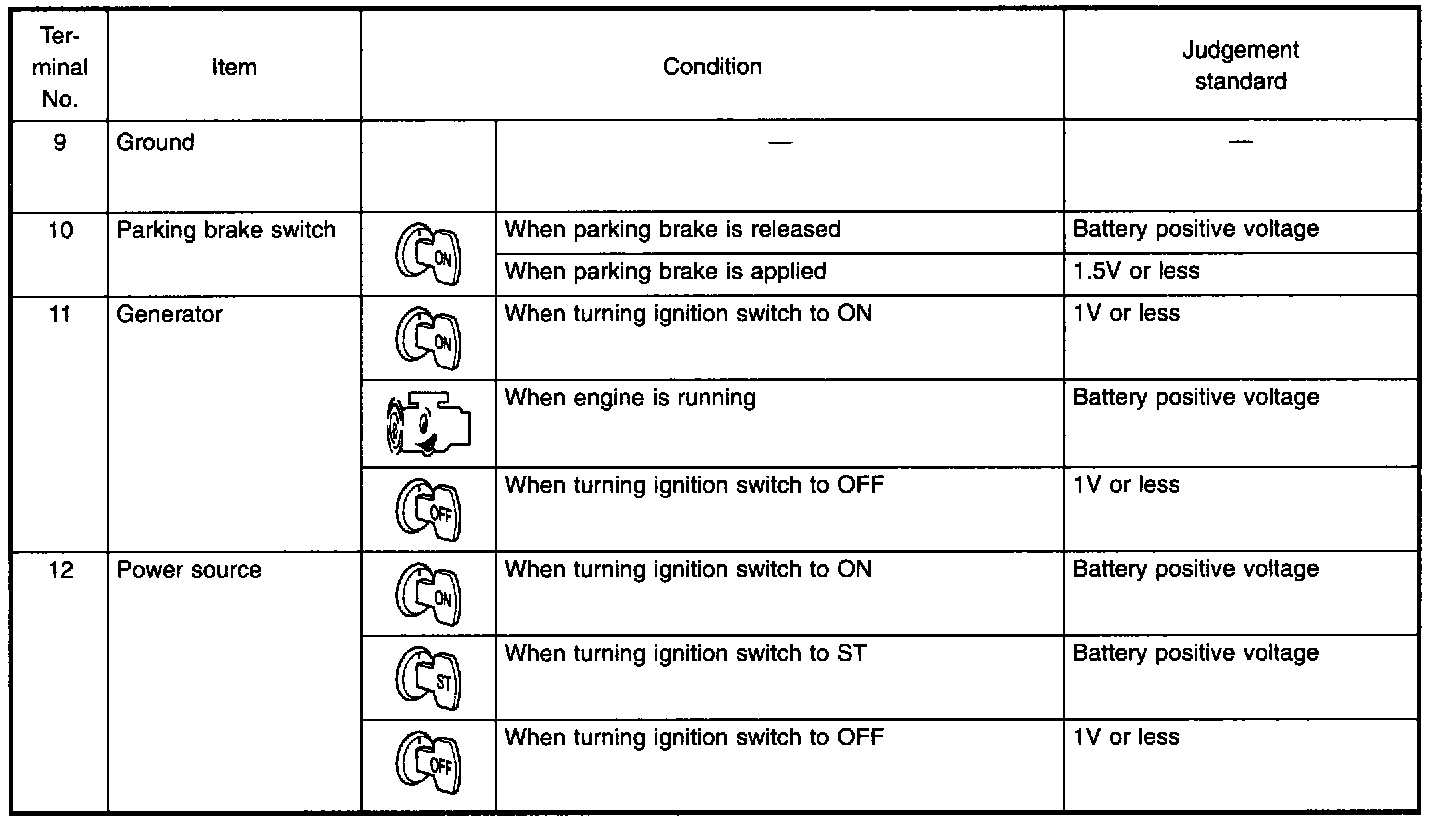

Daytime Light Control Unit Inspection Table (Part 2 Of 2):
