Recall - Brake Vacuum Pump Replacement
No: SR-13-001REVIIDATE: March, 2013
MODEL: 2012 i-MiEV
SUBJECT:
2012 i-MiEV VACUUM PUMP - SAFETY RECALL CAMPAIGN
This bulletin supercedes SR-13-001REV, issued March, 2013 to clarify the replacement procedure. Changes are indicated by <.
PURPOSE
Certain brake vacuum pumps equipped on 2012 i-MiEV vehicles built between December 2, 2011 - September 7, 2012 may become inoperable due to failure of an internal component. If the vacuum pump becomes inoperable the brake warning light will illuminate and the brake warning buzzer will alert the vehicle operator. Vacuum pump inoperability will result in reduced brake power assist which may increase stopping distances and could lead to greater risk of crash.
Replacing the vacuum pump on affected vehicles will resolve this potential condition.
AFFECTED VEHICLES
Certain 2012 i-MiEV vehicles built between December 2, 2011 - September 7, 2012
IMPORTANT
Affected new or used inventory vehicles must be repaired before the vehicle is delivered. Dealers must check their inventory vehicles' VINs on the Warranty Super Screen to verily whether the vehicle is involved in this recall campaign. It is a violation of Federal law for a dealer to deliver a new motor vehicle or any new or used item of motor vehicle equipment (Including a tire) covered by the notification under a sale or lease until the defect or non-compliance is remedied.
CUSTOMER NOTIFICATION

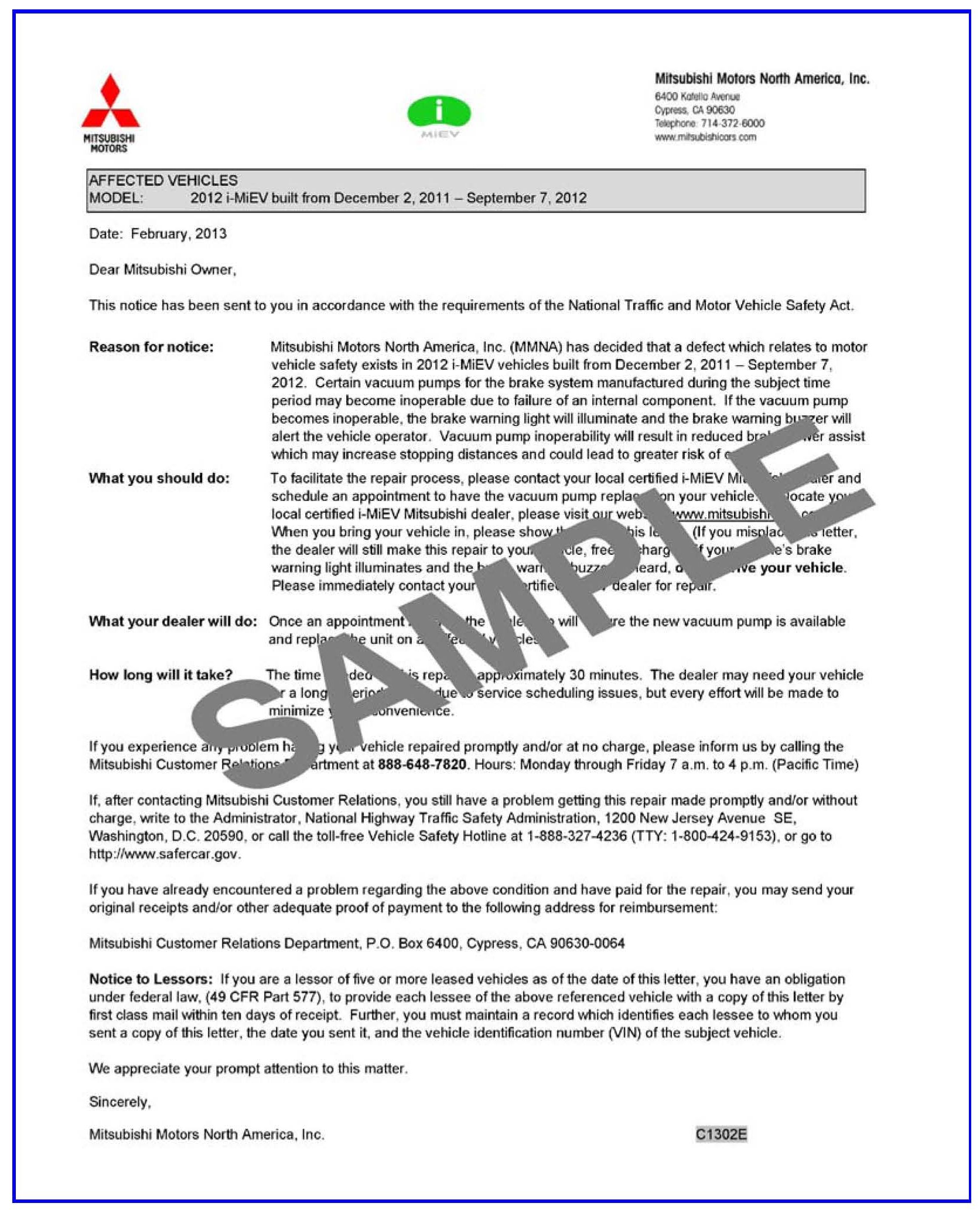

A letter will be sent to all owners of affected vehicles requesting them to schedule an appointment with their local certified Mitsubishi i-MiEV dealer to have their brake system vacuum pump replaced. A copy of the customer notification letter appears at the end of this bulletin.
REQUIRED OPERATIONS
Before starting this campaign procedure CHECK THE WARRANTY SUPERSCREEN to verify if the vehicle is an affected VIN for this campaign and this campaign procedure has not already been completed.
Repairs must be completed by a certified i-MiEV technician.
IMPORTANT
Please ensure the Main drive battery is fully charged prior to vehicle delivery. If the vehicle cannot be immediately repaired, the Main drive battery should be charged while the vehicle is waiting for repairs. This will limit customer inconvenience and maximize customer satisfaction.
VACUUM PUMP REPLACEMENT PROCEDURE

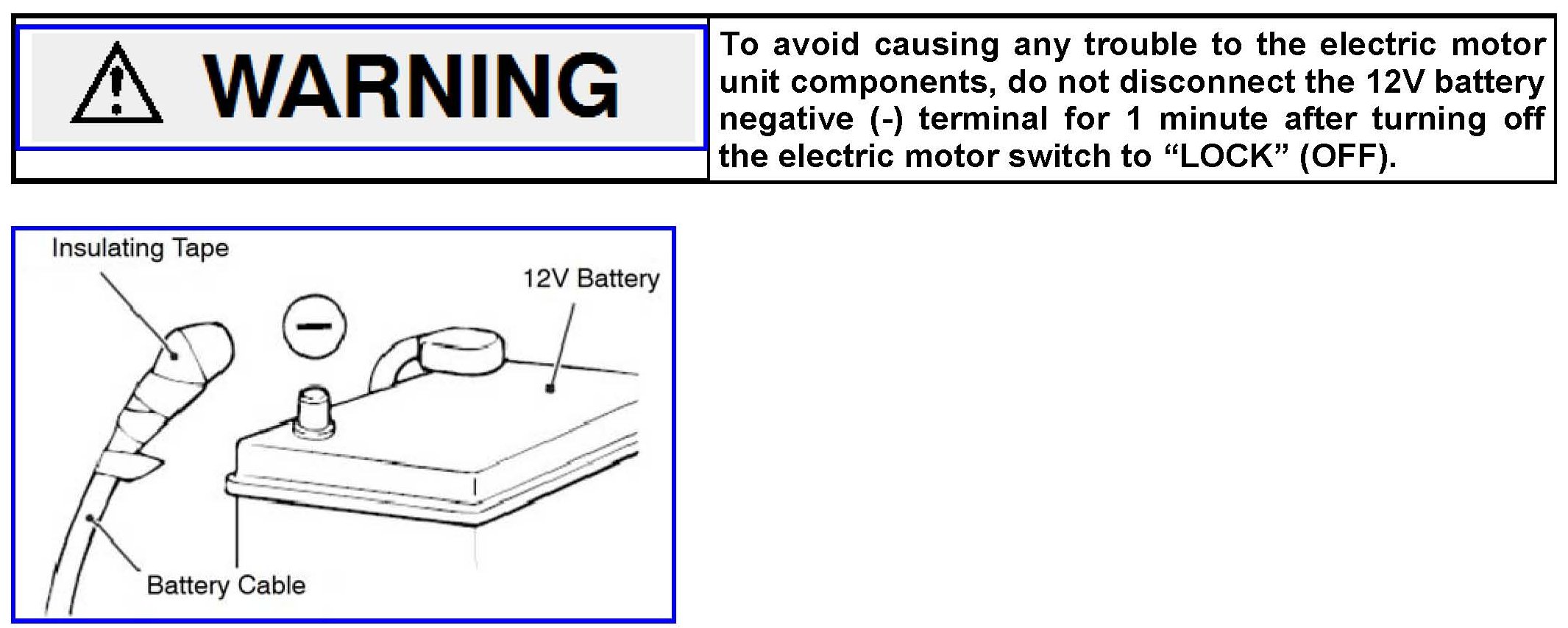

1. With the vehicle parked and the electric motor switch in "OFF" position, set the parking brake and open the hood. Remove the 12V battery cover and disconnect the negative (-) terminal of the battery. Wait at least 60 seconds. Insulate disconnected negative (-) terminal with electrical tape. REMINDER: If the vehicle is not equipped with the optional OEM navigation unit, please record all radio station presets and reprogram when repair is completed.

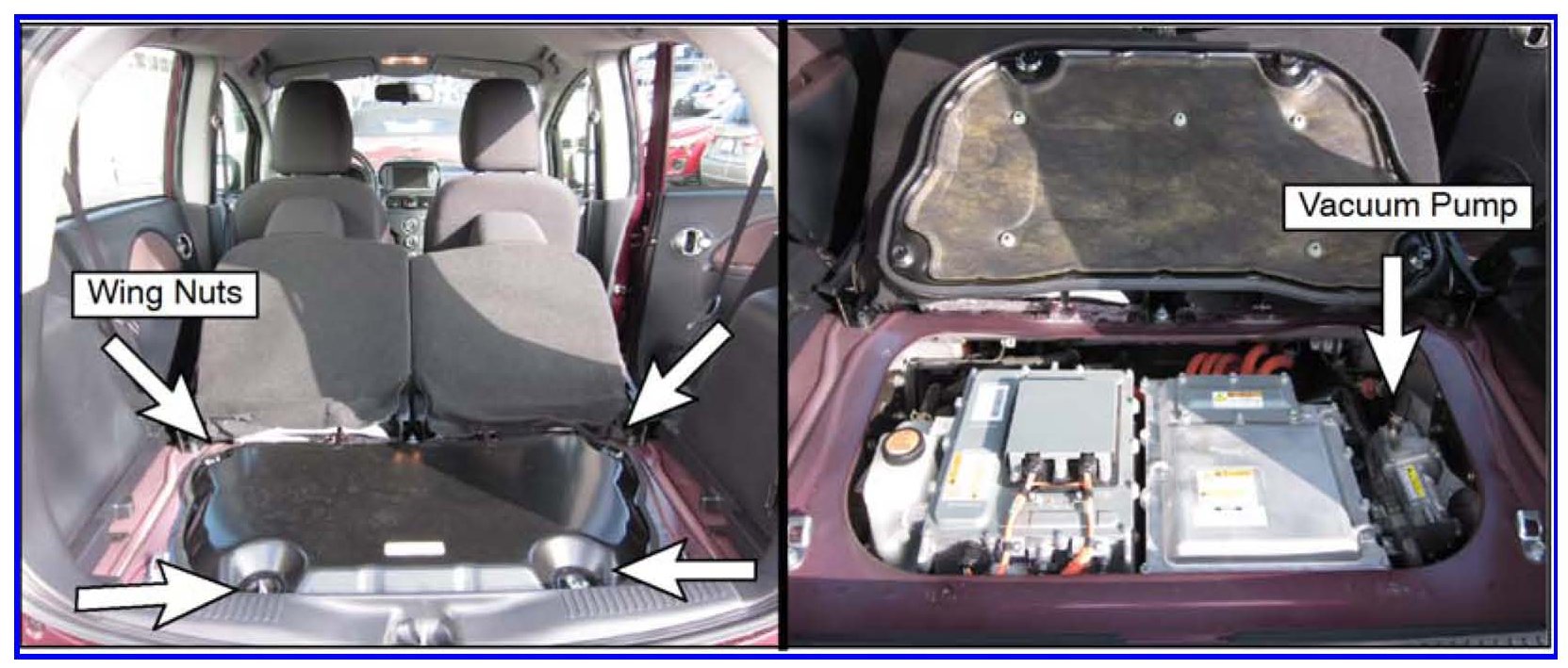

2. Open the liftgate. Adjust the rear seatbacks forward into the passenger compartment. Remove and store the rear access cover. Unscrew the four wing nuts from the power unit inspection lid and open the lid to gain access to the vacuum pump.

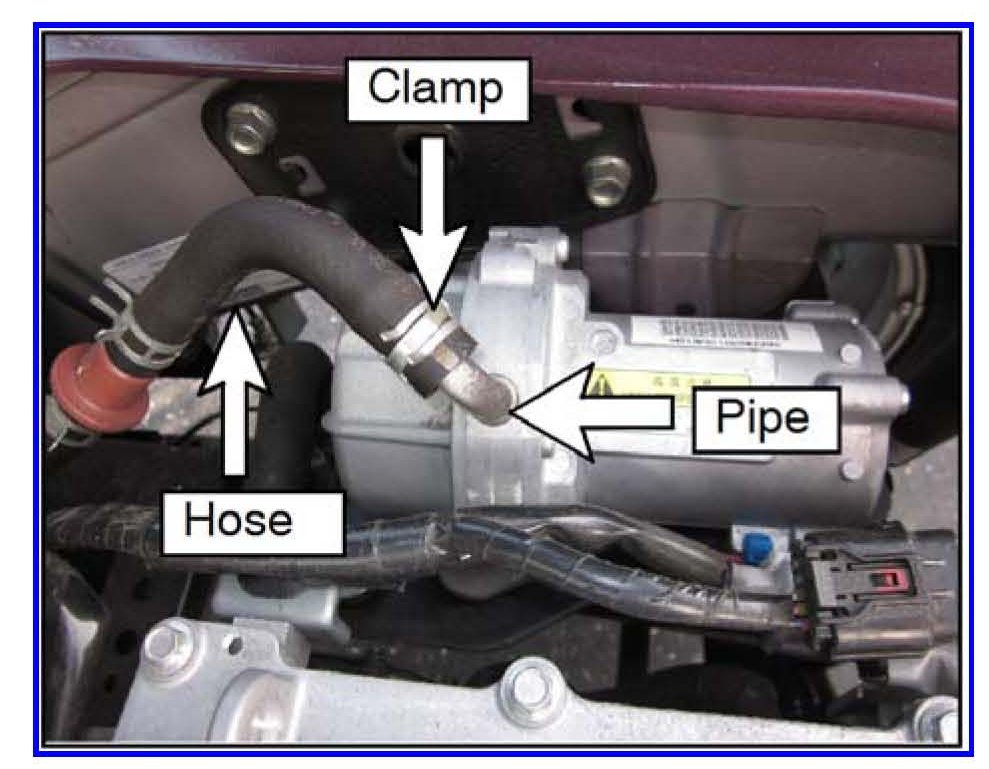

<3. Squeeze the vacuum hose clamp and slide it to the center of the vacuum hose.
REMINDER:
For re-installation, note location of the vacuum hose clamp on the vacuum hose.
4. Gently pull off the vacuum hose from the vacuum pump.
REMINDER:
For re-installation, note location of the vacuum hose on the vacuum pump pipe.

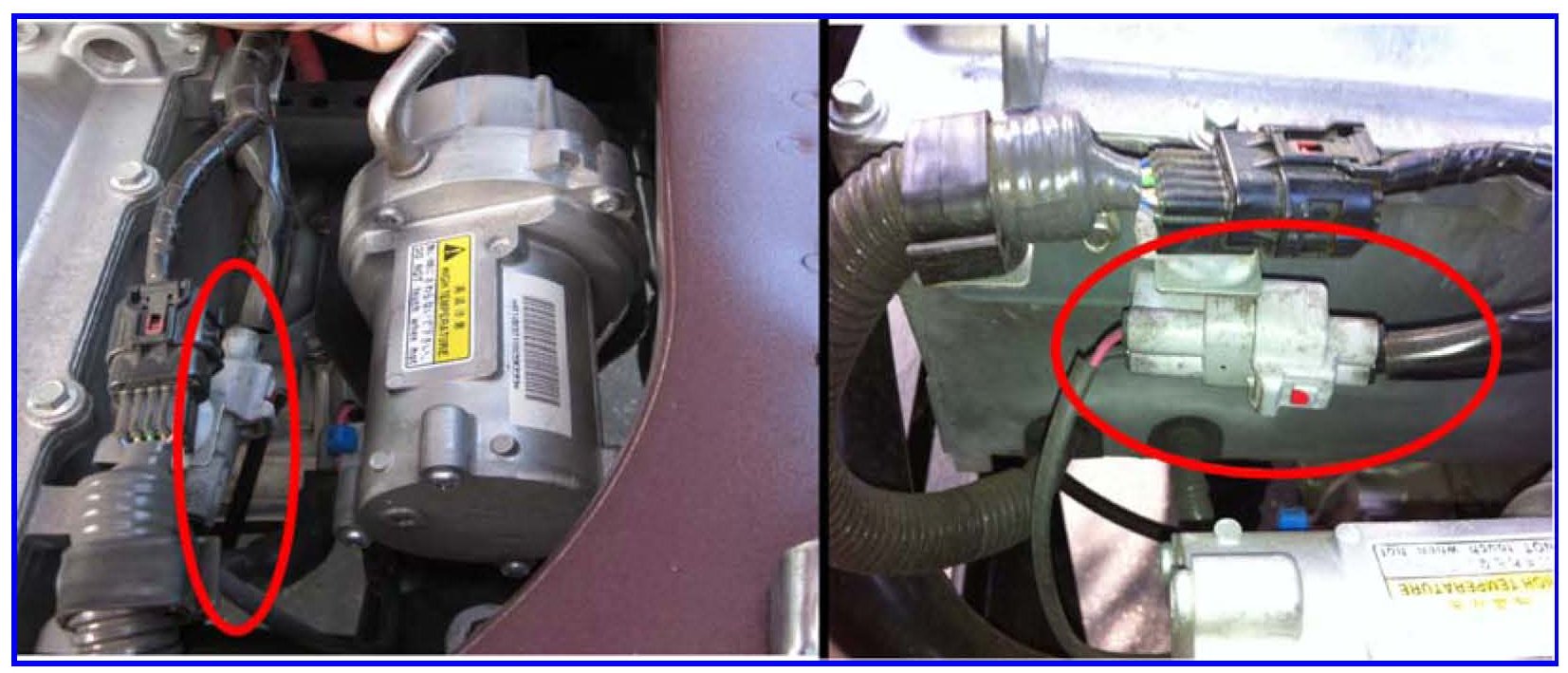

5. Disconnect the vacuum pump electrical connector.

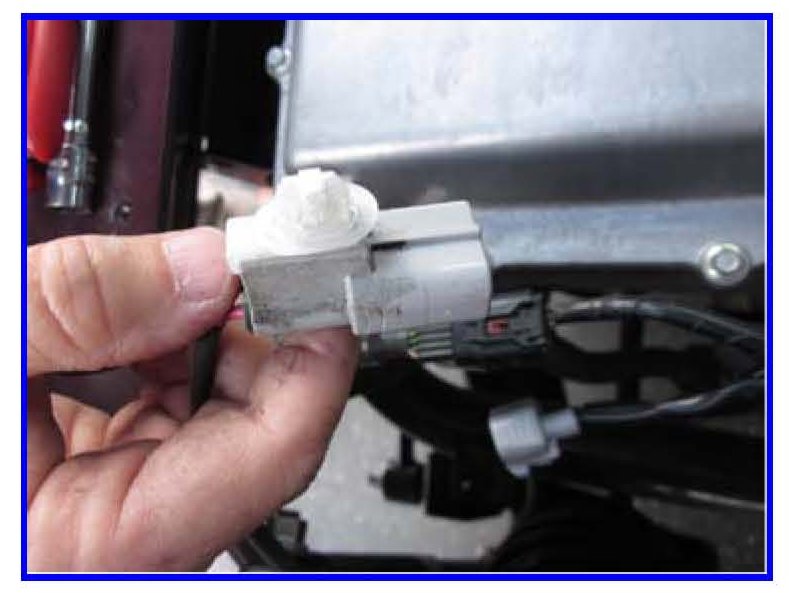

6. Unclip the vacuum pump electrical connector mount from the vehicle's body.

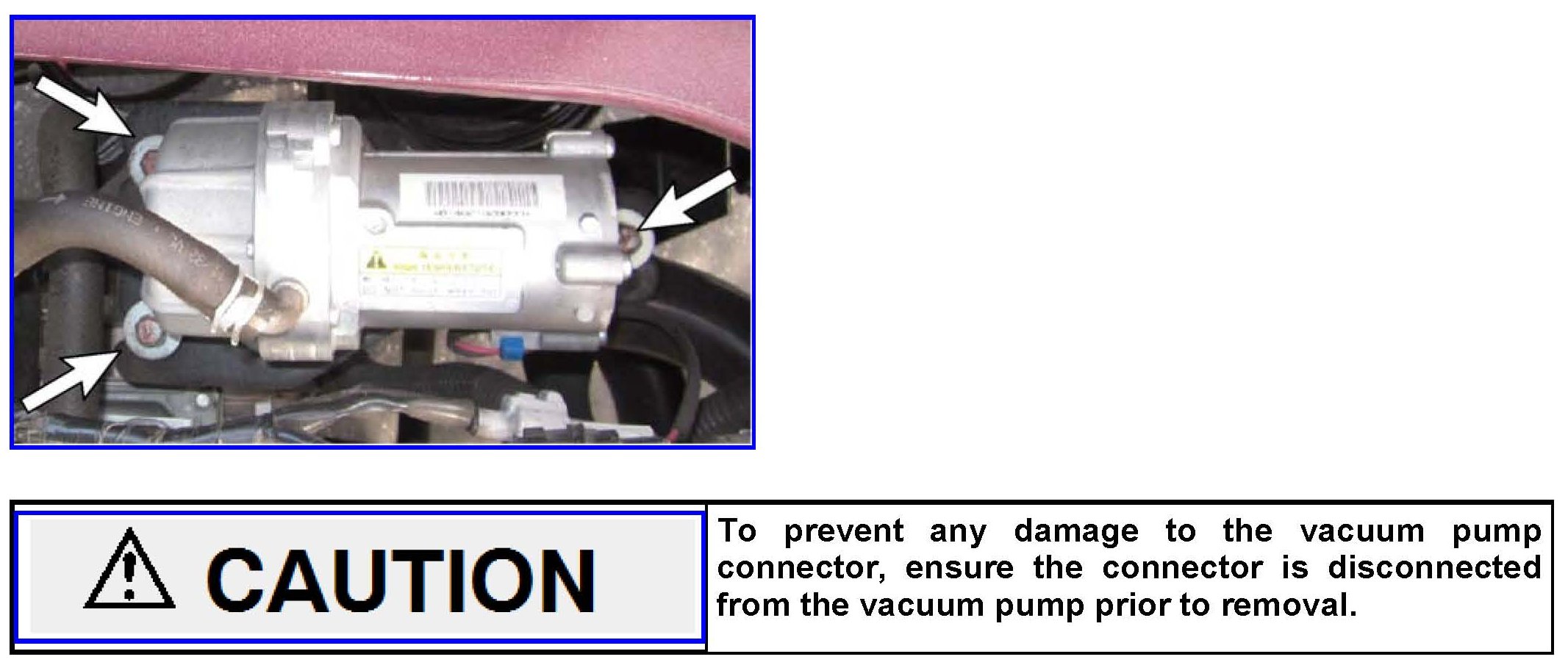

7. Remove three 12mm bolts to disconnect the vacuum pump assembly.

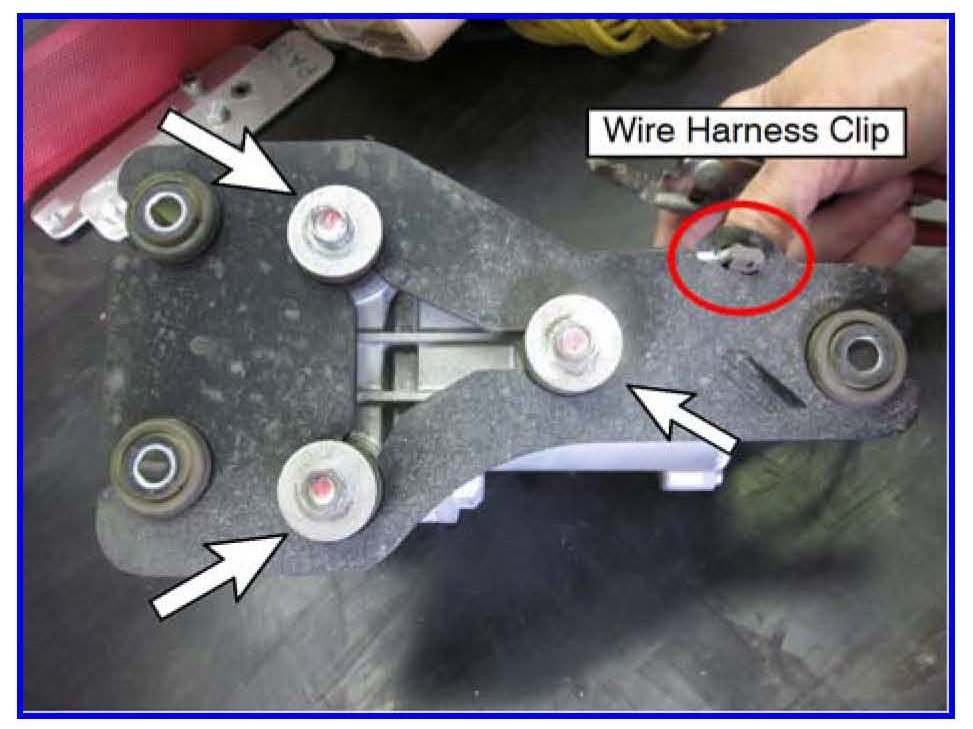

8. Remove three 10mm bolts and unclip the wire harness to disconnect the vacuum pump from its bracket.

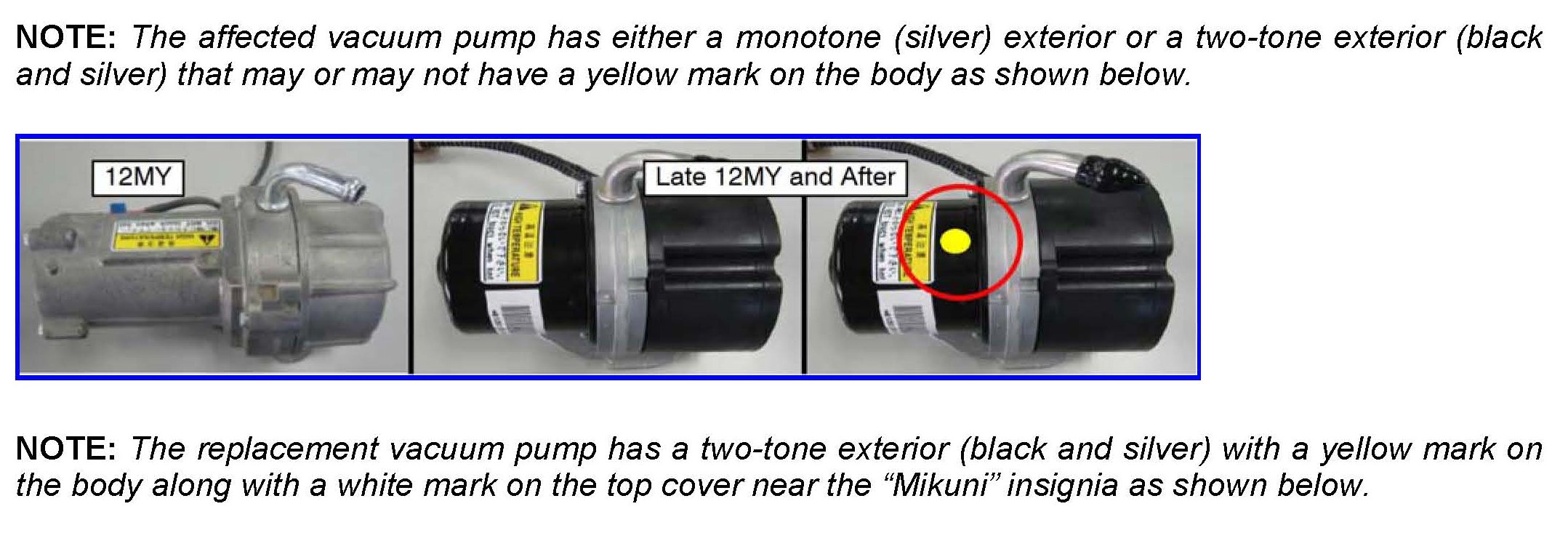

9. Replace the vacuum pump with the new unit.
10. Reattach the wire harness clip to the bracket first and then reinstall the three 10mm bolts. Doing so will ensure the vacuum pump is installed correctly to the bracket.
NOTE:
Use hand tools only. Torque specifications is 44 +/- 8 in-lb (5 +/- 1 N-m).
11. Secure the vacuum pump assembly to the vehicle by reinstalling the three 12mm bolts.
NOTE:
Use hand tools only. Torque specifications is 84 +/- 30 in-lb (9.5 +/- 3.5 N-m).
12. Clip the vacuum pump connector mount to the body of the vehicle.
13. Reconnect the vacuum pump connector.
<14. Reinstall the vacuum hose according to the location noted in step 4.
<15. Reinstall the vacuum hose clamp according the the location noted in step 3.
16. Close the power unit inspection lid and reinstall the four wing nuts. Replace the rear access cover and close the liftgate. Set the rear passenger seatbacks to their original position.
17. Remove the electrical tape and reconnect the negative (-) terminal of the 12V battery. Reinstall the battery cover.
NOTE:
Use hand tools only. Torque specifications for the negative (-) terminal is 44 +/- 8 in-lb (5 +/- 1 N-m). Torque specifications for the battery cover is 35 +/- 8 in-lb (4 +/- 1 N-m).

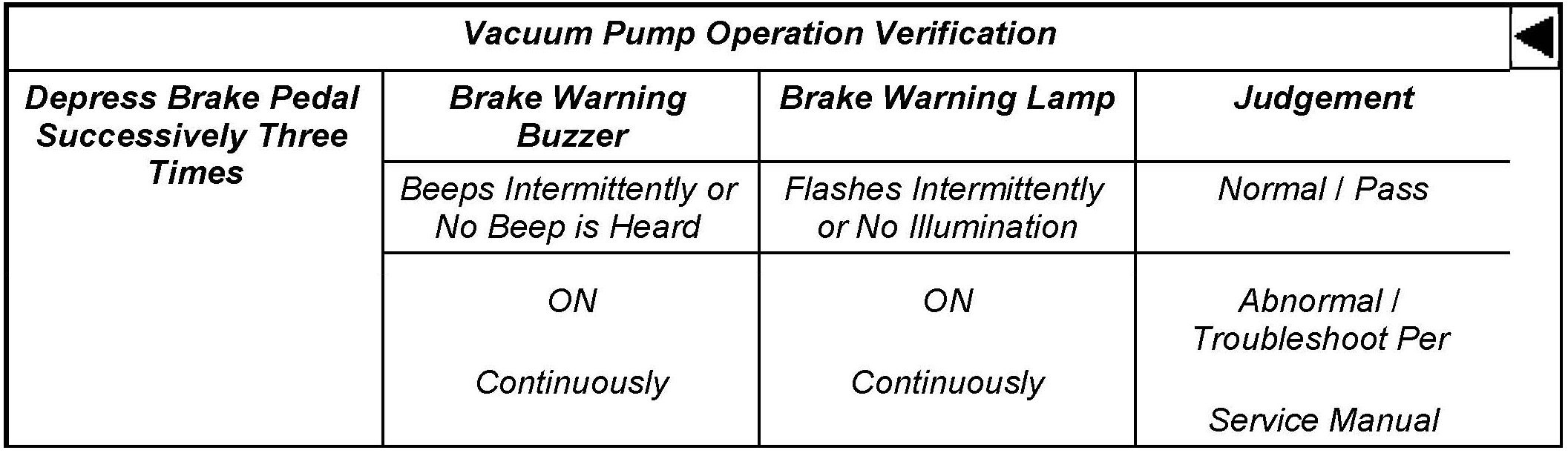

<18. Turn the electric motor switch to "ON". Release the parking brake and confirm the "READY" light is on. With the gear selector in "P" (Park), fully depress the brake pedal (as you normally would when bringing a moving vehicle to a complete stop) three times. Refer to the chart shown to verify if vacuum pump was successfully installed.
19. Fully charge the i-MiEV Main drive lithium-ion battery. If applicable set the clock and radio station presets before returning the vehicle to the customer.
PARTS INFORMATION

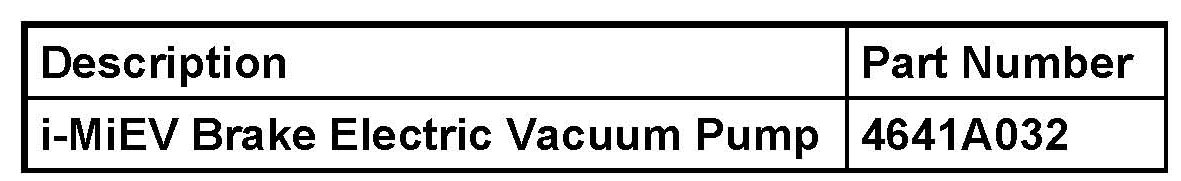

Use the genuine Mitsubishi Part listed:
Certified i-MiEV dealers will automatically receive an initial quantity of parts to complete the recall on in-stock dealer units, shipped with stock orders the week of February 18, 2013. Certified i-MiEV dealers are requested to check their Open Campaign List on the MDL and contact customers of affected vehicles to schedule an appointment to have the recall completed. Once the customer appointment is confirmed, the dealer must contact their facing PDC with the corresponding VIN information and an order will be placed. Please refer to Parts Bulletin 35-IM-01-13 for additional information.

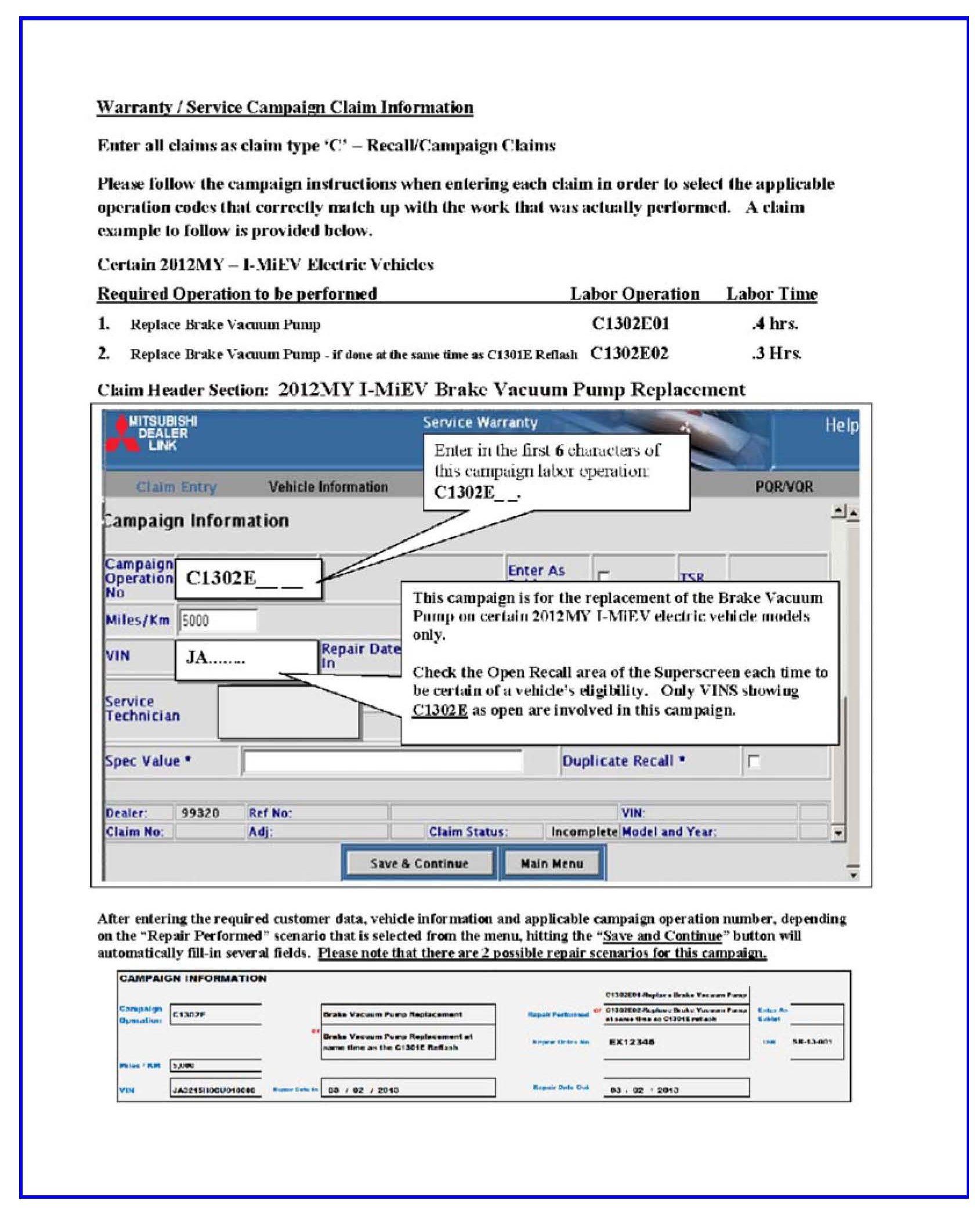

Warranty / Service Campaign Claim Information
Campaign Claim Example
