Lighting - Corrected Interior Light Delay Time

No: TSB-12-54-013
DATE: September, 2012
MODEL: 2012 i-MiEV

SUBJECT:
INTERIOR LIGHT DELAY TIME - SERVICE MANUAL

[TSB Revision: TSB-12-54-013]

PURPOSE

The initial customization settings for the interior light delay time is incorrect in the service manual. This TSB provides the updated information.

AFFECTED VEHICLES

2012 i-MiEV

AFFECTED SERVICE MANUALS

2012 i-MiEV: Group 54A-Chassis Electrical - On-vehicle Service - ETACS - Customization Function





Replace the existing information in the 2012 i-MiEV service manuals with the following:

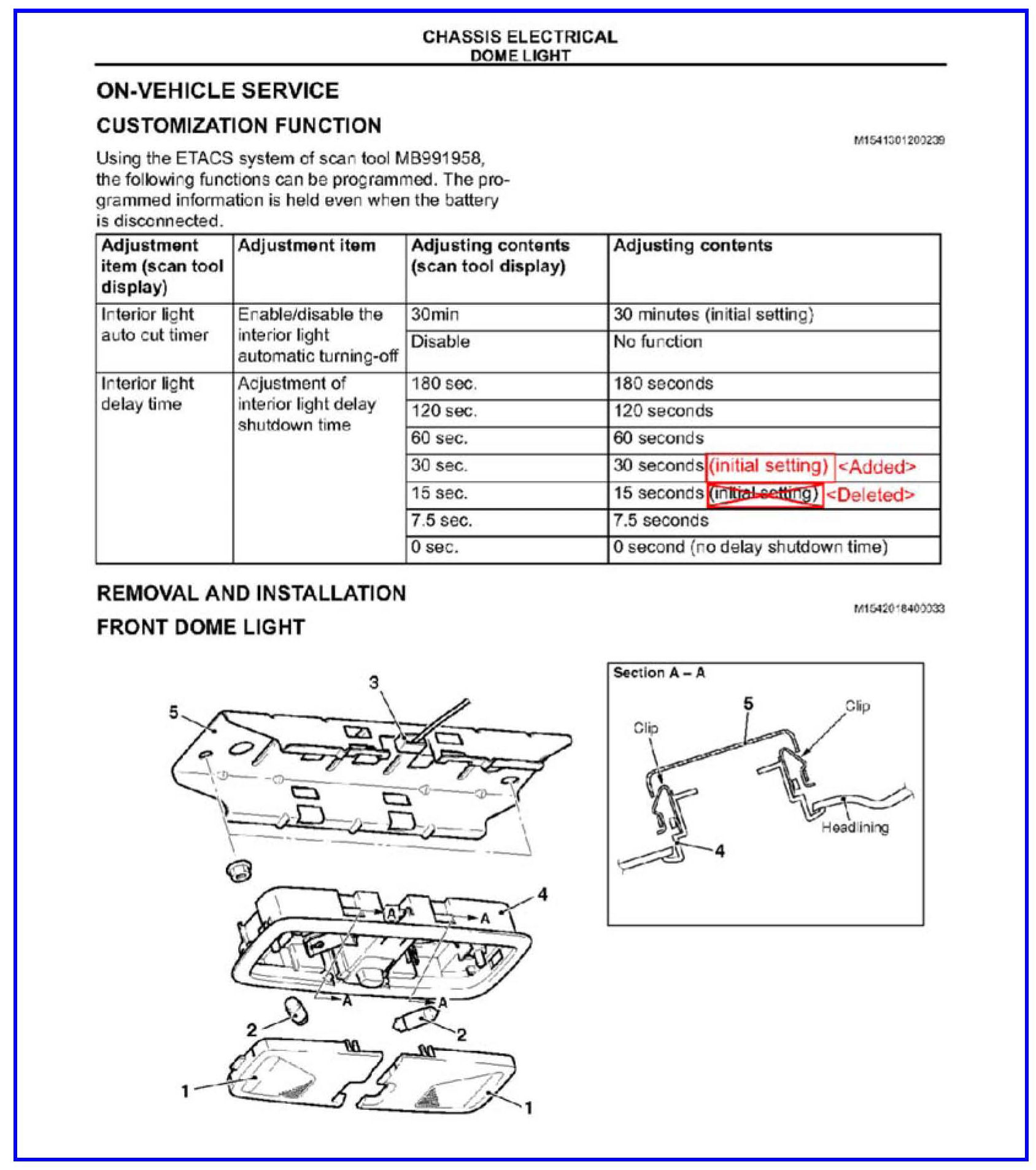

2012 i-MiEV Service Manual:
Group 54 - Chassis Electrical - Dome Light
