Steering - Revised Steering Gear Removal Procedure
No: TSB-12-37-002DATE: April, 2012
MODEL: 2012 i-MiEV
SUBJECT:
POWER STEERING GEARBOX AND LINKAGE -
SERVICE MANUAL REVISION
[TSB Revision: TSB-12-37-002]
PURPOSE
Due to a change in the A/C compressor assembly, changes to the steering gearbox Removal Service Point are necessary.
AFFECTED VEHICLES
2012 i-MiEV from the end of March, 2012
AFFECTED SERVICE MANUALS
2012 i-MiEV Group 37 - Power Steering

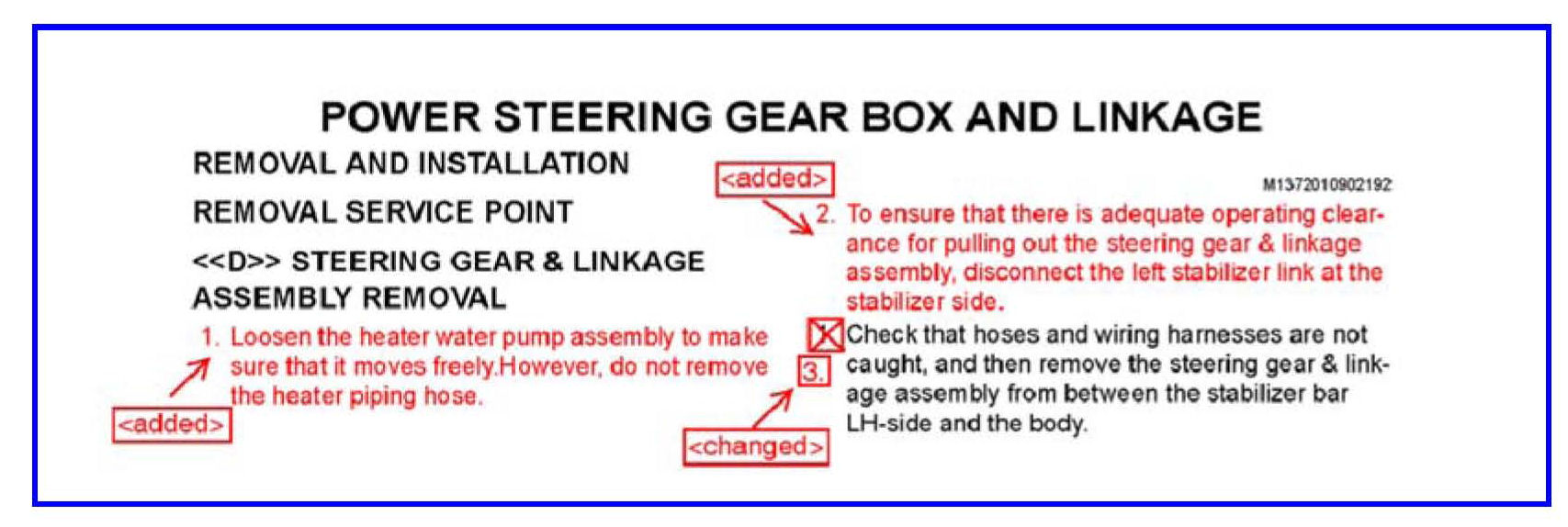

Insert the following information for vehicles built from the end of March, 2012 into the 2012 iMiEV Service Manual section 37 Power Steering - Power Steering Gear and Linkage
