Campaign - Cell Monitoring Unit Reprogramming
No: SC-12-002DATE: September, 2012
MODEL: 2012 i-MiEV
SUBJECT:
i-MiEV CMU REPROGRAMMING - SERVICE
CAMPAIGN
PURPOSE
The current internal software programming for the Cell Monitoring Unit (CMU) may falsely detect a failure of the Main Drive Lithium-ion Battery, which may result in illumination of the warning light and reduce battery output. This bulletin describes the procedures necessary to reprogram the CMU with the latest software to prevent this condition from occurring.
AFFECTED VEHICLES
2012 i-MiEV built before 7/26/2012
CUSTOMER NOTIFICATIONS
A letter will be sent to all owners of affected vehicles requesting them to bring their vehicle to a local certified Mitsubishi i-MiEV dealer to have their CMU updated to the latest software. A copy of the customer notification letter appears at the end of this bulletin.
REQUIRED OPERATIONS
Before starting this campaign procedure, CHECK THE WARRANTY SUPERSCREEN to verify if the vehicle is an affected VIN for this campaign and this campaign procedure has not already been completed.
Repairs must be completed by a certified i-MiEV technician. Please ensure the Main Drive battery's charge is properly maintained while the vehicle is not being serviced.
IMPORTANT
Please ensure the Main Drive battery is fully charged prior to vehicle delivery. If the vehicle cannot be immediately remedied, the Main Drive battery should be charged while the vehicle is waiting for the update. This will limit customer inconvenience and maximize customer satisfaction.
SPECIAL EQUIPMENT
The following equipment is needed to reprogram the CMU:
^ VCI (Vehicle Communication Interface) - MB991824.
^ MEDIC Laptop computer with A/C power adapter - 520924, or 547708.
^ MUT-III main harness 'A' (blue connector at the DLC end) - MB991910.
^ USB 2.0 cable - MB991827.
^ Reprogramming Database N12061 or higher
^ MEDIC 3 update at 140 or higher.
^ Standalone MUT-III laptop with Reprogramming CD 1/12 installed.
REPAIR PROCEDURE
For MEDIC 3 users only: (Stand alone MUT-III users go to step 5)

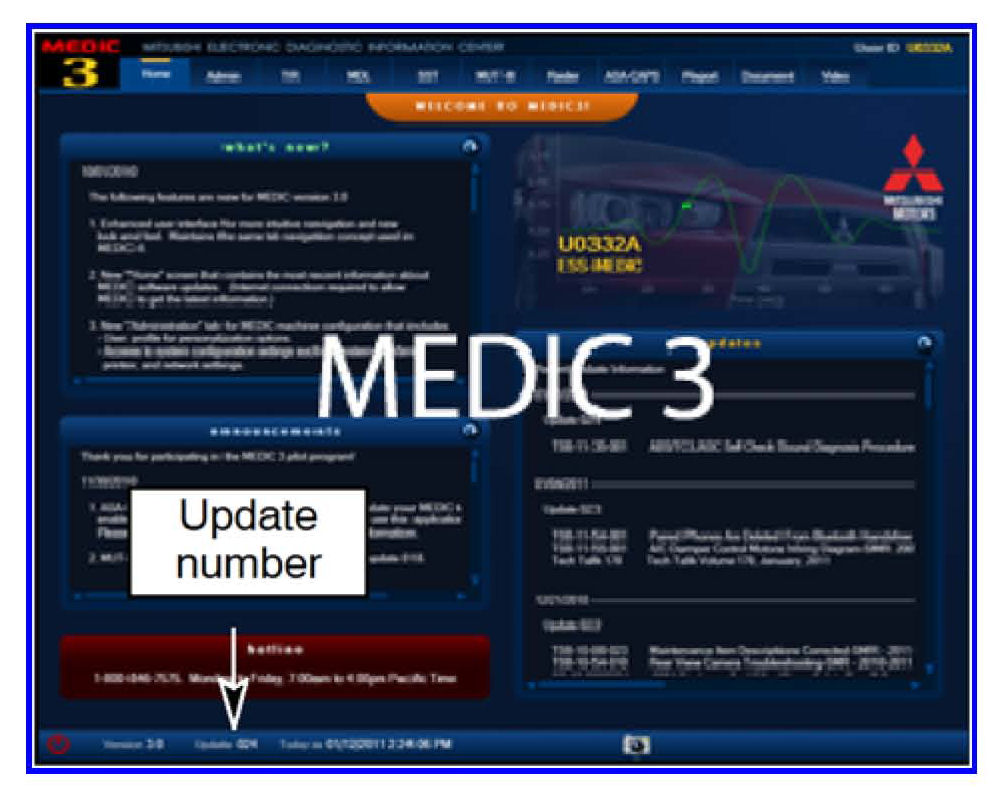

1. Verify the MEDIC 3 is at update 140 or
higher.
If your MEDIC 3 update is at least 140, continue with the REPROGRAMMING PROCEDURE below.
If your MEDIC 3 update is below 140,
update your MEDIC 3 as follows.

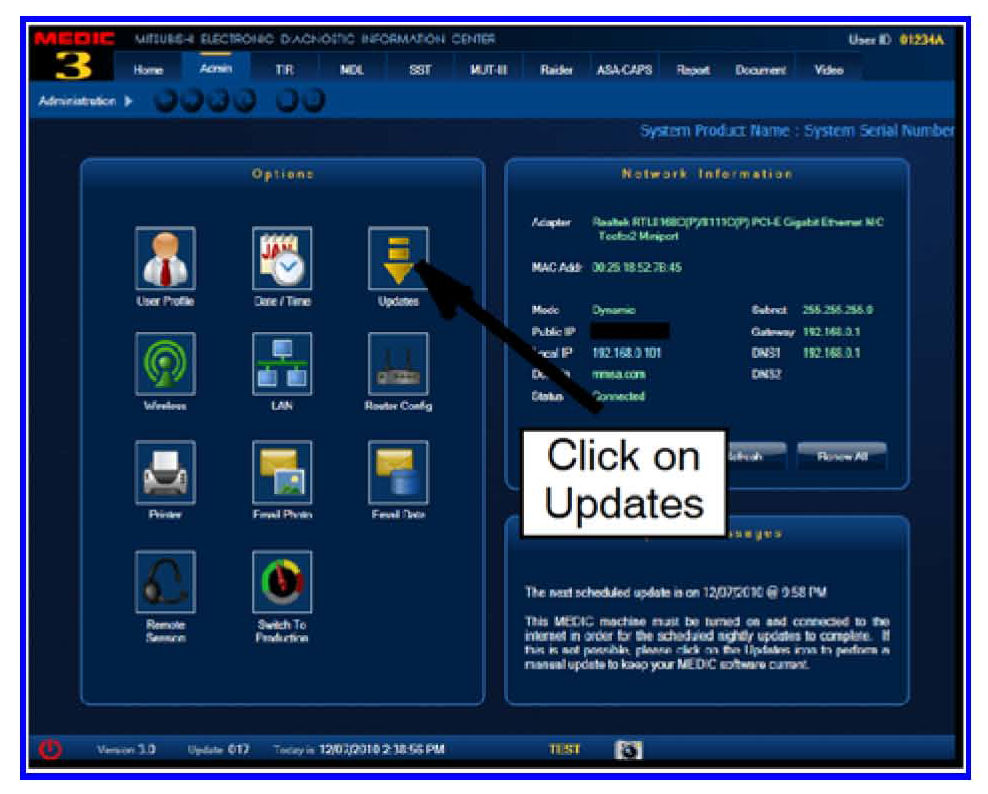

2. Select the MEDIC 3 "Admin" tab. Click on
"Updates."

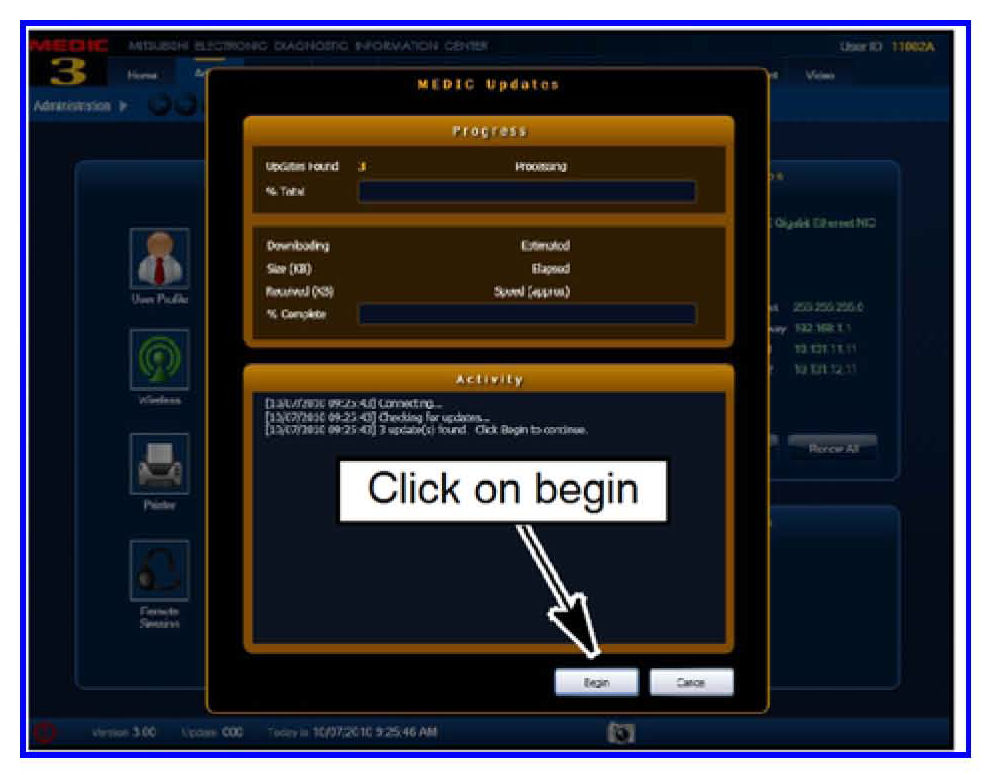

3. If the MEDIC Updates screen advises updates are available, click the "Begin" button.
4. Once MEDIC 3 is at update 140 or higher, continue to the REPROGRAMMING PROCEDURE below.
5. Standalone MUT-III Scan Tool Viewer (STV) ONLY: (MEDIC 3 USERS go to the REPROGRAMMING PROCEDURE below). Verify that your MUT-III has the most
current version of the reprogramming database:
a. From the MUT-III Main Page:
^ Select "Special Function"
^ Select "ECU Reprogramming"
^ Select "Database File Display-CAN"

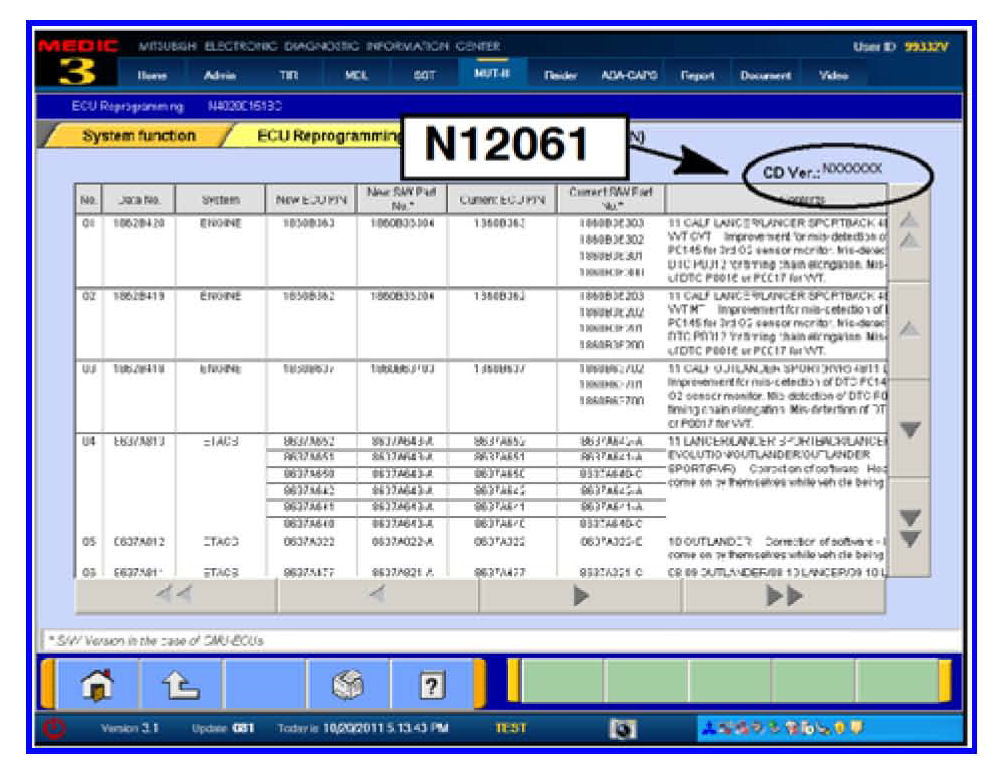

^ Confirm the database number displayed at the top right of the chart is N12061.
1. If the database number displayed on your MUT-III is N12061 or greater, continue to the Reprogramming Procedure below.
2. If the database number displayed on your MUT-III is lower than N12061, locate the Yellow MUT-III Reflash CD 01/12 and follow
the instructions on the CD label to update your MUT-III.
REPROGRAMMING PROCEDURE
IN ORDER TO REPROGRAM THE CMU, A BATTERY CHARGER (MEDIUM OR LOW SETTING)
MUST BE CONNECTED TO THE VEHICLE'S 12V AUXILIARY BATTERY DURING THE
REPROGRAMMING PROCEDURE. DO NOT ALLOW THE BATTERY CHARGER TO TIME OUT.
CONNECT THE BATTERY CHARGER WHEN INSTRUCTED.
NOTE:
VCI Stand-alone reprogramming is not available for this procedure. The laptop and the VCI must remain connected for the entire procedure.
1. With the vehicle parked, set the parking brake and open the hood.

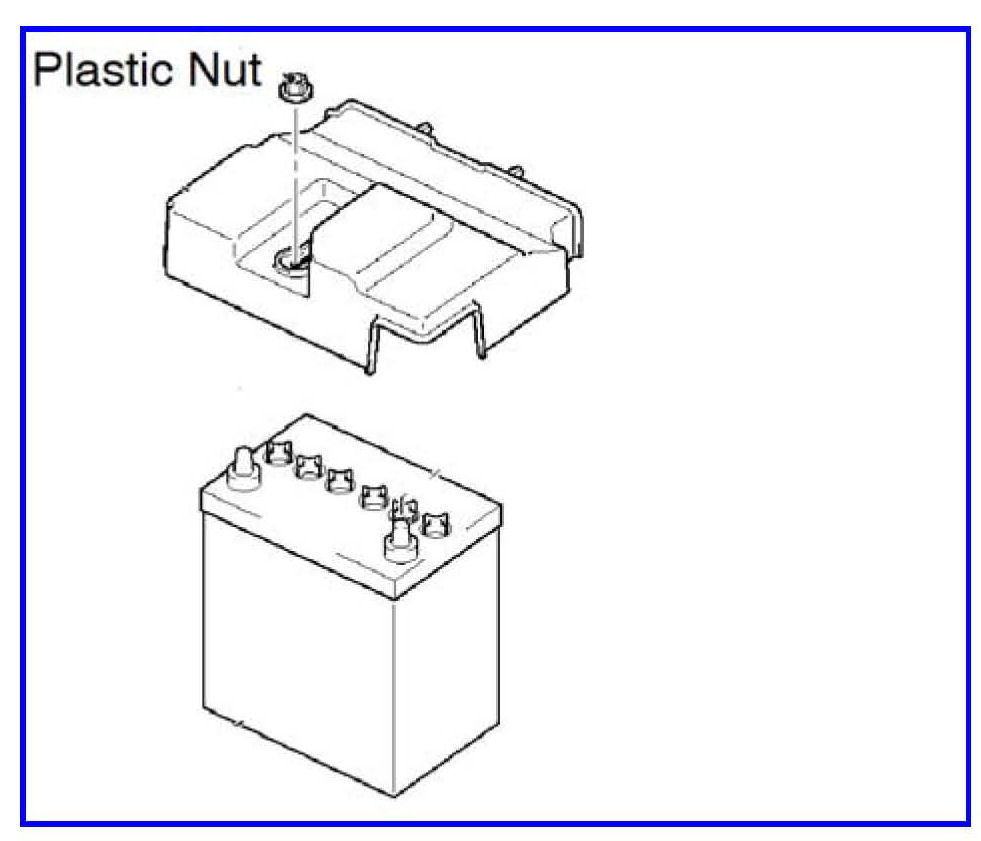

2. Remove the 12V auxiliary battery cover. Unscrew the plastic nut (pull up while turning).
3. Attach the battery charger (medium or low setting) to the 12V auxiliary battery.
NOTE:
Ensure battery charger does not time out during this procedure.
NOTE:

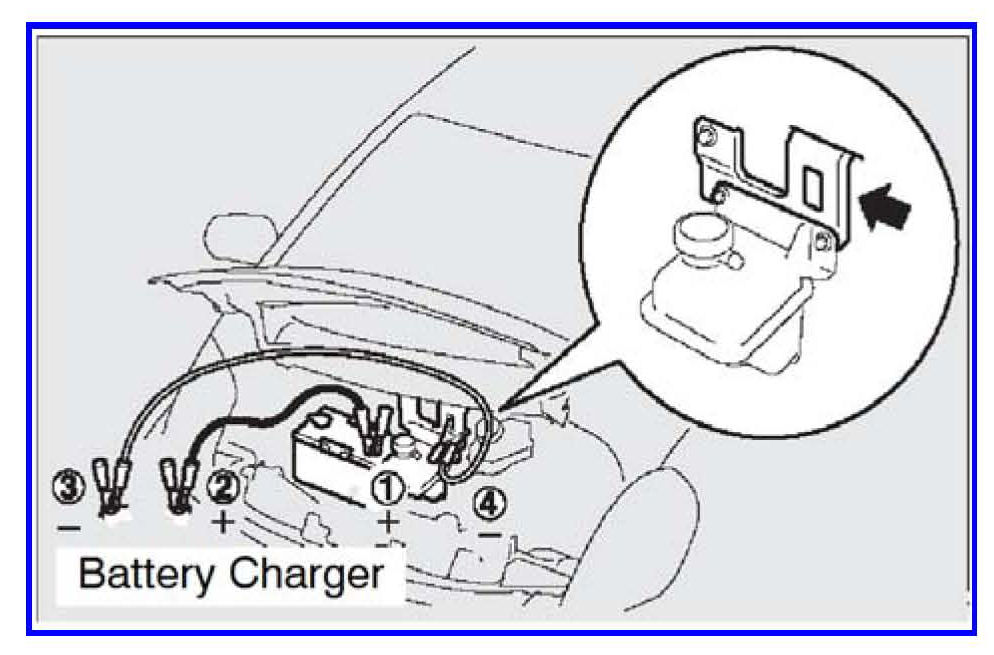

Connect the positive (+) terminal of the 12V auxiliary battery (1) to the positive (+) battery charger cable (2). Connect the negative (-) battery charger cable (3) to the designated ground location (4).

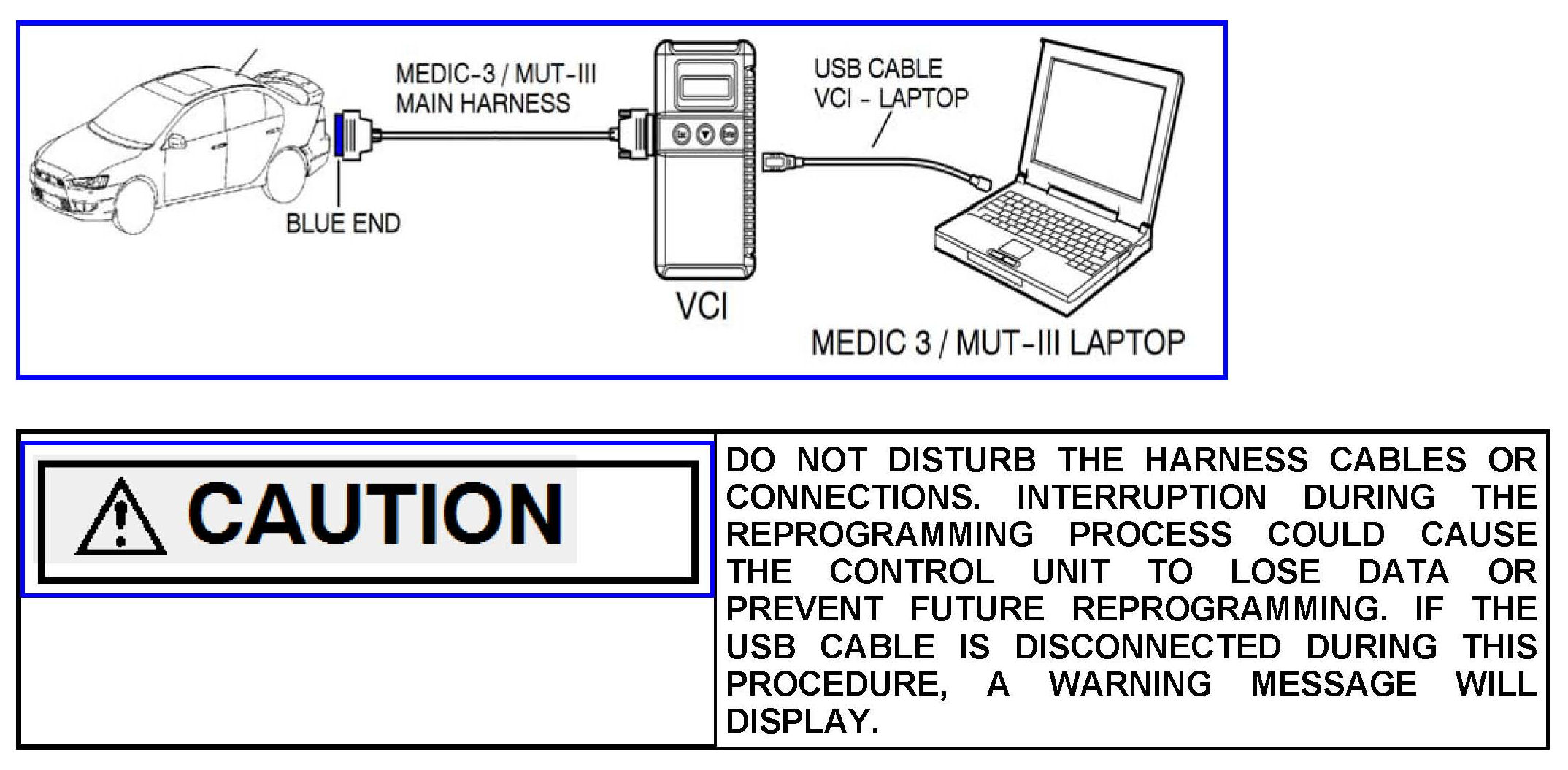

4. Connect the equipment as follows:
^ Turn the laptop computer on. If you're running on battery power and the charge indicator in the lower right hand corner of the screen does not show a full charge, it is recommended that either the laptop battery be charged prior to beginning, or that reprogramming be completed with the A/C power adaptor connected to the laptop.
^ Connect the USB cable to the VCI.
^ When the laptop displays the MUT-III main screen, connect the USB cable to the laptop.
^ Connect the MUT-III main harness with the blue DLC connection to the VCI.
^ Connect the blue connector of the MUT-III main harness to the vehicle's data link connector.
^ Turn the VCI power switch ON. Verify that the indicator lamp in the upper right corner of the screen is green.
5. Turn the electric motor switch to the ON position.
NOTE:
Ensure all accessories are off (e.g. lights, heating and AC system, audio/navi unit, etc).

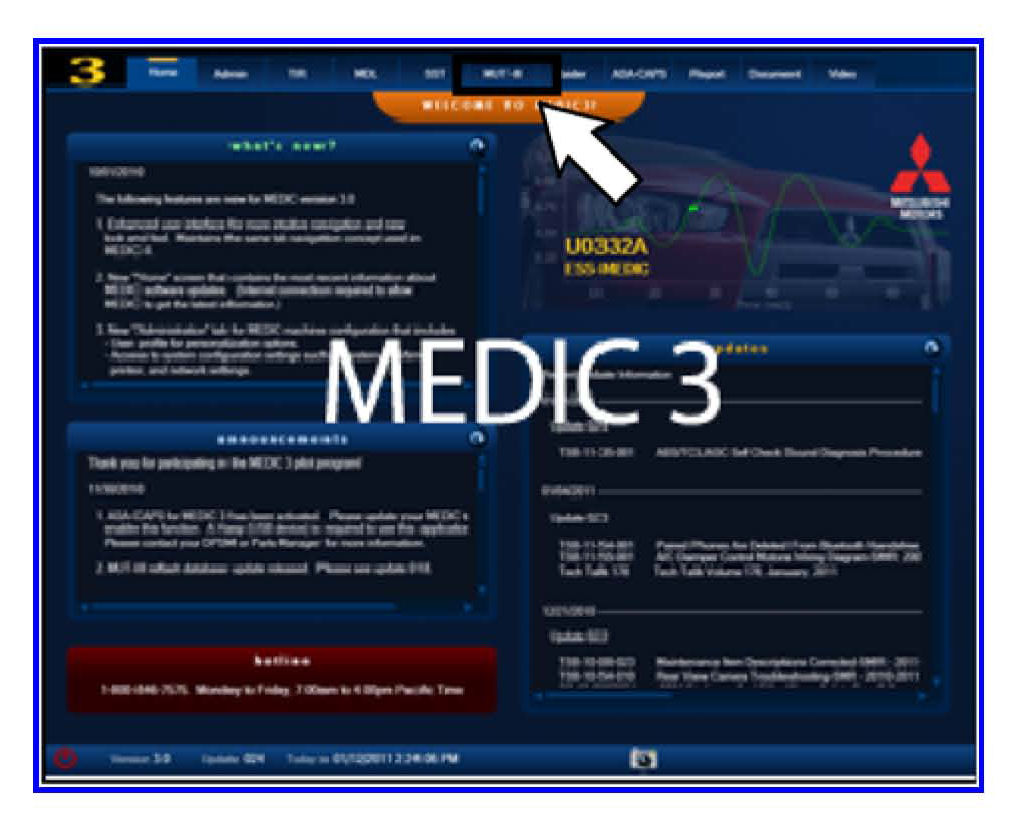

6. From the MEDIC main page,
a. Click on MUT-III.

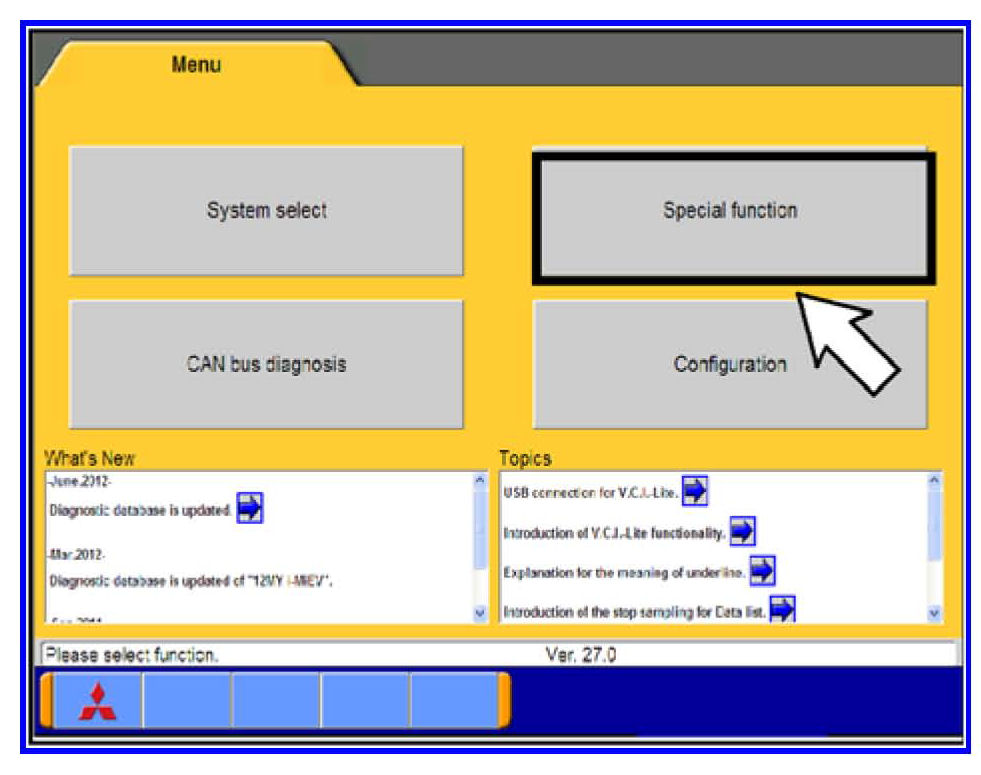

b. Select "Special Function."
c. Select "All DTCs."

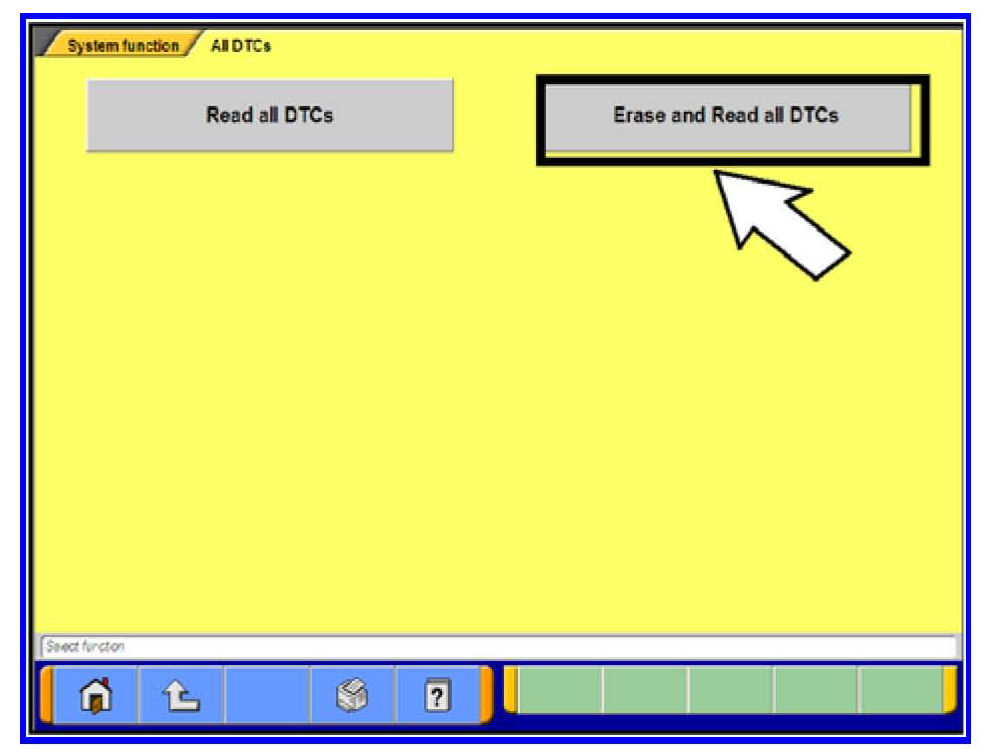

d. Select "Read all DTCs."

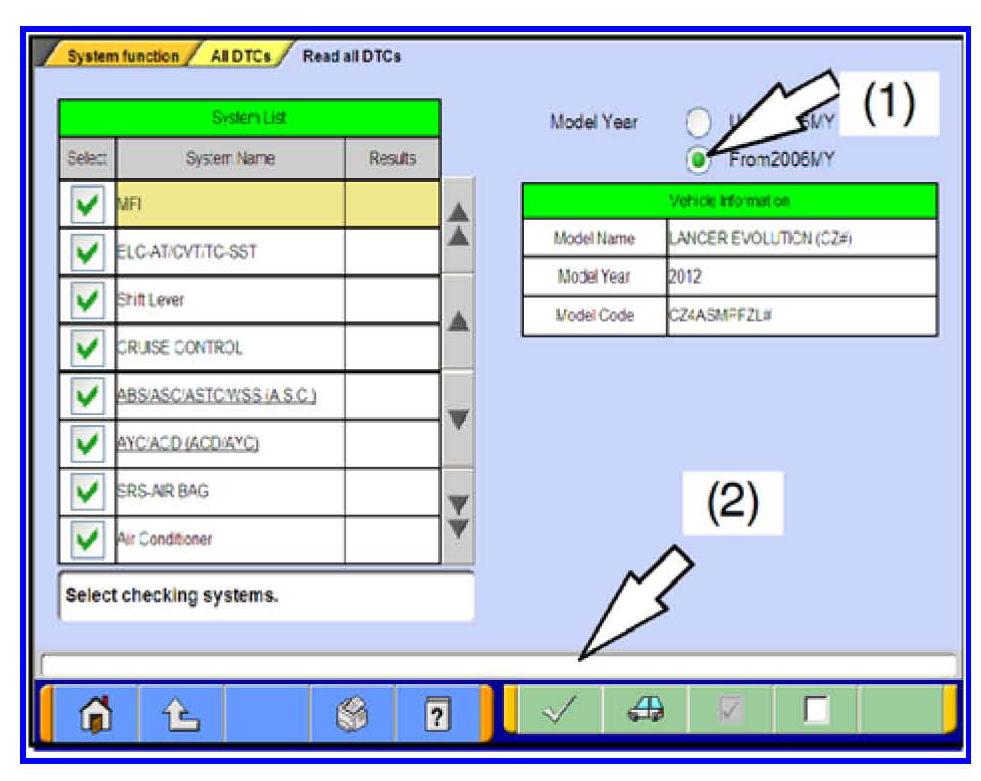

e. Make sure the "From 2006MY" field is
selected (1). Click on the car icon at the
bottom of the page to select your vehicle
(2).
f. If the VIN listed does not match the vehicle
you are working on, click on the eraser icon
at the bottom of the page (1).
Click on the VIN button (2).

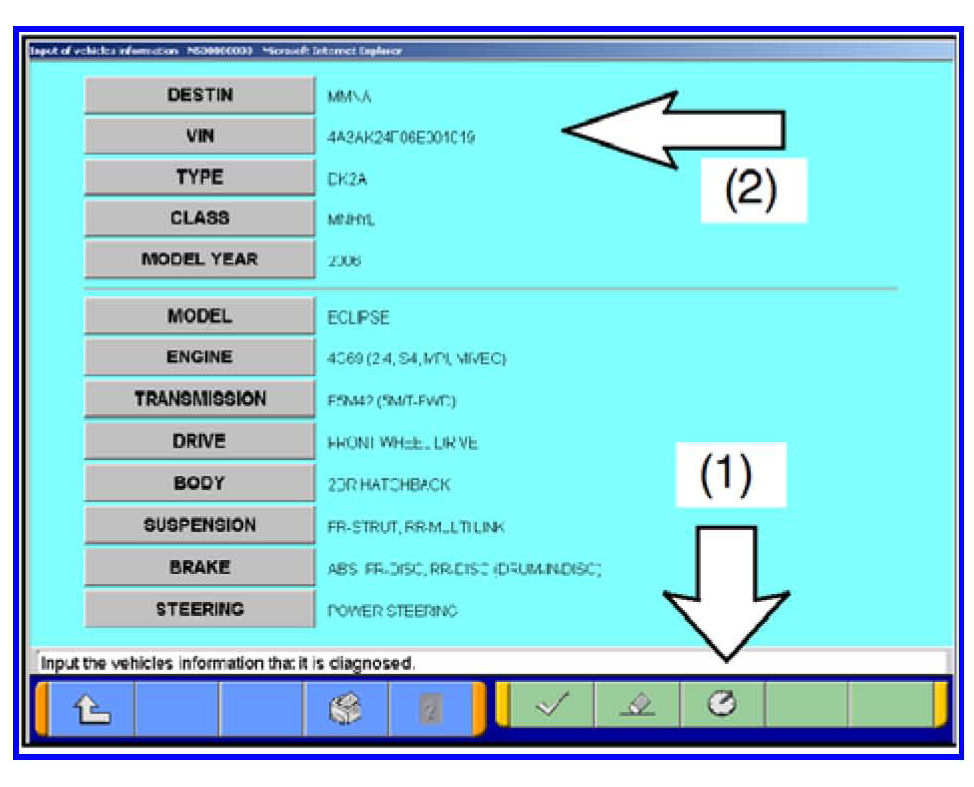

g. Click on the icon in the lower RH corner of
the screen to have the MUT-III automatically
read the VIN (1). If a message appears
saying that the VIN cannot be read
automatically, manually type the 17 digit
VIN into the VIN field (2).
When the VIN is entered correctly, click on
the check mark icon to continue (3).

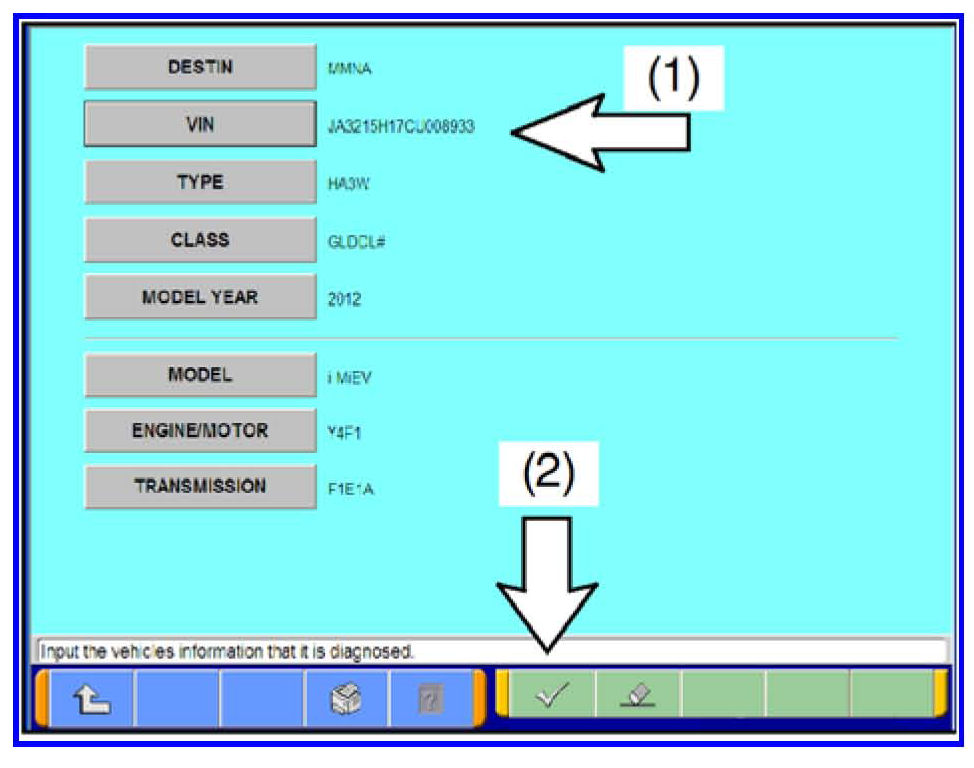

h. Ensure that the VIN entered is correct (1).
Click on the check mark icon to continue
(2).
i. Click on the check mark icon at the bottom
of the page to initiate DTC scan.
Confirm scanning for all DTCs by clicking on
the check mark icon when prompted.
j. When the DTC scan completes, there
should be 4 DTCs displayed with codes
"U1111" and "U1116". This is normal.
Proceed with the reprogramming procedure.
If there are separate DTCs displayed,
trouble shoot the DTC's according to the
service manual before
proceeding.
k. Click the back arrow icon (1) twice to arrive
at the "System Function" screen. Select
"ECU reprogramming" (2).

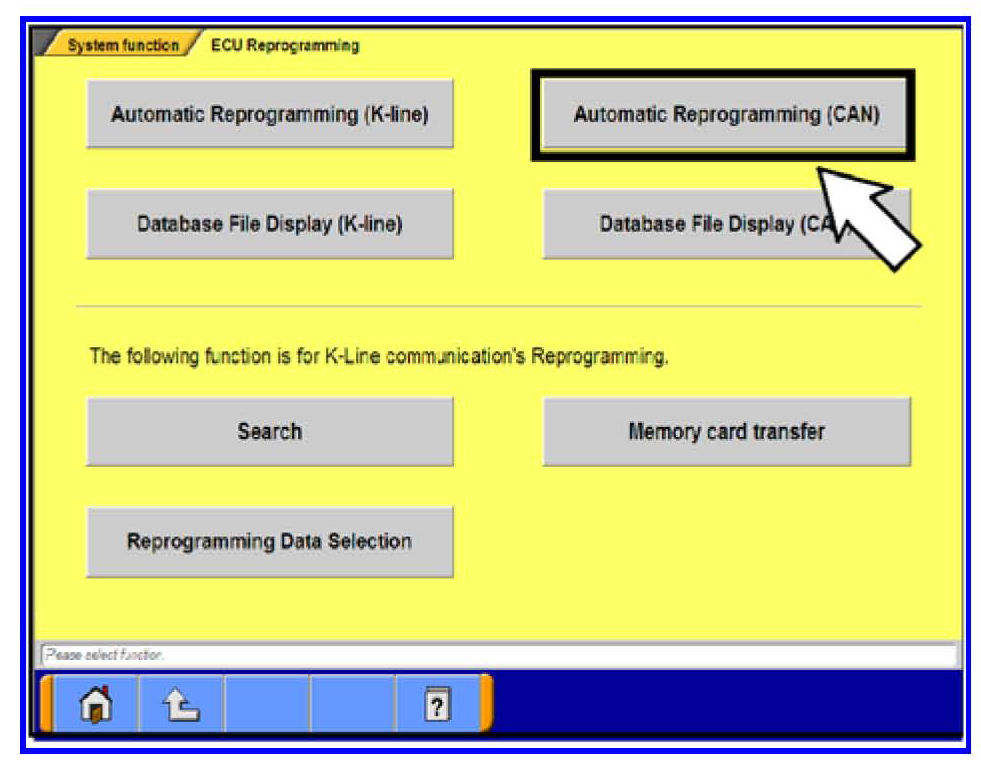

l. Select "Automatic Reprogramming (CAN)".

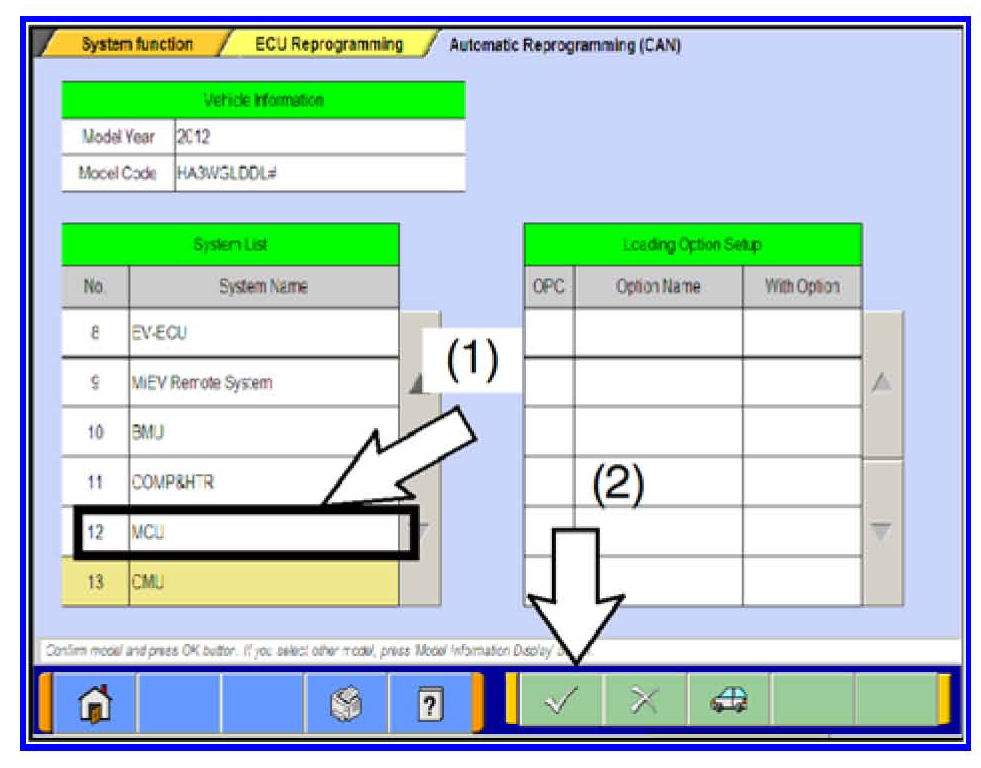

m. In the lower left column labeled "Systems
List", scroll down and select "No. 13 - CMU" (1). Click on the
check mark icon (2) to continue.

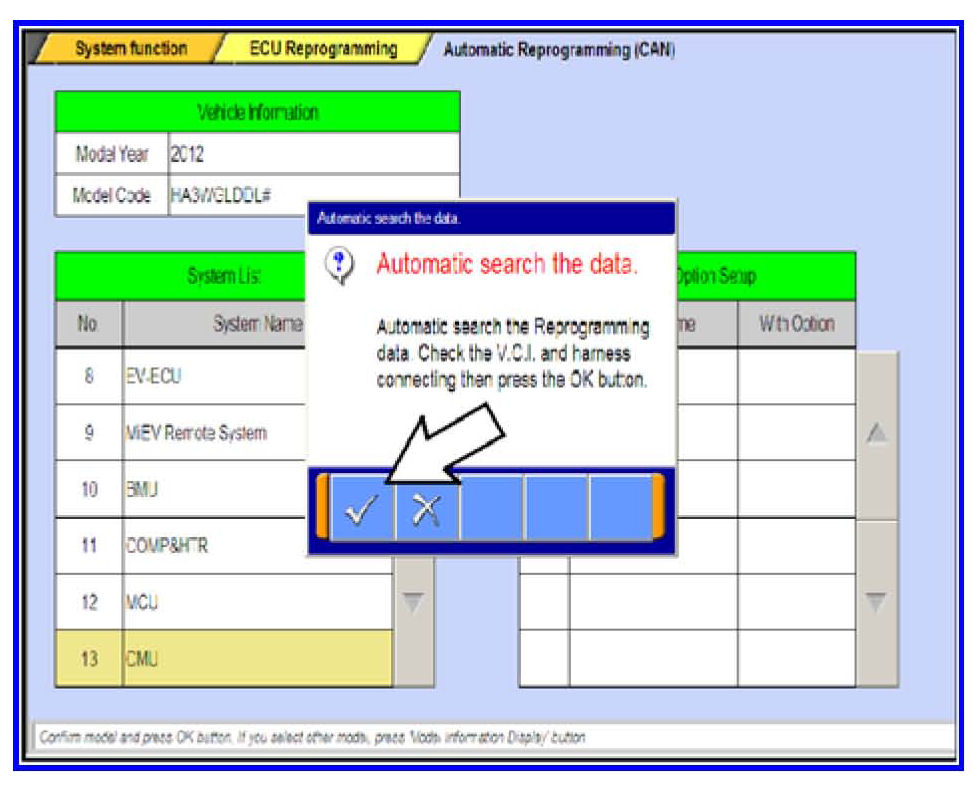

n. A message will advise you that the system
will "Automatic search the data."
Click on the check mark icon to search for
the updated software.

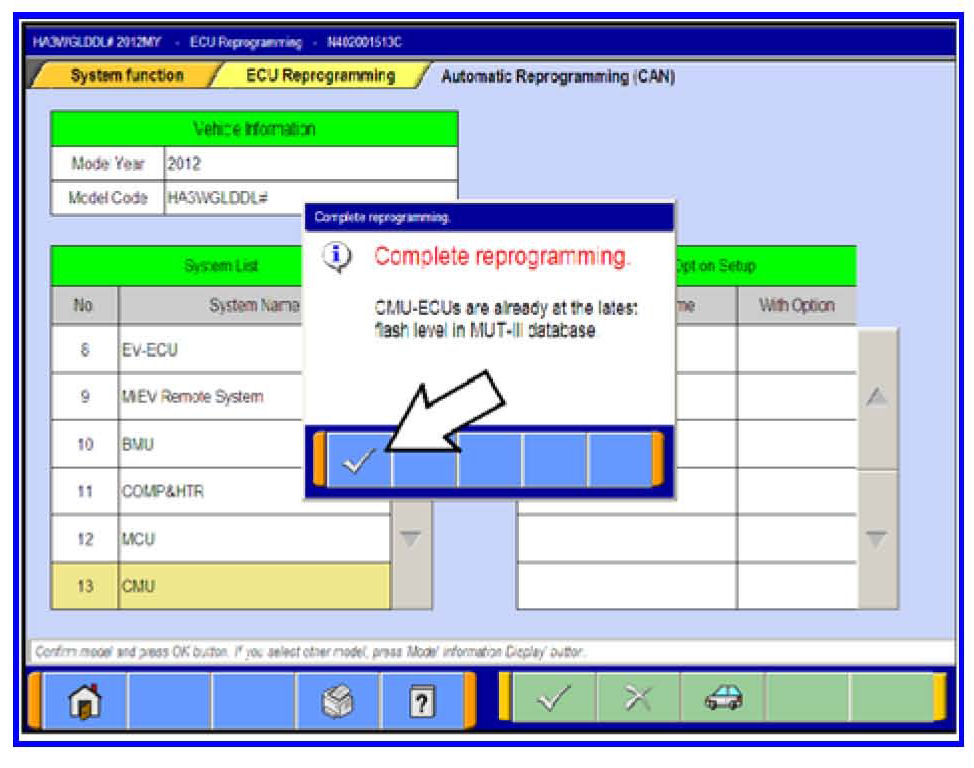

NOTE:
If a "Complete Reprogramming" message is
displayed, the CMU is already reprogrammed for
this concern. If this message displays, do not
continue with this reprogramming procedure. Click
the check mark to clear the window, then click on
the Home icon at the lower left corner of the
screen to return to the System Select main page.
If a "Complete Reprogramming" message does
not appear, continue with this procedure.

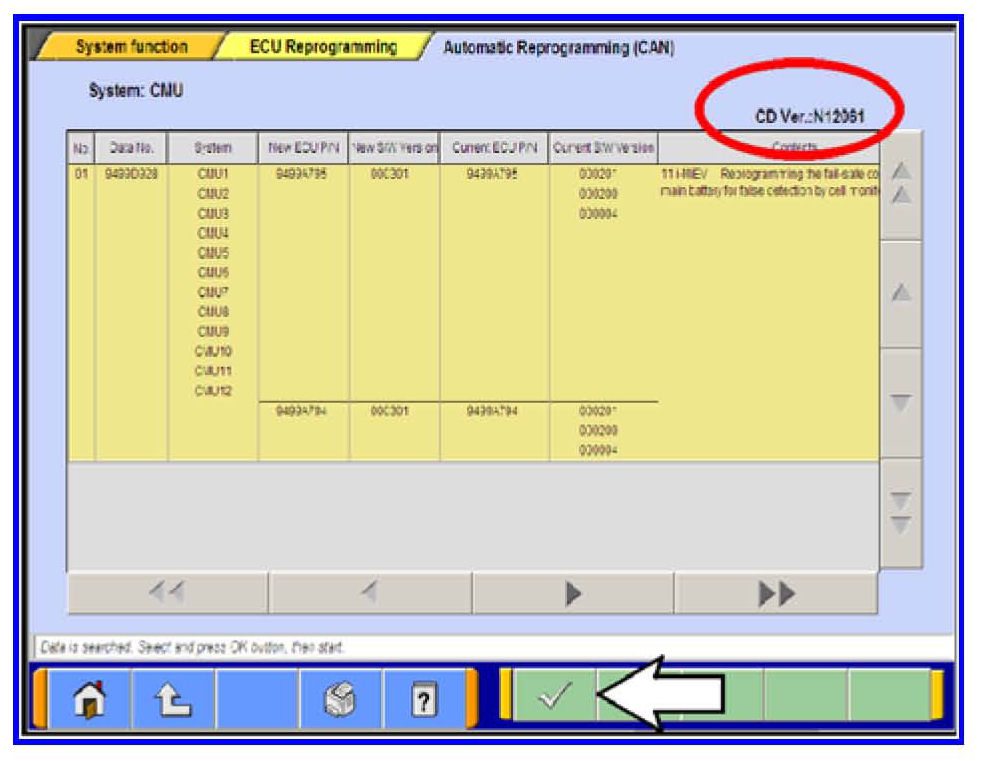

o. The CAN database screen will display.
Confirm the database number at the top
right of the table is N12061 or higher.
Click on the check mark icon to continue.
NOTE:
Although the contents section displays this
reprogramming is for "11 i-MiEV", 2012 i-MiEVs
are compatible with this update.

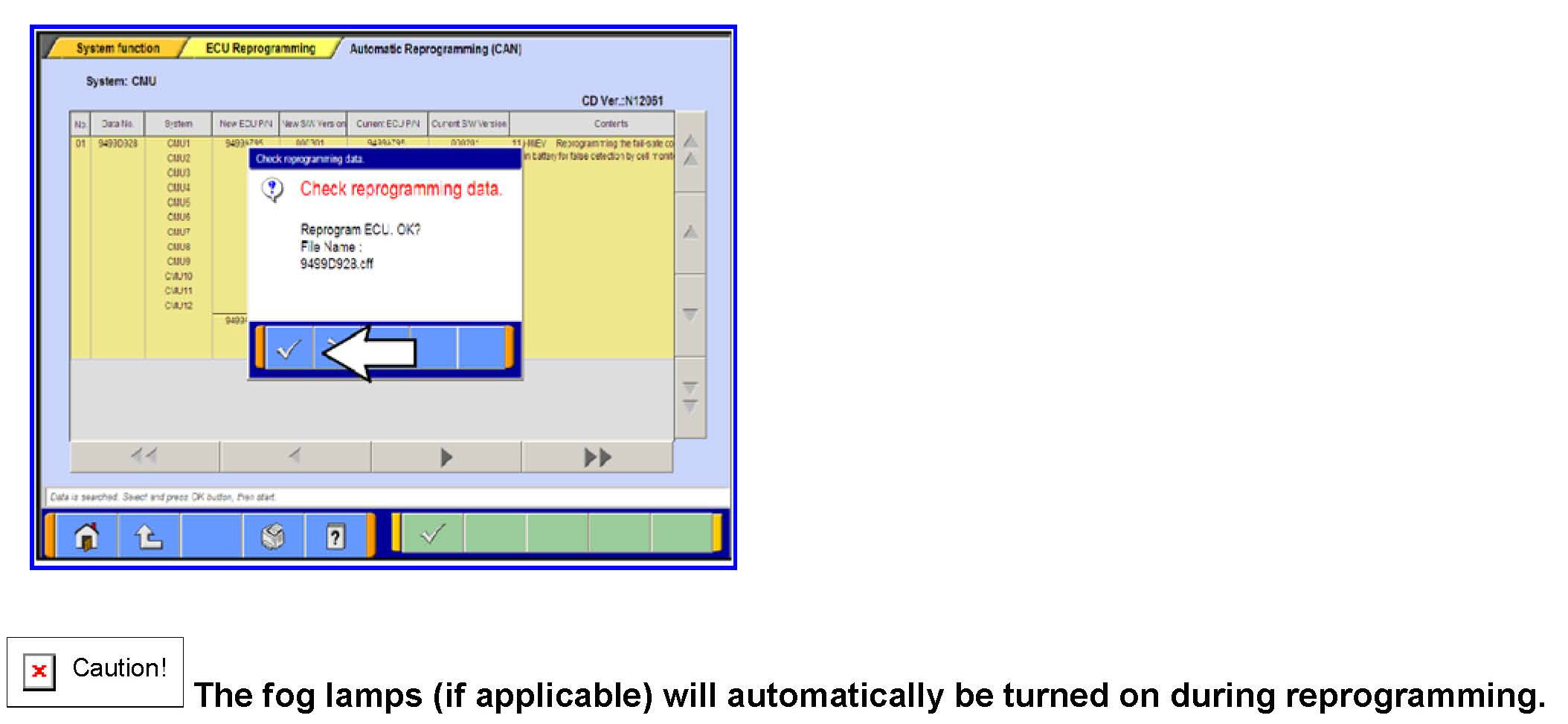

p. Confirm reprogramming by clicking on the
check mark icon when prompted. It may
take up to 15 minutes to complete the
reprogramming.

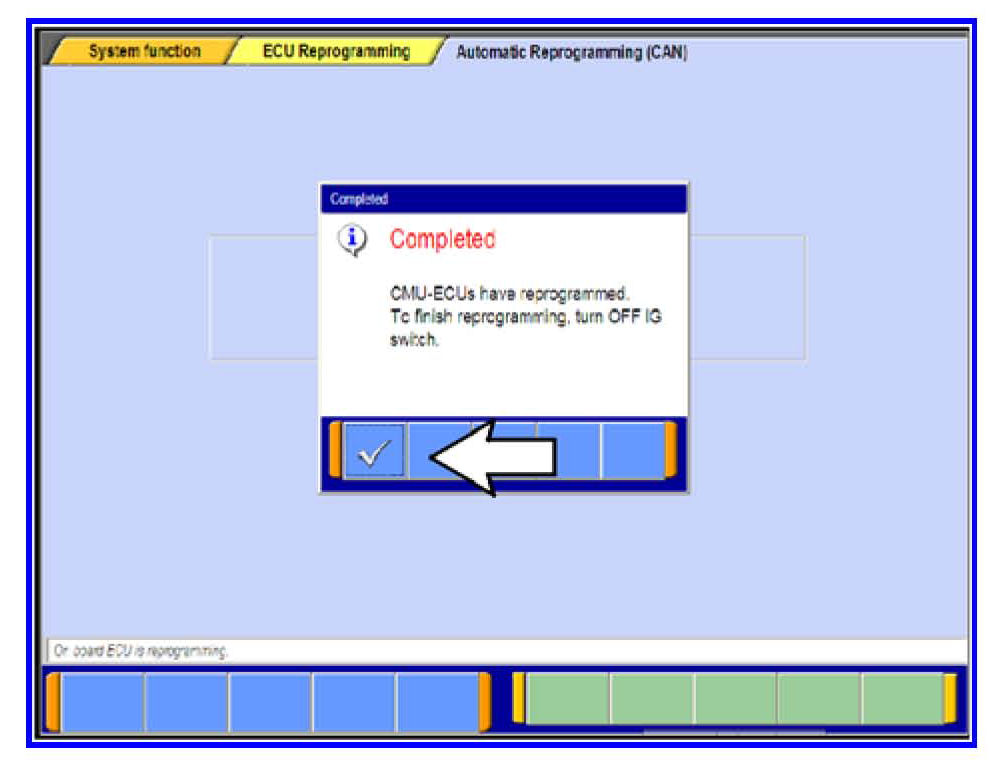

q. Once the reprogramming has completed,
click on the check mark icon to continue.

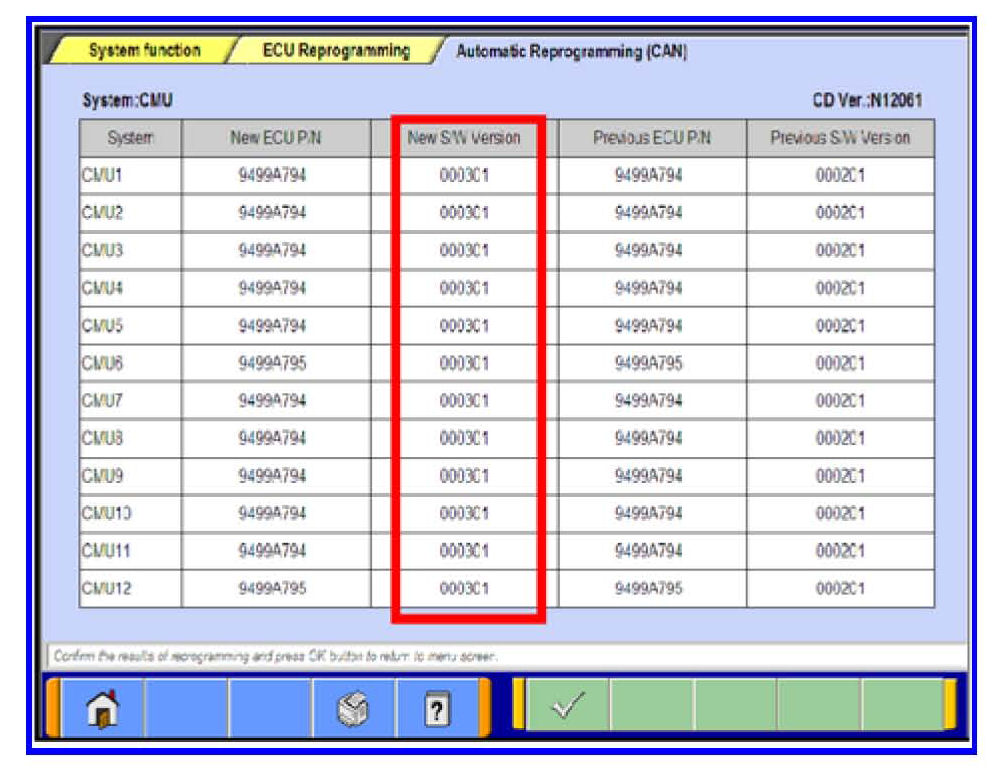

r. Ensure the new software version is
"000301".
^ Turn the electric motor switch to the OFF
position. Wait approximately 10 seconds, and turn
it back ON. Confirm that the "READY" light is
illuminated and check for any warning light. If the
warning light stays on after the self-check, check
for DTCs. Refer to the service manual for
appropriate DTC troubleshooting procedures.
8. Turn OFF the electric motor switch.
Disconnect the MUT-III and the battery
charger.
9. Reinstall the 12V auxiliary battery cover and
plastic nut. Close the hood.

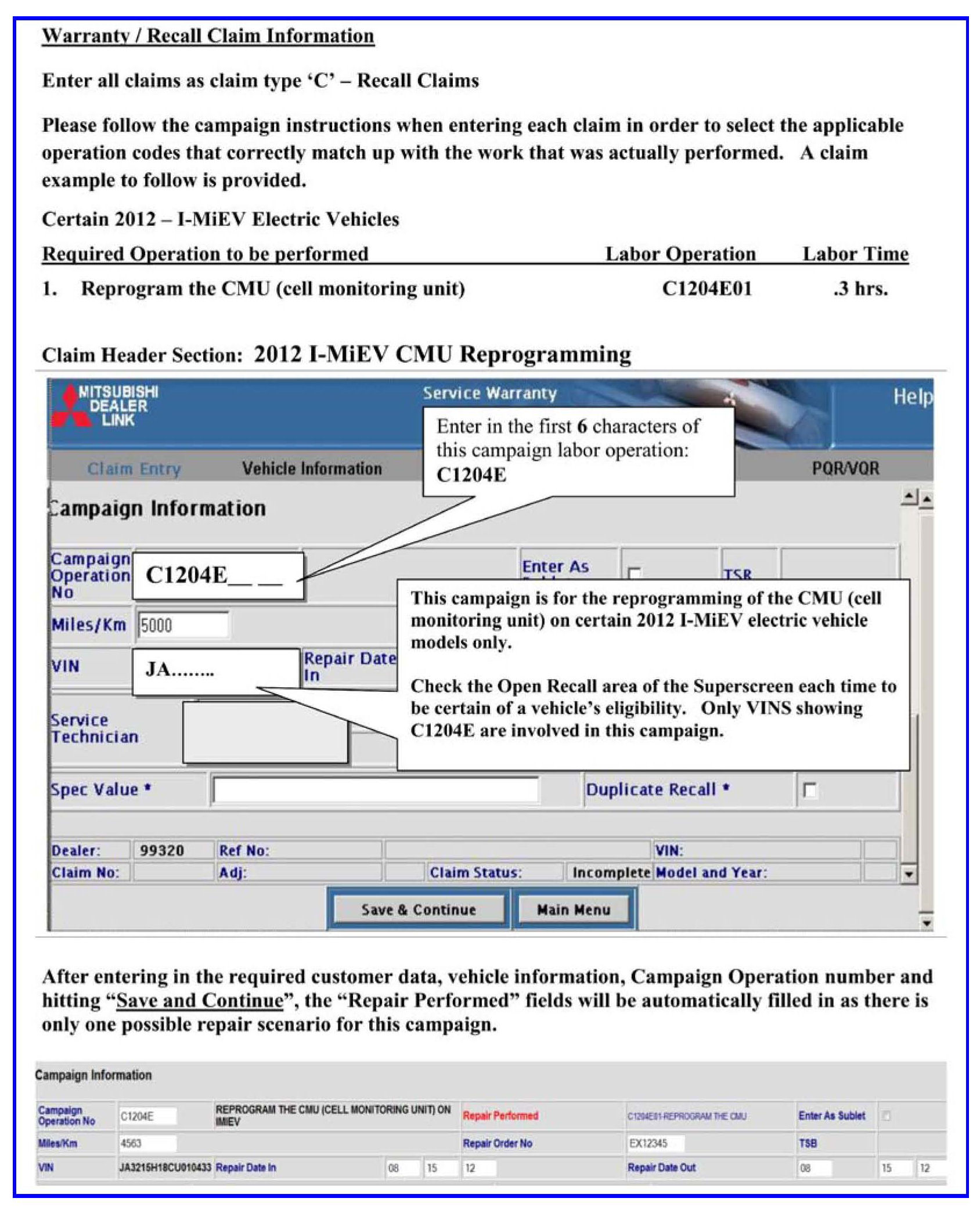

Warranty/ Recall Claim Information

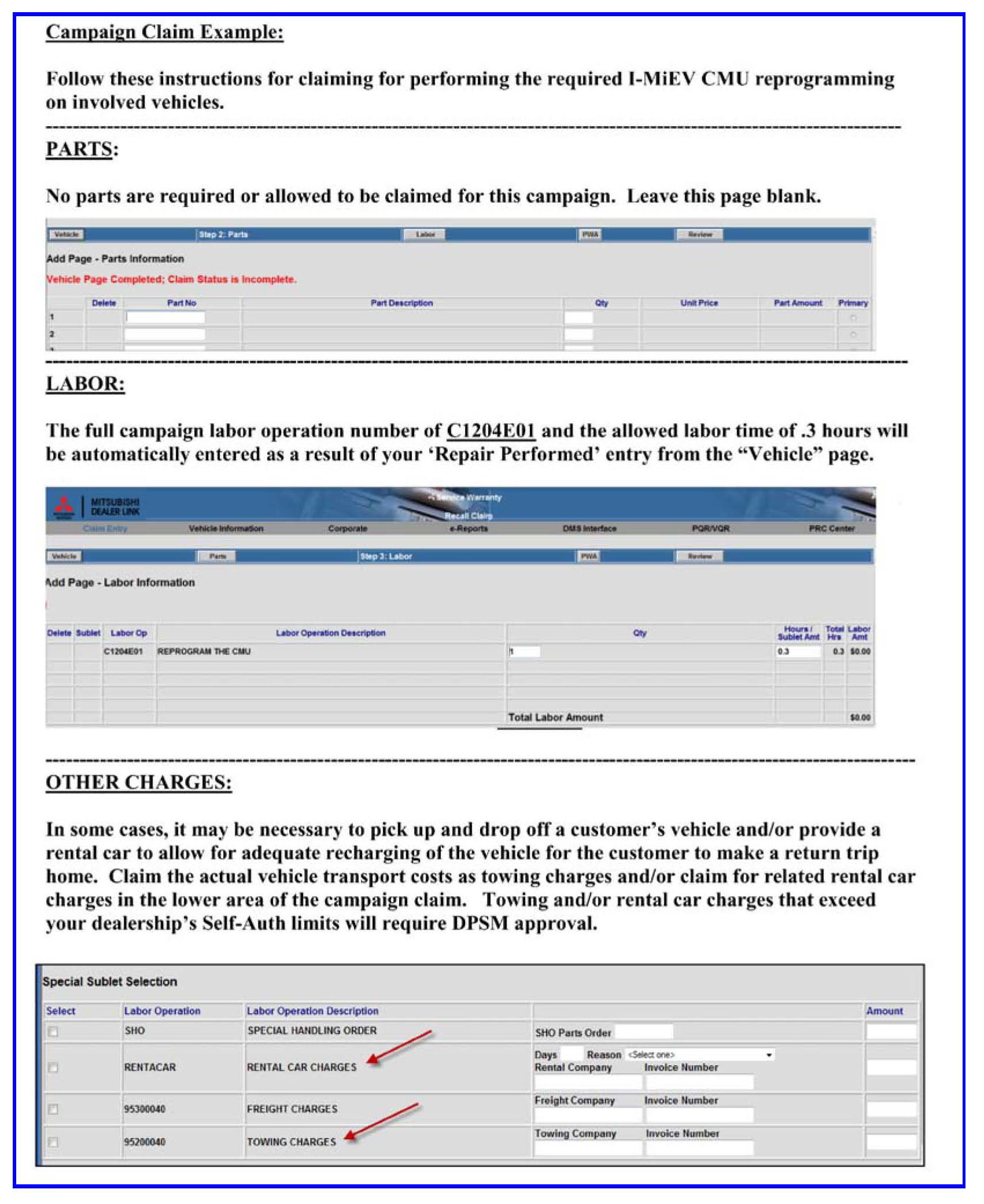

Campaign Claim Example

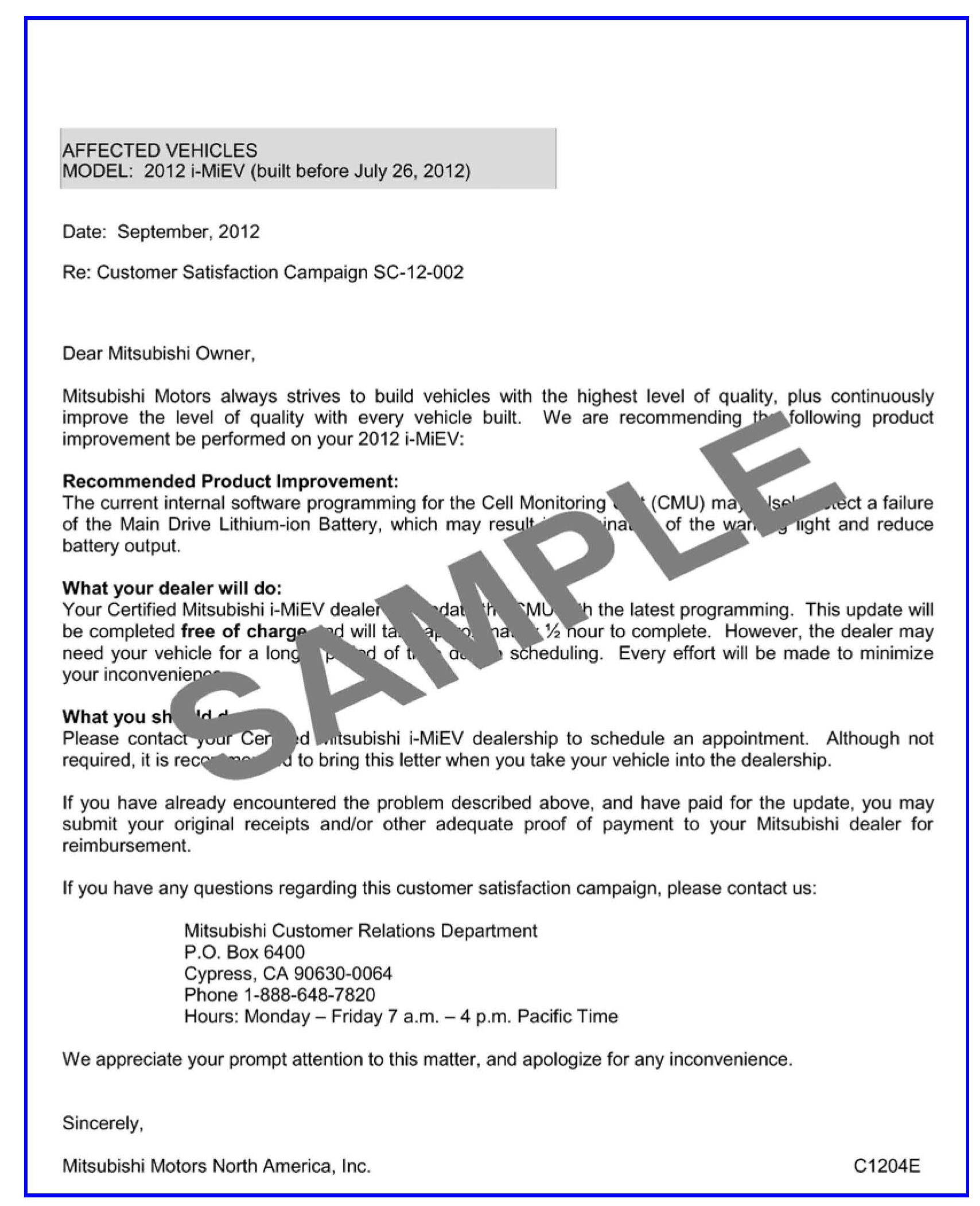

Owner Letter
