Computers/Controls - DTC's U1111/U1116 Time Out
No: TSB-12-54-004DATE: February, 2012
MODEL: 2012 i-MiEV
SUBJECT:
DTCS U1111 AND U1116 CAN TIME OUT/NOT EQUIPPED
PURPOSE

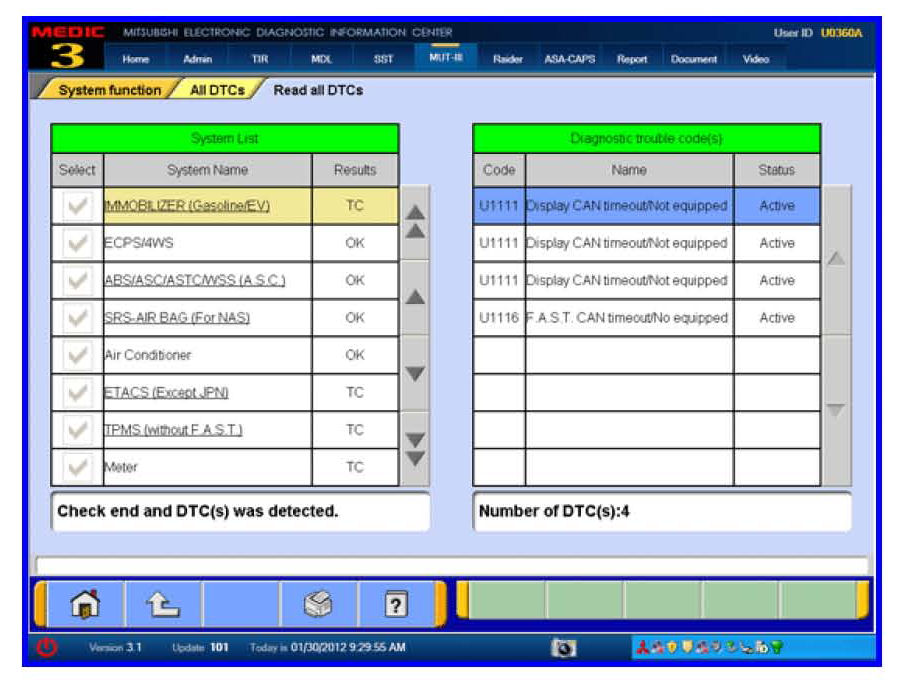

When using MUT-III to read DTCs on affected vehicles DTCs U1111 and U1116 will always be displayed and the message "...CAN Timeout/not equipped" is shown as the DTC "Name". This TSB advises these DTCs should not be diagnosed on affected vehicles.
AFFECTED VEHICLES
2012 i-MiEV
DETAILS
DTCs U1111 and U1116 always appear on the MUT-III when reading DTCs on i-MiEV and refer to features the vehicle is not equipped with (e.g. F.A.S.T. is not available on i-MiEV).
DIAGNOSIS SHOULD NOT BE PERFORMED ON THESE DTCS AND THEY CANNOT BE ERASED.
WARRANTY INFORMATION
This TSB provides technical information only.
