A/C - Revised DTC B1105, B1108, B1109, B1110 Troubleshooting

No: TSB-12-55-004
DATE: May, 2012
MODEL: 2012 i-MiEV

SUBJECT:
TROUBLESHOOTING FOR B1105, B1108, B1109,
B1110 - SERVICE MANUAL REVISION

[TSB Revision: TSB-12-55-004]

PURPOSE

This TSB provides revised troubleshooting procedures for A/C diagnosis codes B1105, B1108, B1109, B1110.

AFFECTED VEHICLES

2012 i-MiEV built up to the end of March, 2012

APPLICABLE SERVICE MANUALS

2012 i-MiEV Service Manual Group 55 - Heater, Air Conditioning and Ventilation >> A/C Diagnosis >> Diagnostic Trouble Code Procedures < A/C Control Assembly>

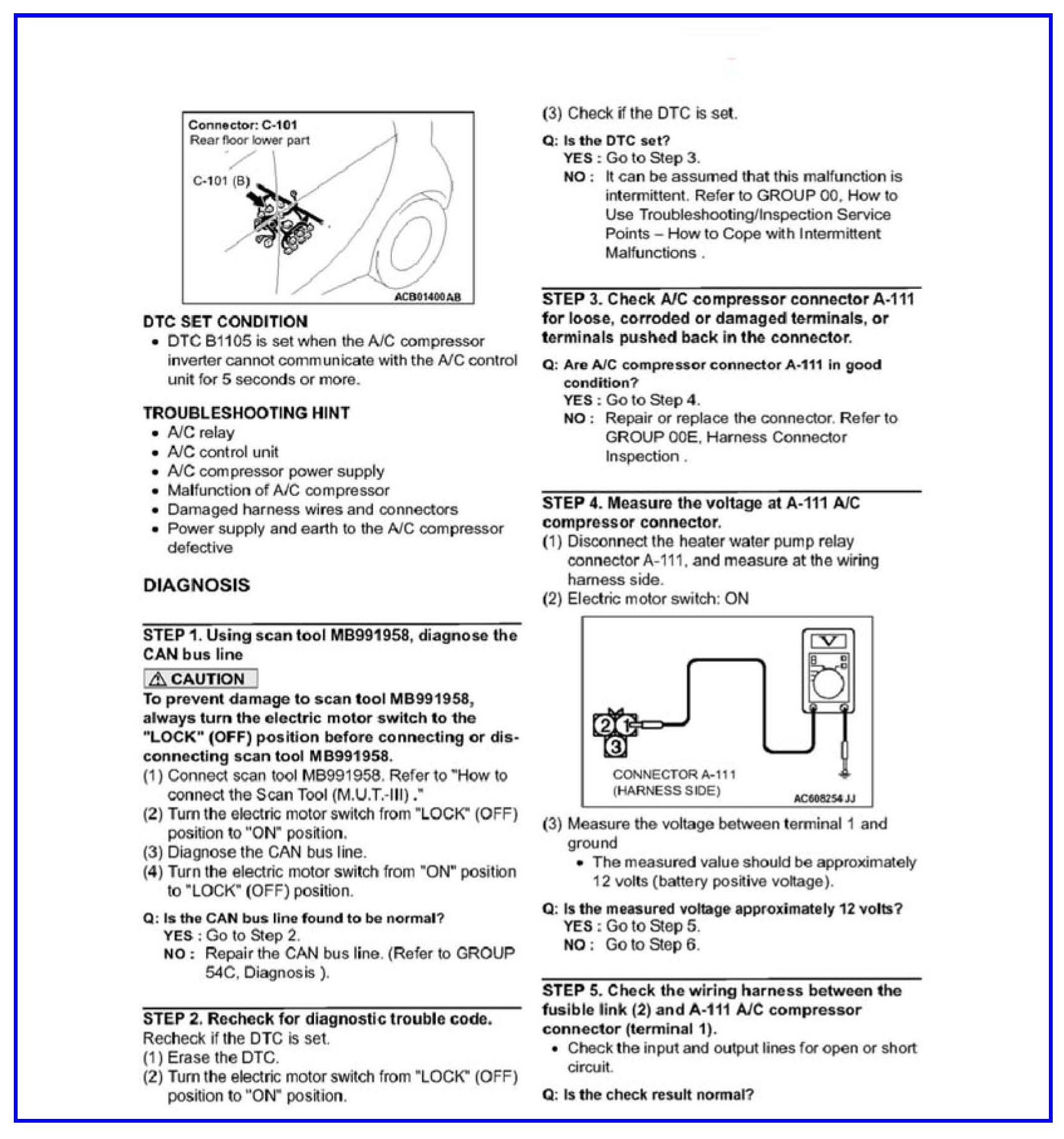

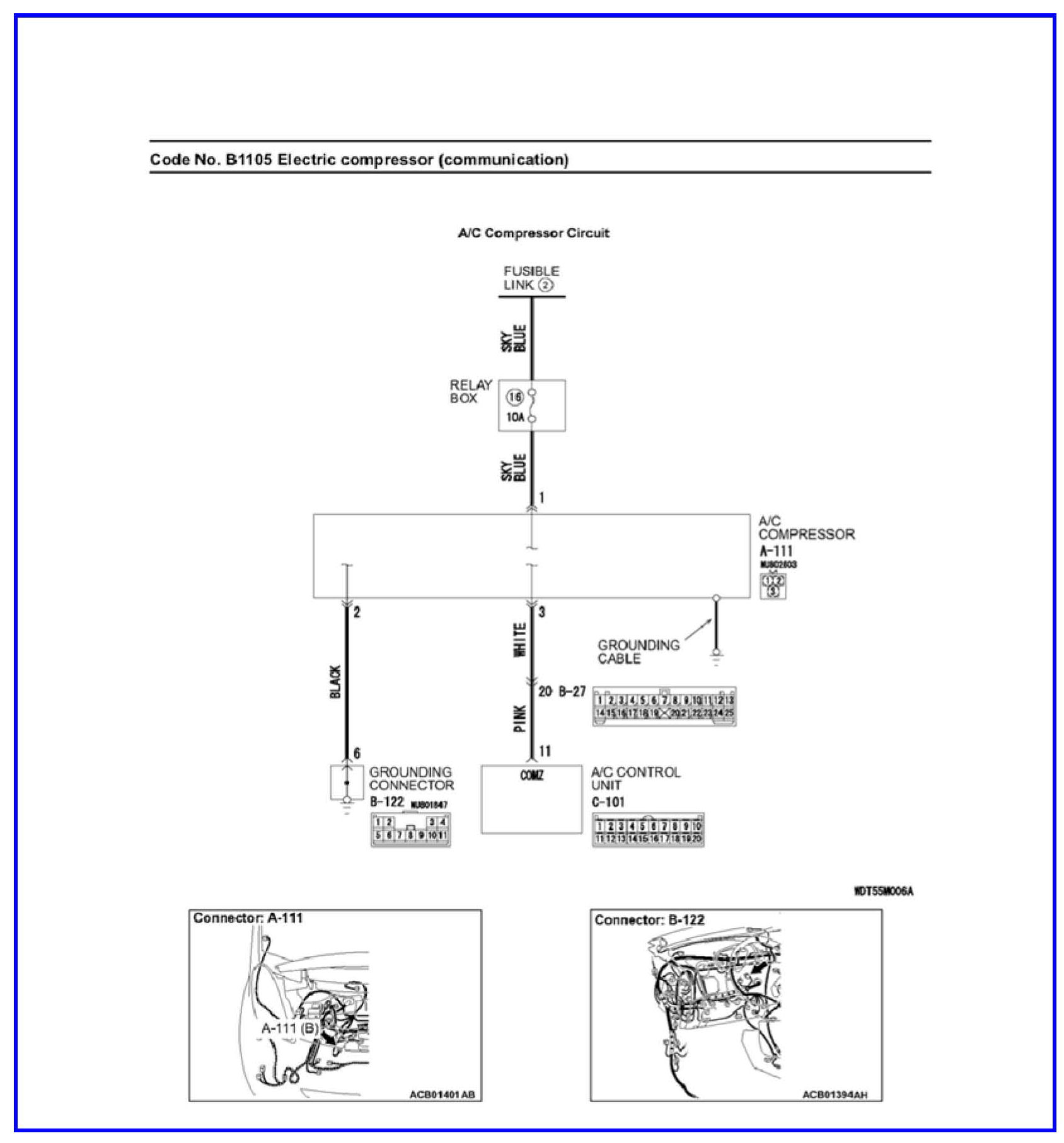

DTC B1105 - ELC Compressor (Communication)

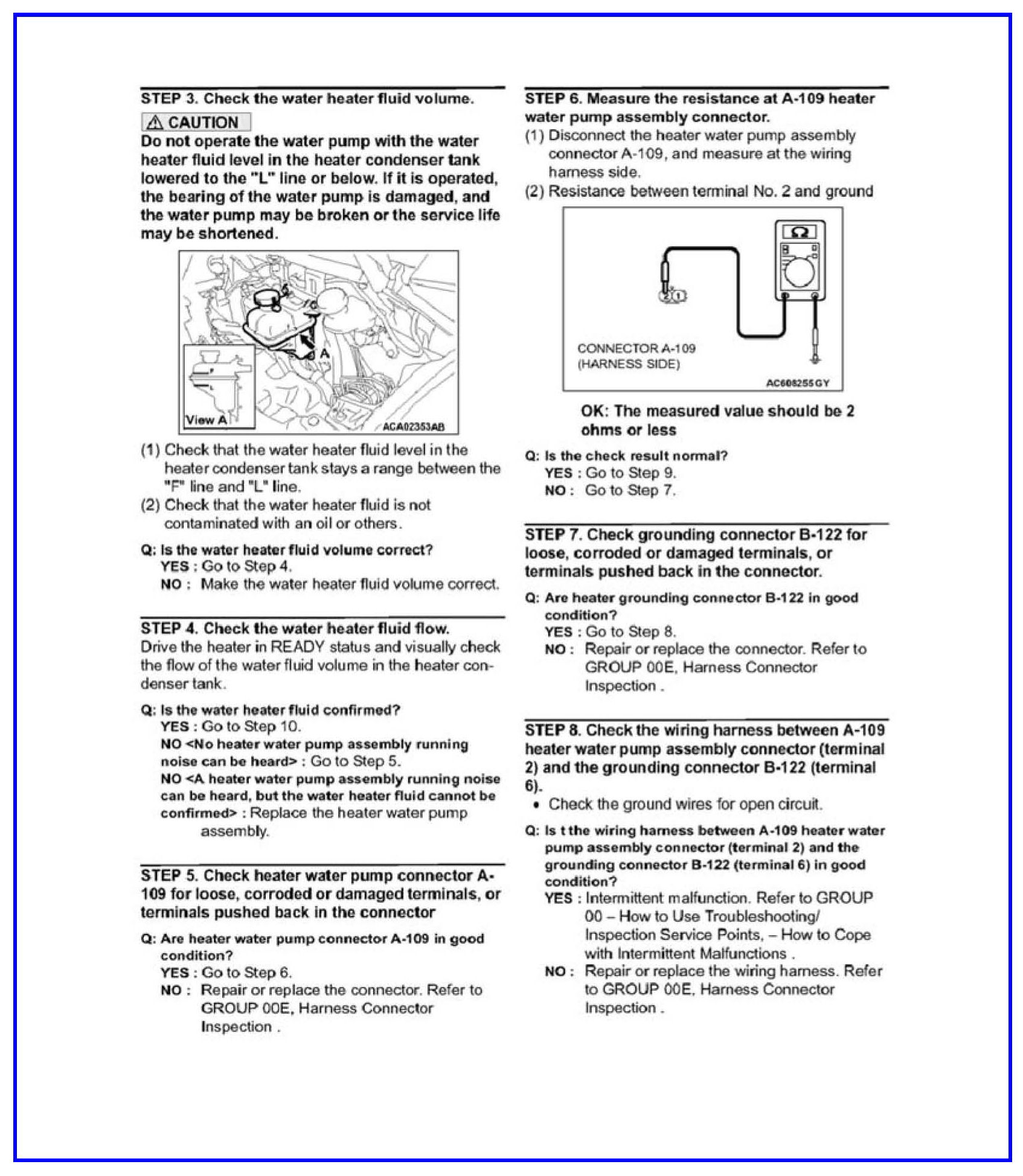

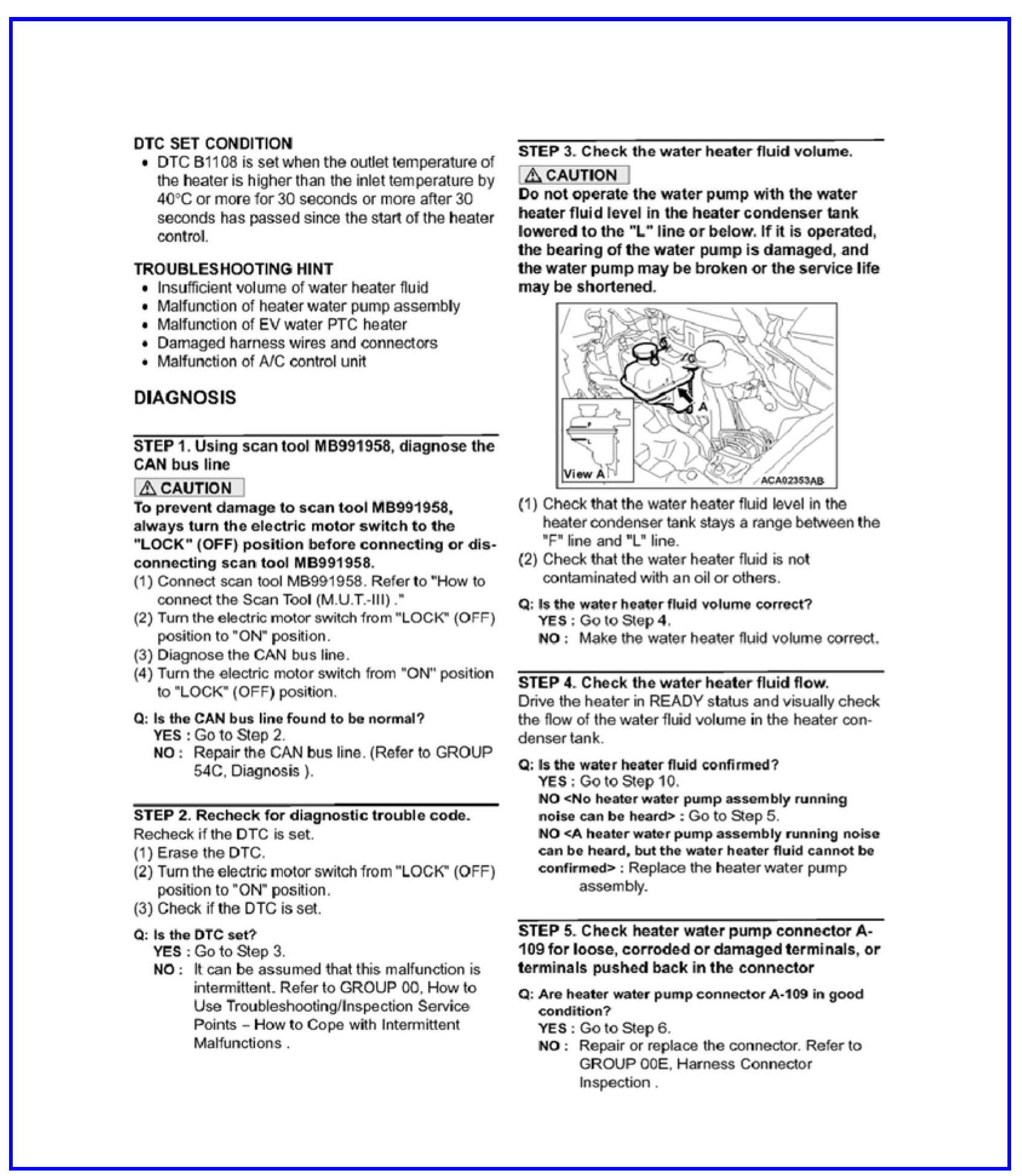

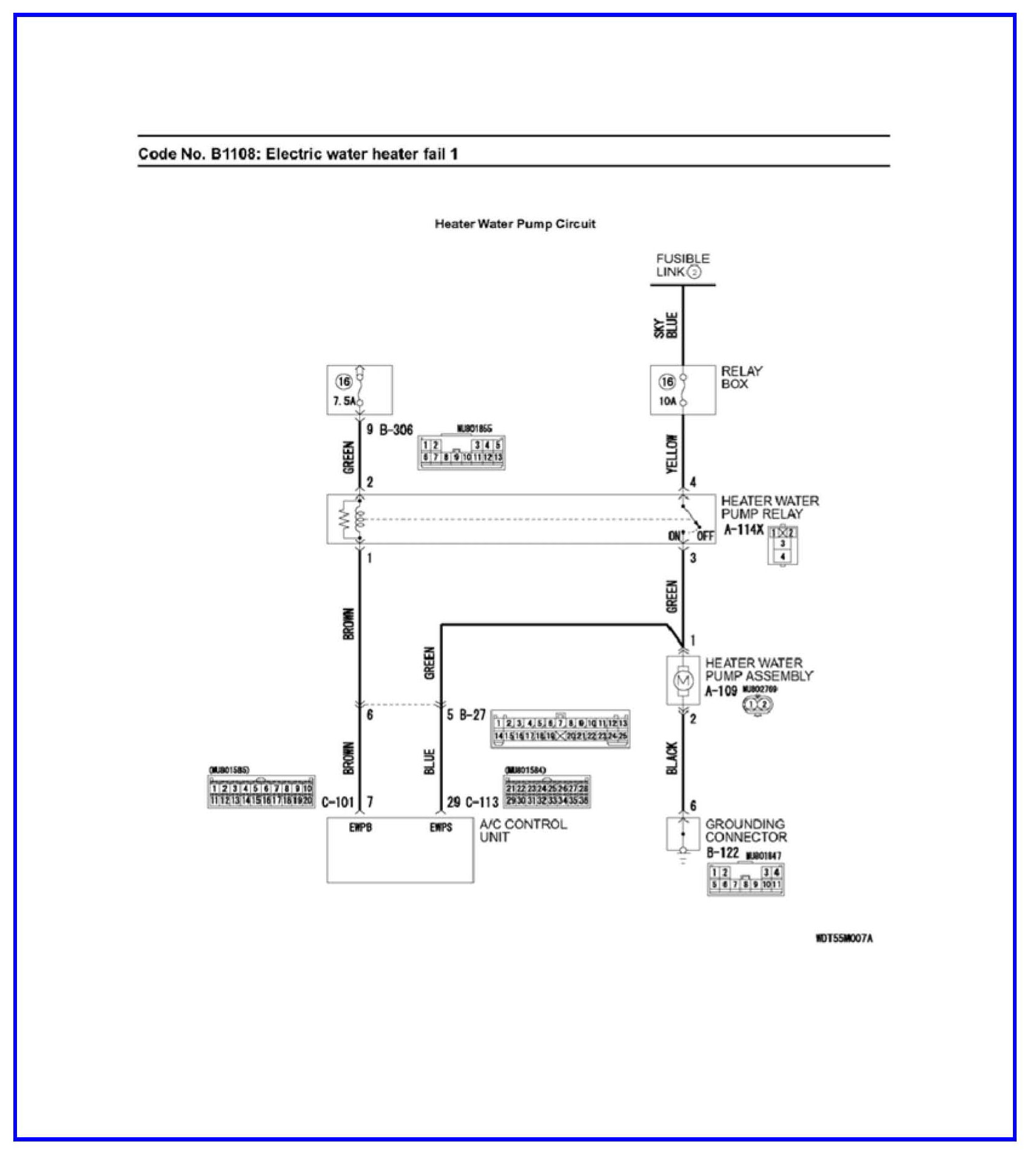

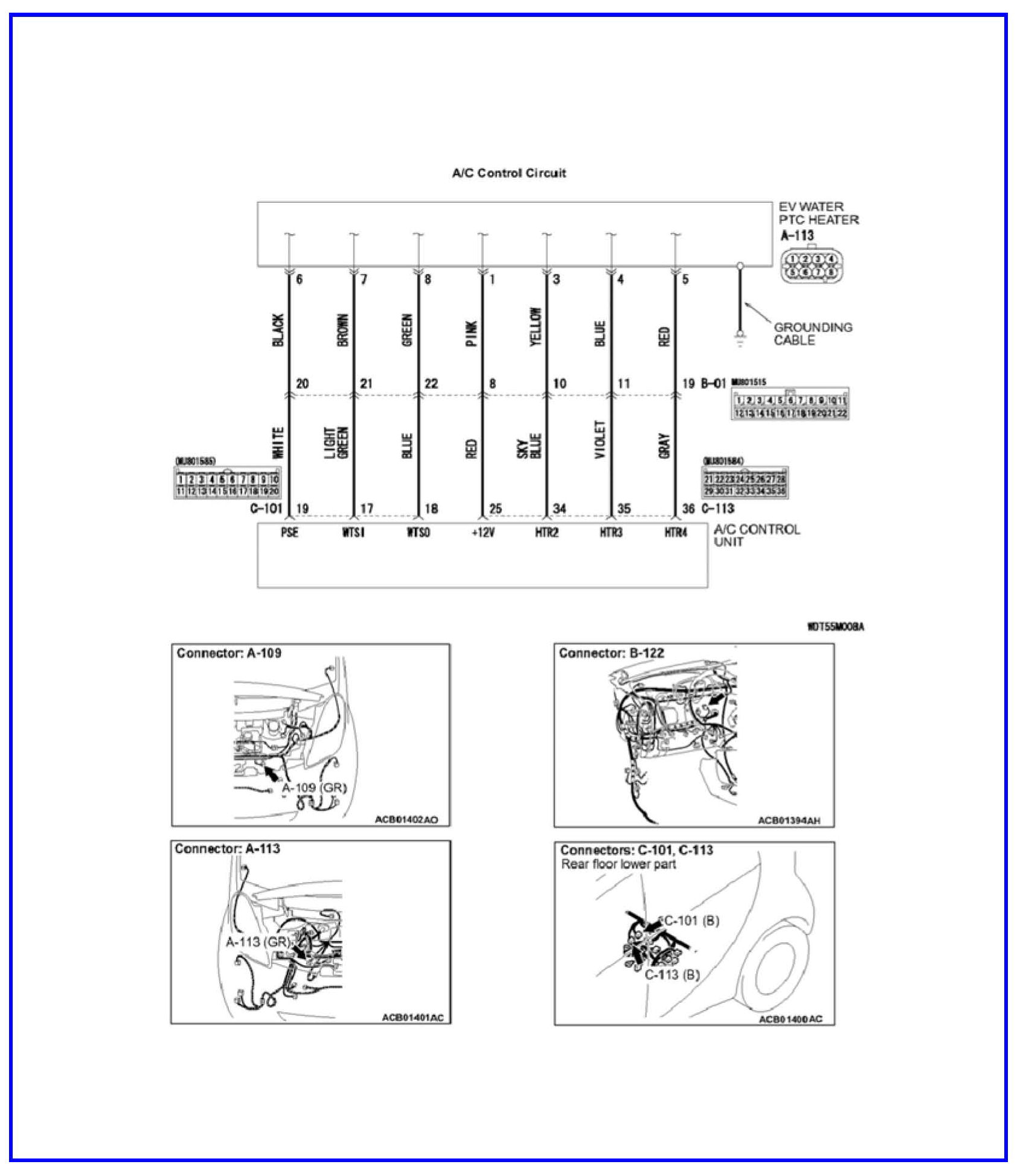

DTC B1108 - Electric water heater fail 1
DTC B1109 - Electric water heater fail 2

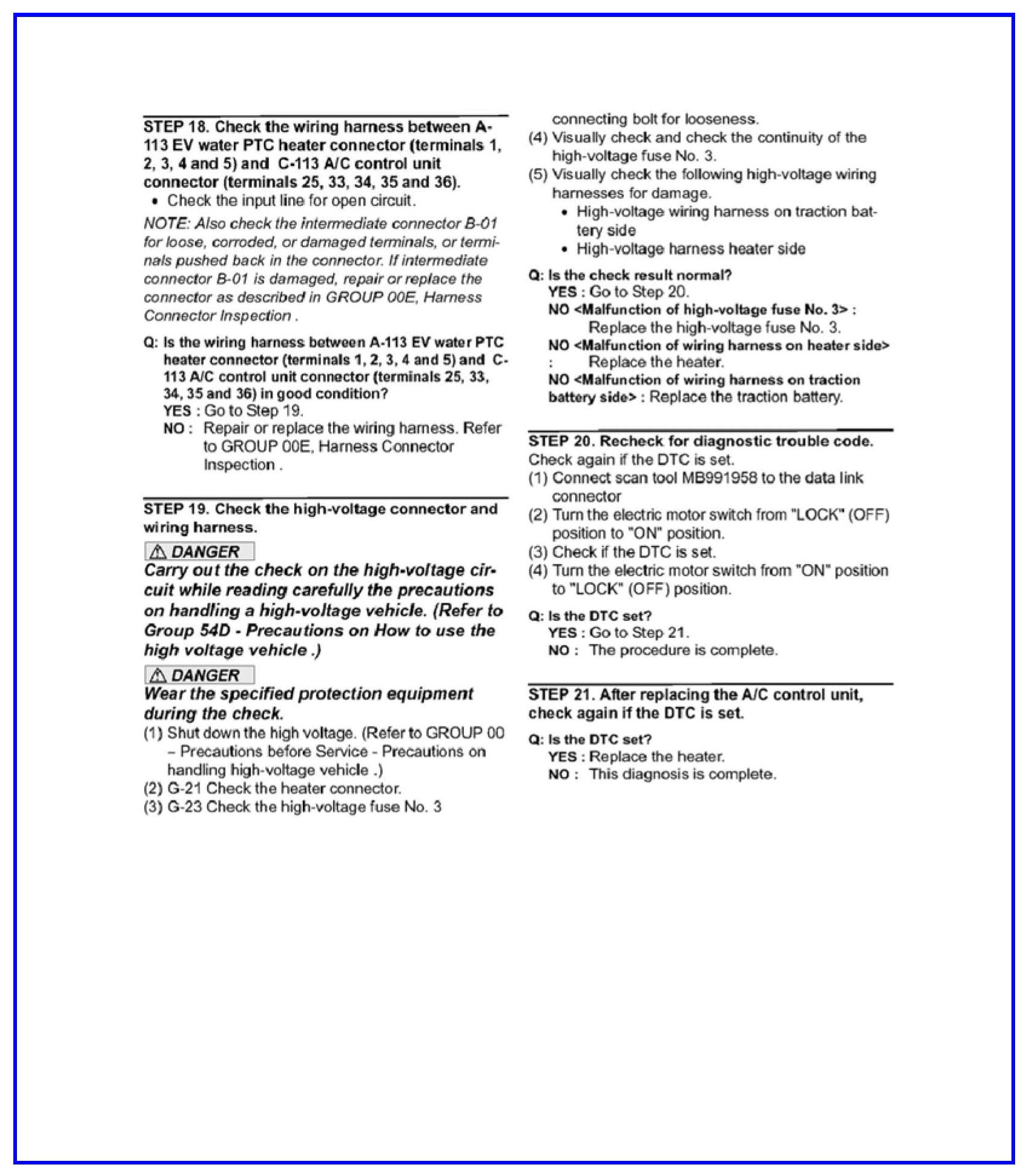

DTC B1110 - Electric water heater fail 3

Only the new information is shown in this TSB.











Replace the troubleshooting procedures for Code No. B1105 with the pages shown.

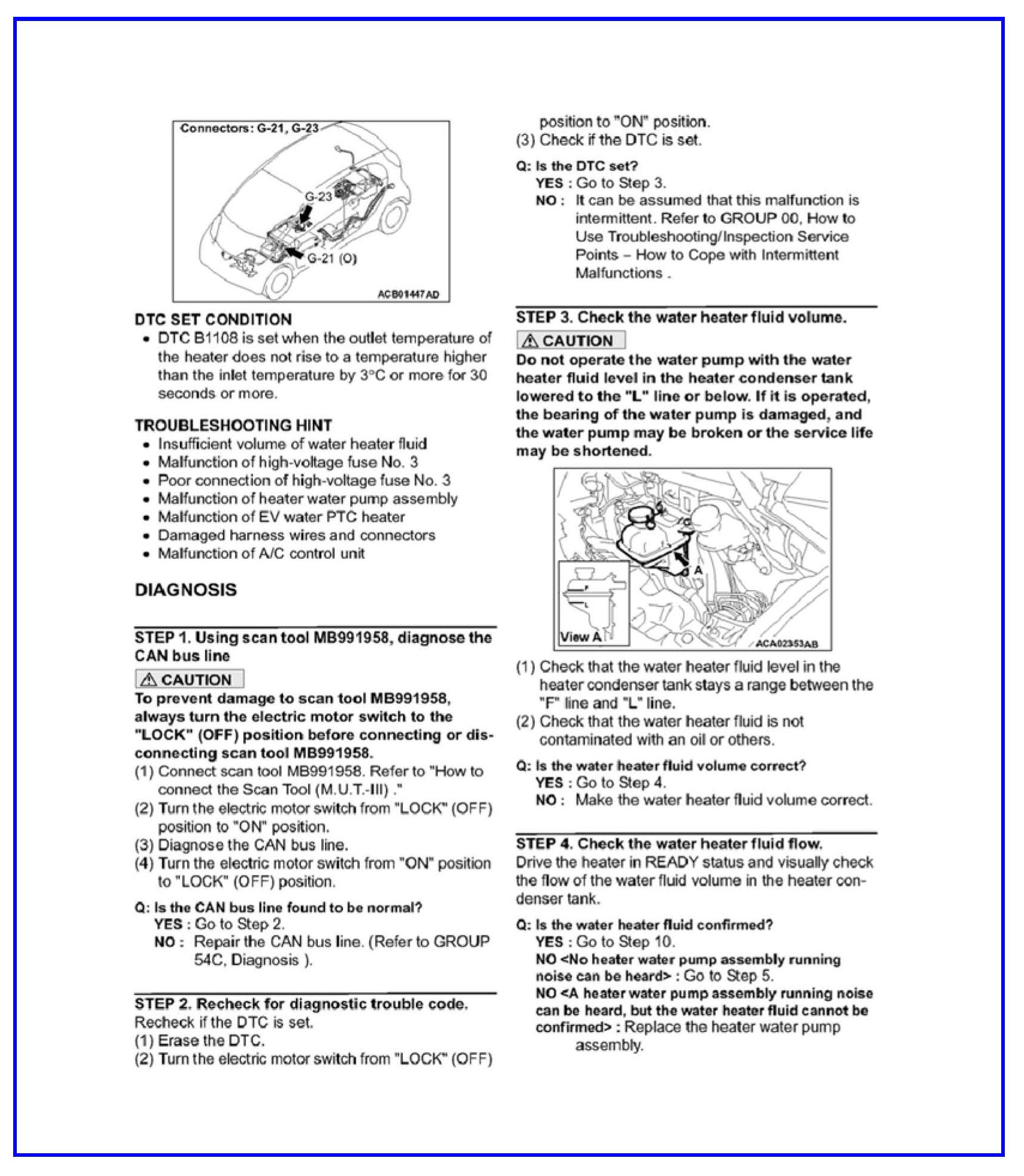

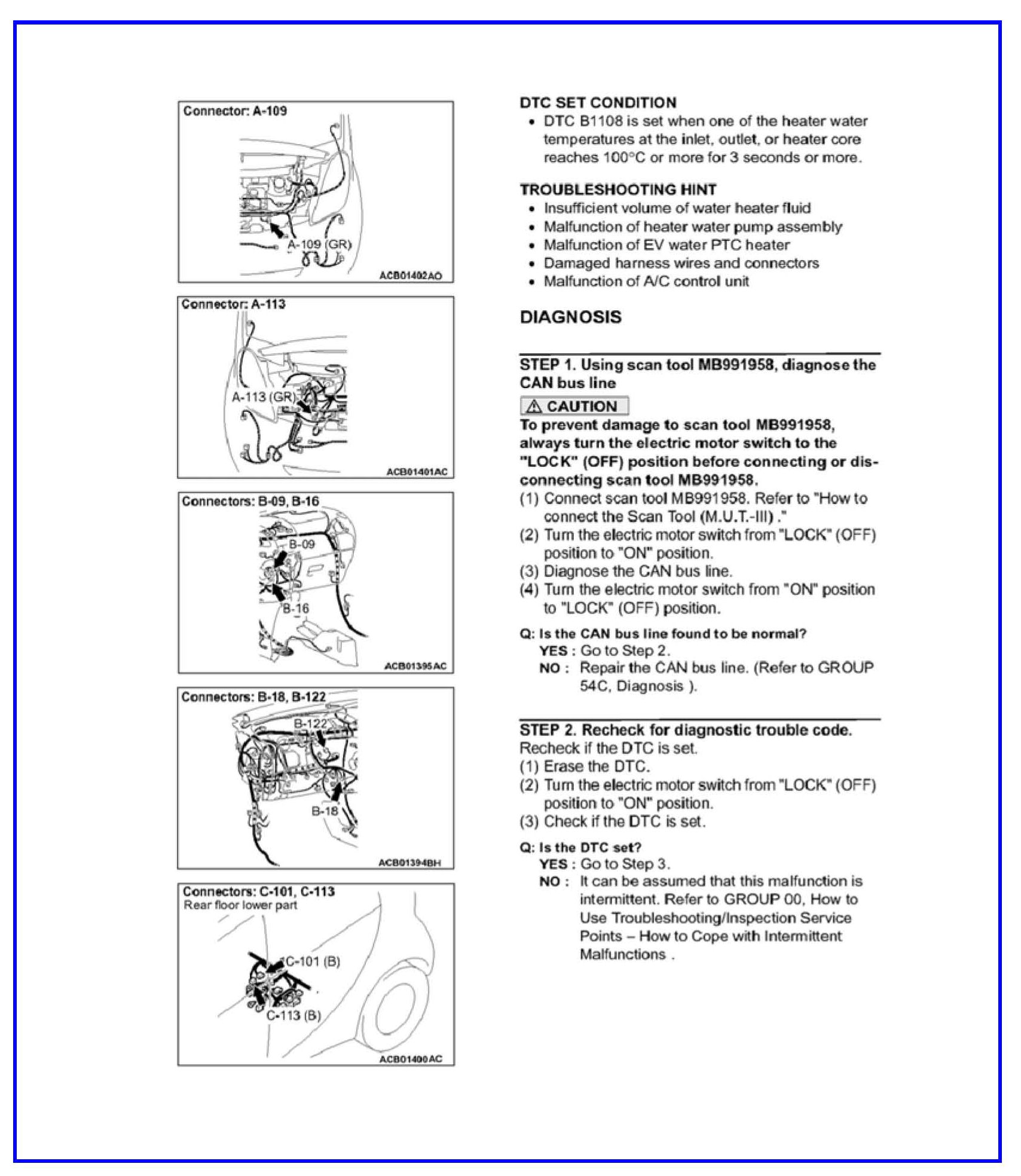

Replace the troubleshooting procedures for Code No. B1108 with the pages shown.




















Replace the troubleshooting procedures for Code No. B1109 with the pages shown.

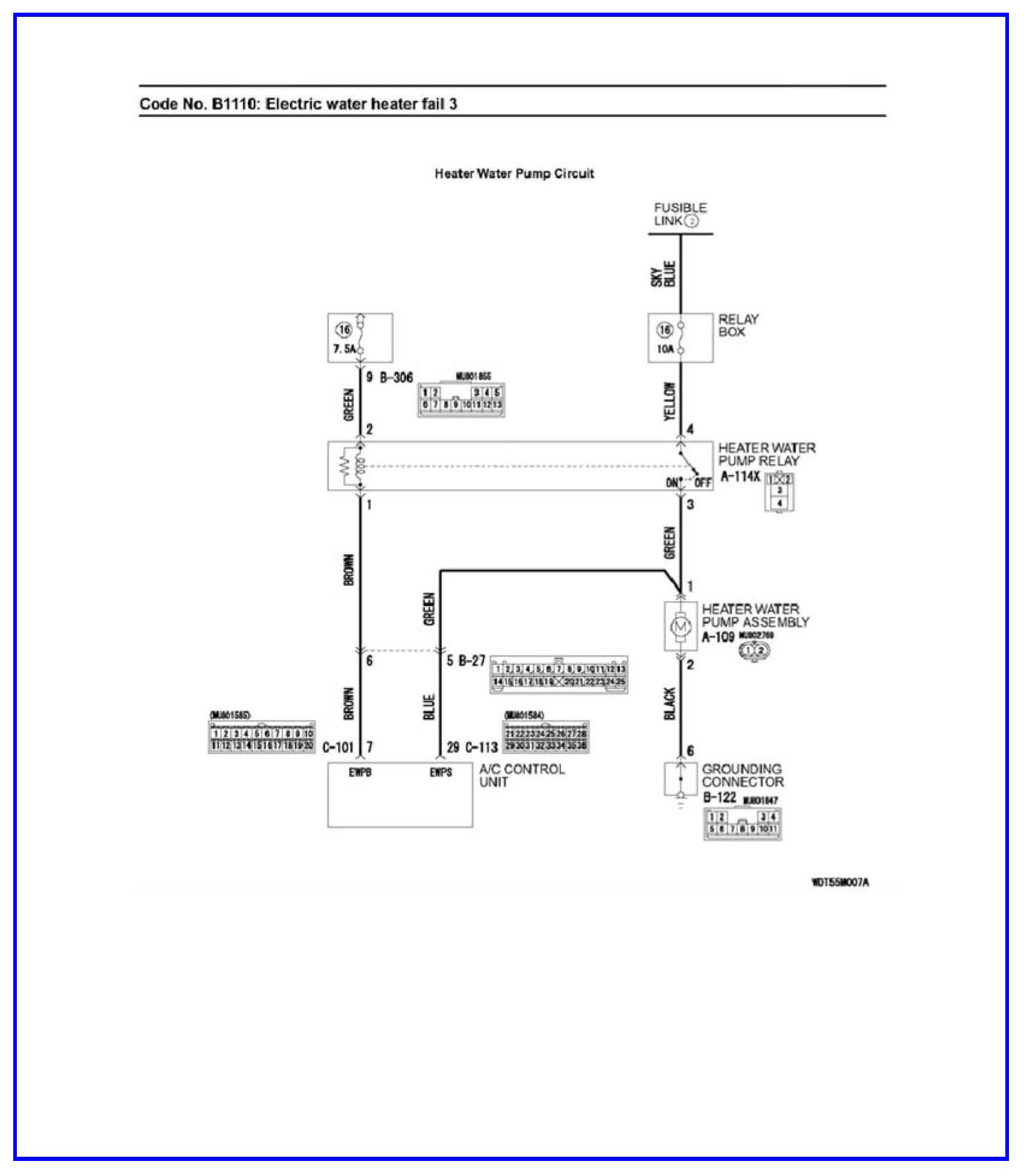

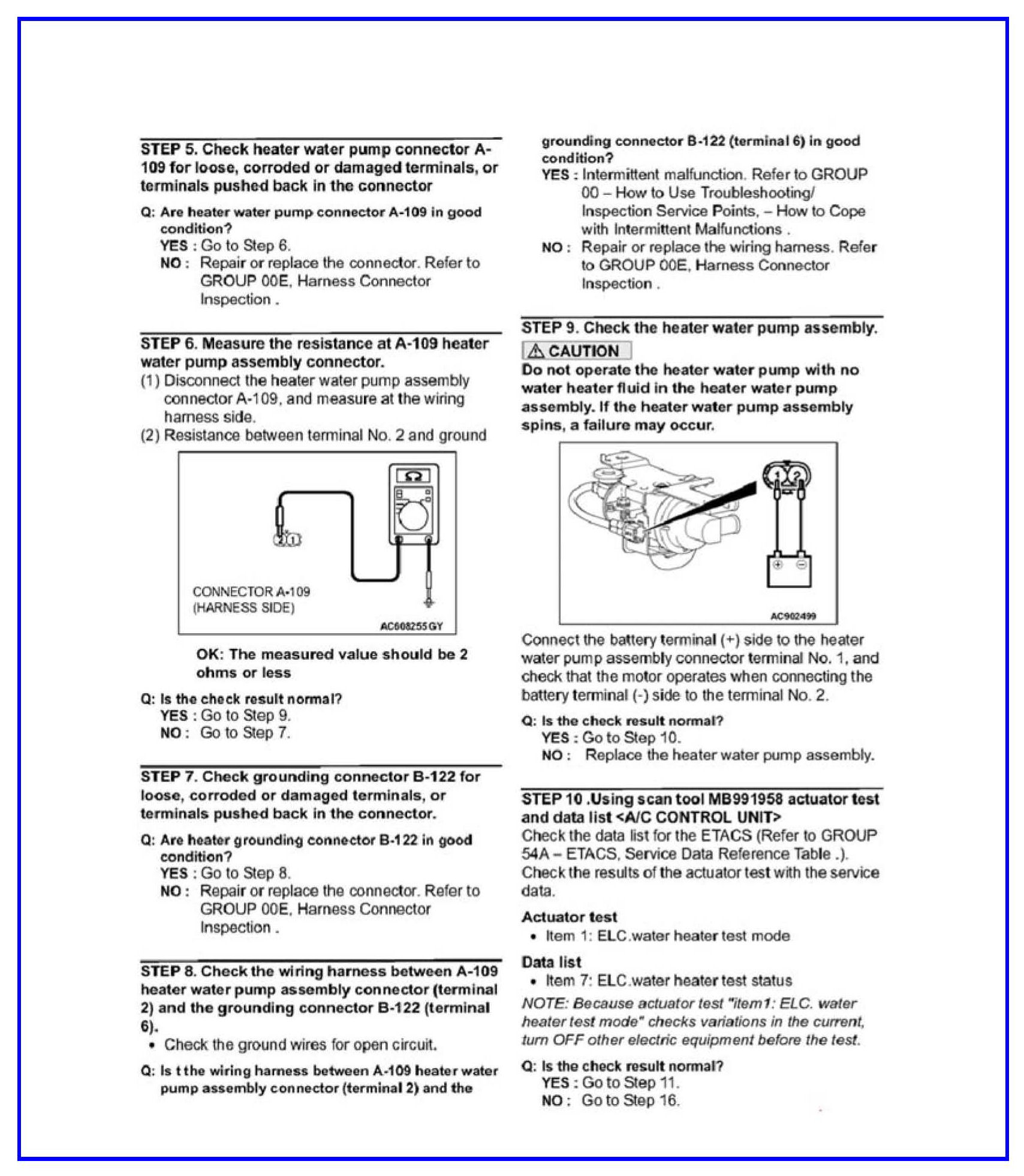

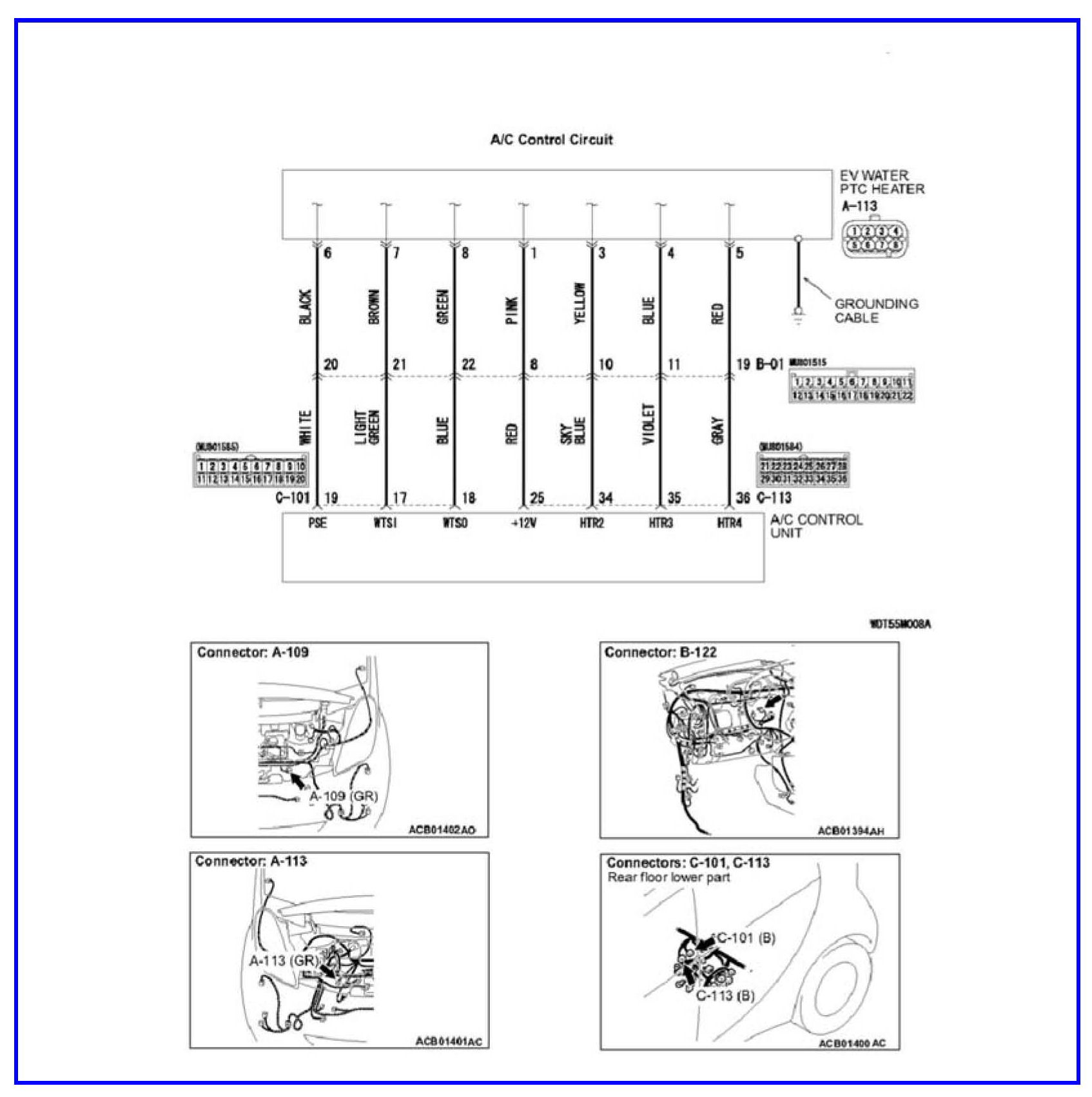

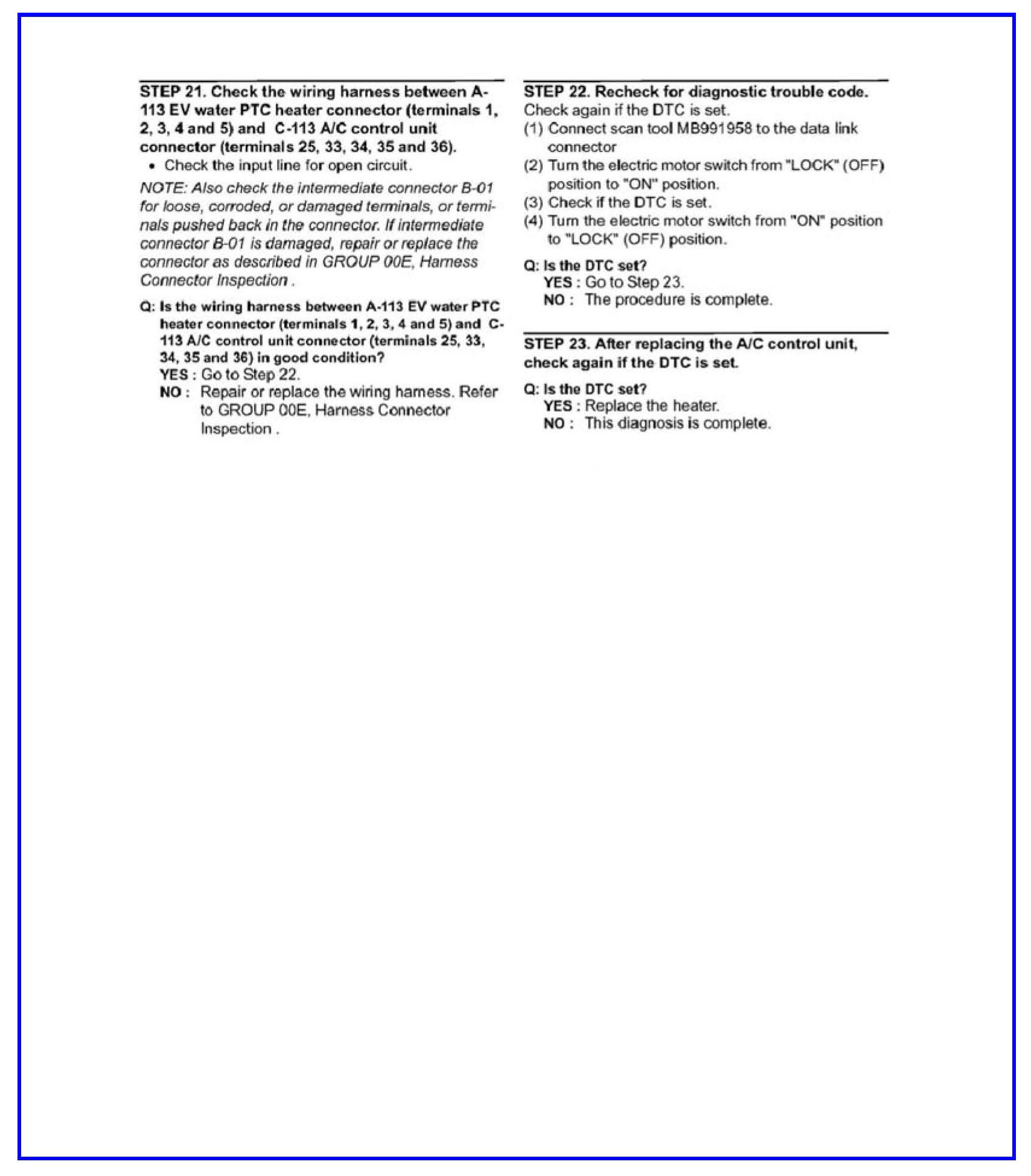

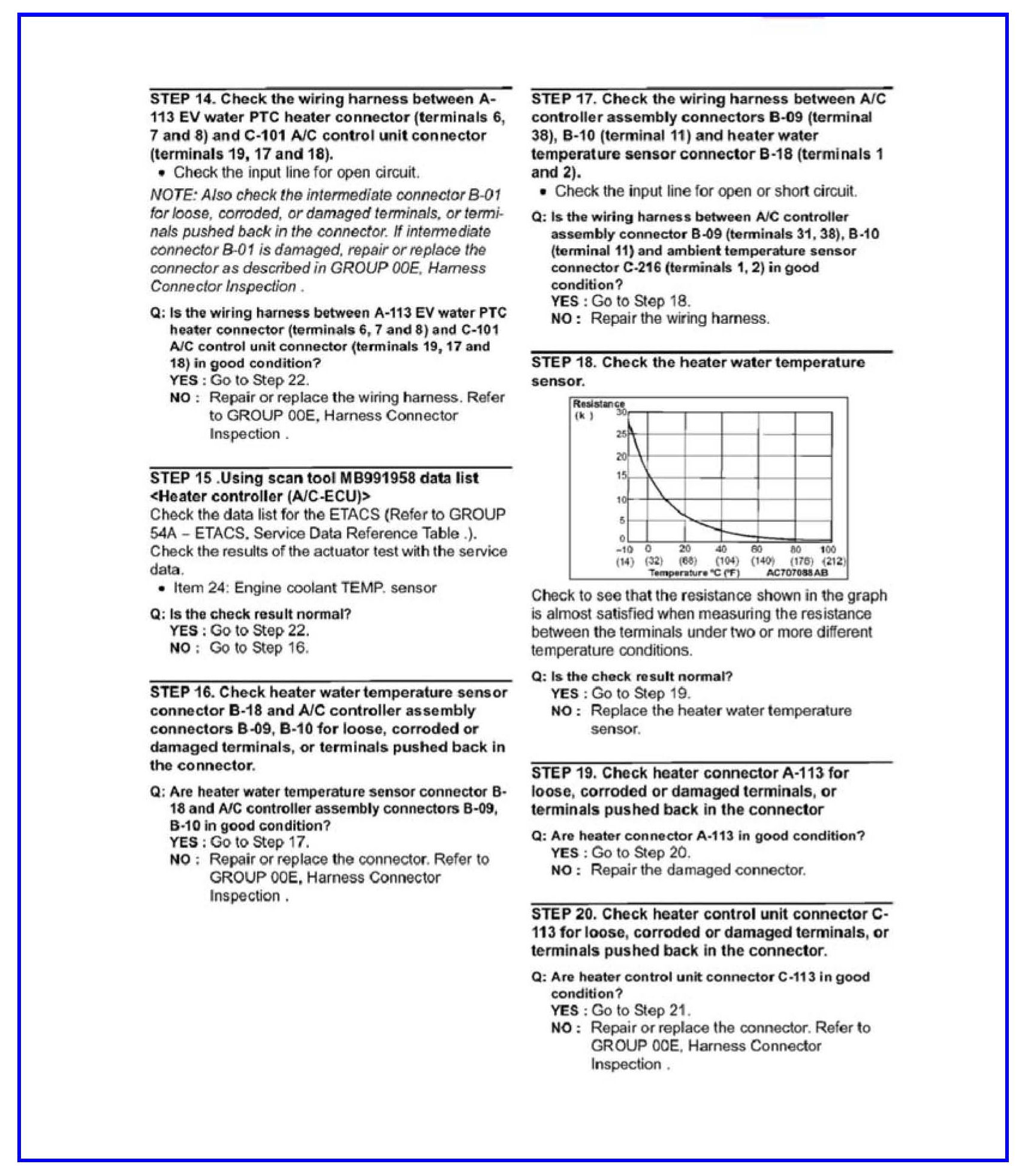

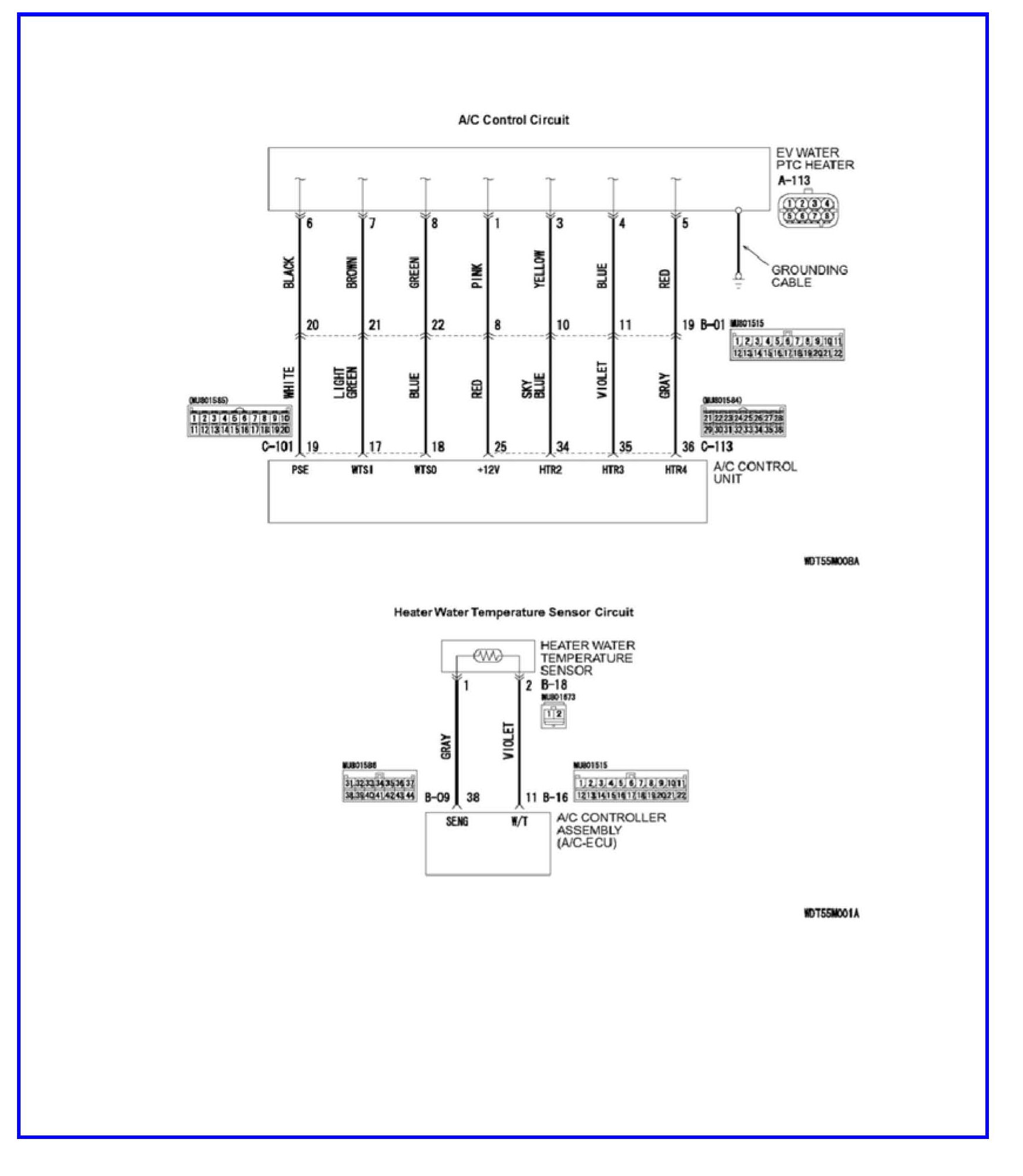

Replace the troubleshooting procedures for Code No. B1110 with the pages shown.
