A/C - Revised A/C Compressor Removal And Installation
No: TSB-12-55-005DATE: May, 2012
MODEL: 2012 iMiEV
SUBJECT:
A/C COMPRESSOR REMOVAL AND INSTALLATION -
SERVICE MANUAL REVISION
[TSB Revision: TSB-12-55-005]
PURPOSE
Due to a mid year production change, the removal and installation instructions and the installation service points for the a/c compressor are changed in the service manual. This TSB provides the revised information.
AFFECTED VEHICLES
2012 i-MiEV from the end of March, 2012
AFFECTED SERVICE MANUALS
2012 i-MiEV Service Manual Group 55 - Heater, Air Conditioner and Ventilation - A/C Compressor
Removal and Installation

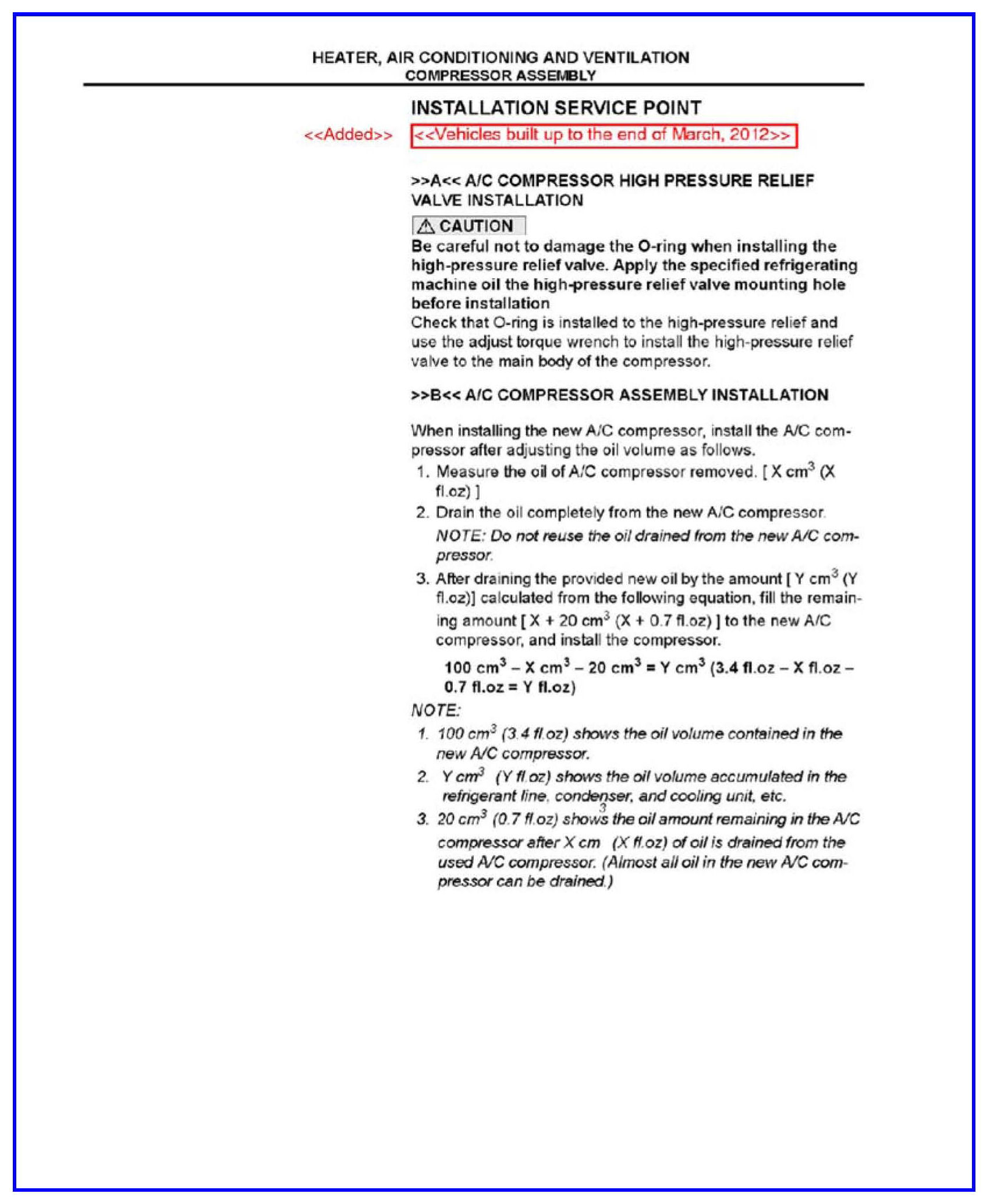

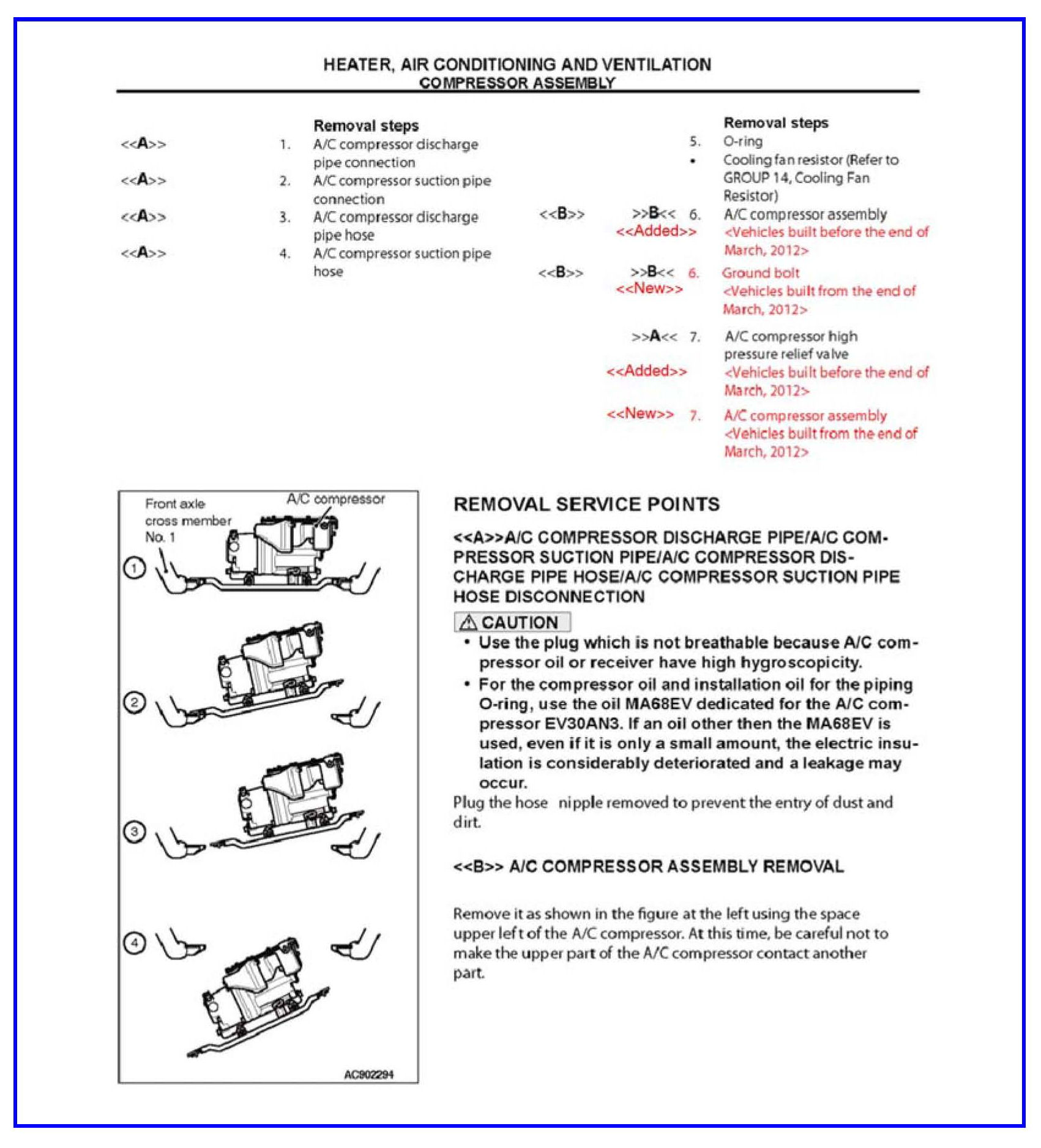

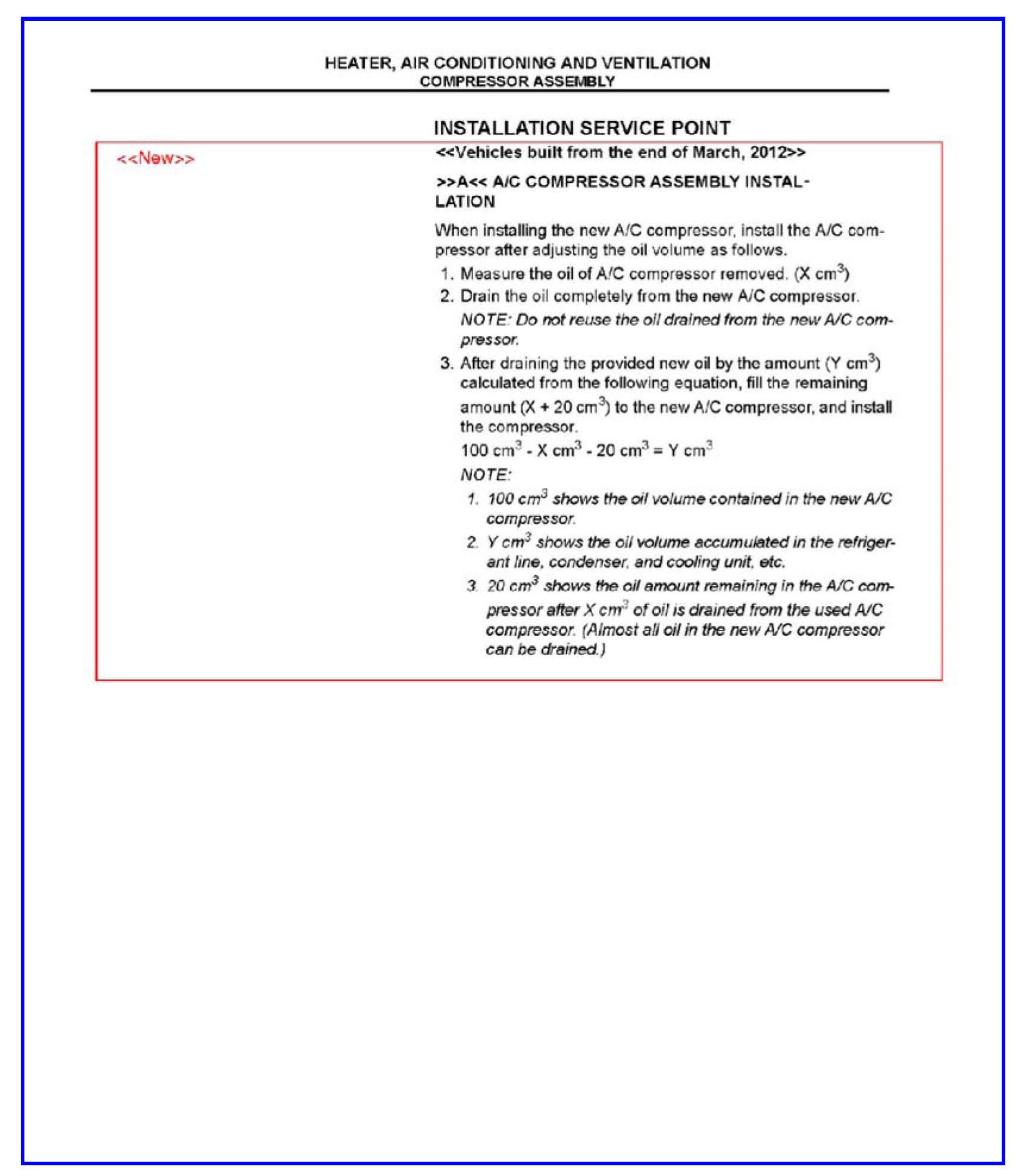

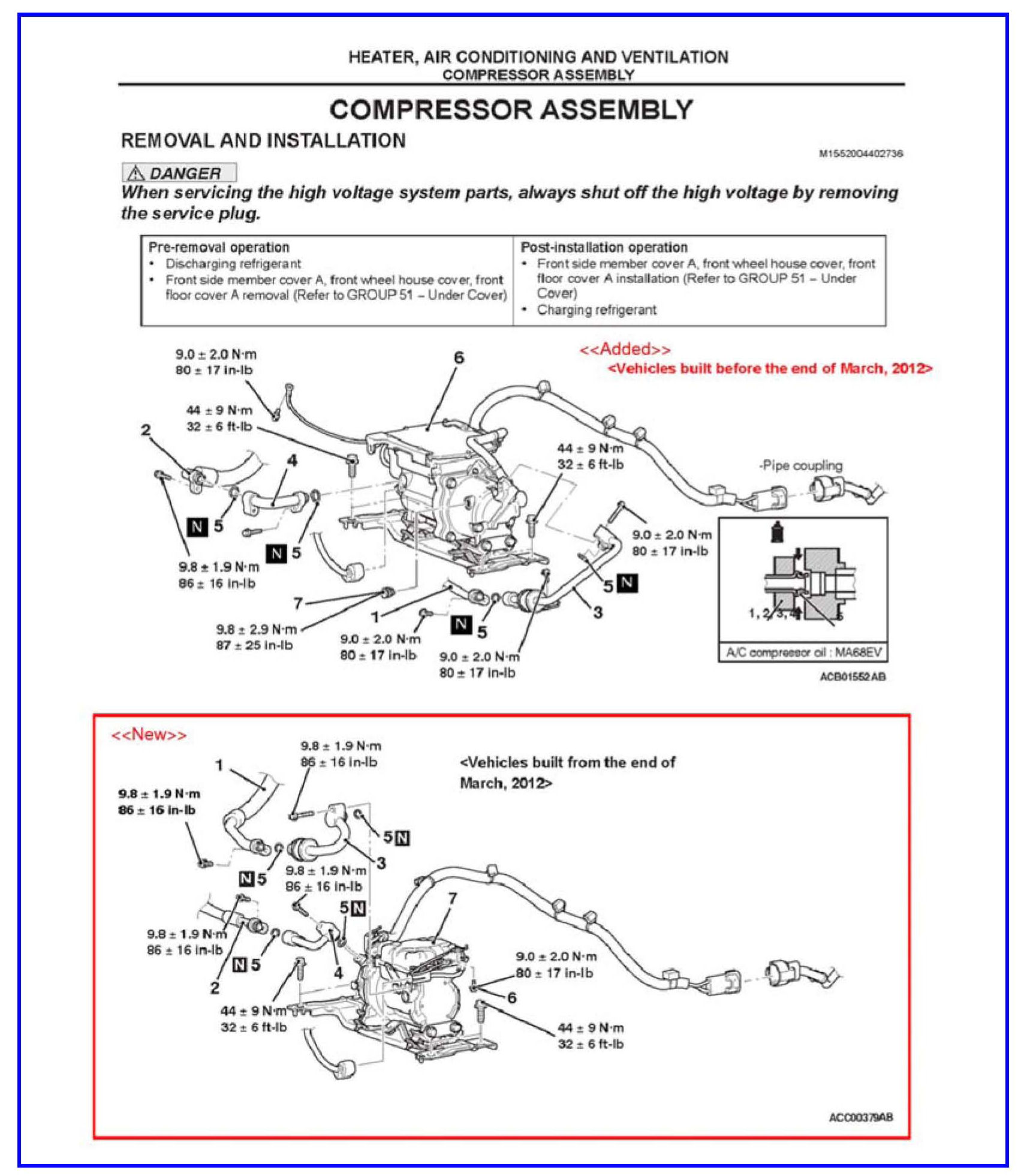

Replace the existing information in the 2012 i-MiEV Service Manual with the following pages:
2012 i-MiEV Service Manual:
Group 55 - Heater, Air Conditioner and Ventilation - A/C Compressor Removal and Installation
