Electrical - Revised Electric Motor And Battery Symptom Diag.
No: TSB-13-54-001DATE: February, 2013
MODEL: 2012 i-MiEV
SUBJECT:
ELECTRIC MOTOR AND BATTERY SYMPTOM
DIAGNOSIS - SERVICE MANUAL REVISION
PURPOSE
This TSB updates the Electric Motor and Battery Trouble Symptom Chart and adds Inspection Procedure 2: Vehicle Vibration, to the service manual.
AFFECTED VEHICLES
2012 i-MiEV
AFFECTED SERVICE MANUALS
2012 i-MiEV Service Manual:Group 54 - Chassis Electrical > 54D Electric Motor Unit and Traction Battery > Electric Motor Control Unit (EMCU) and Motor (Electric Motor Unit):

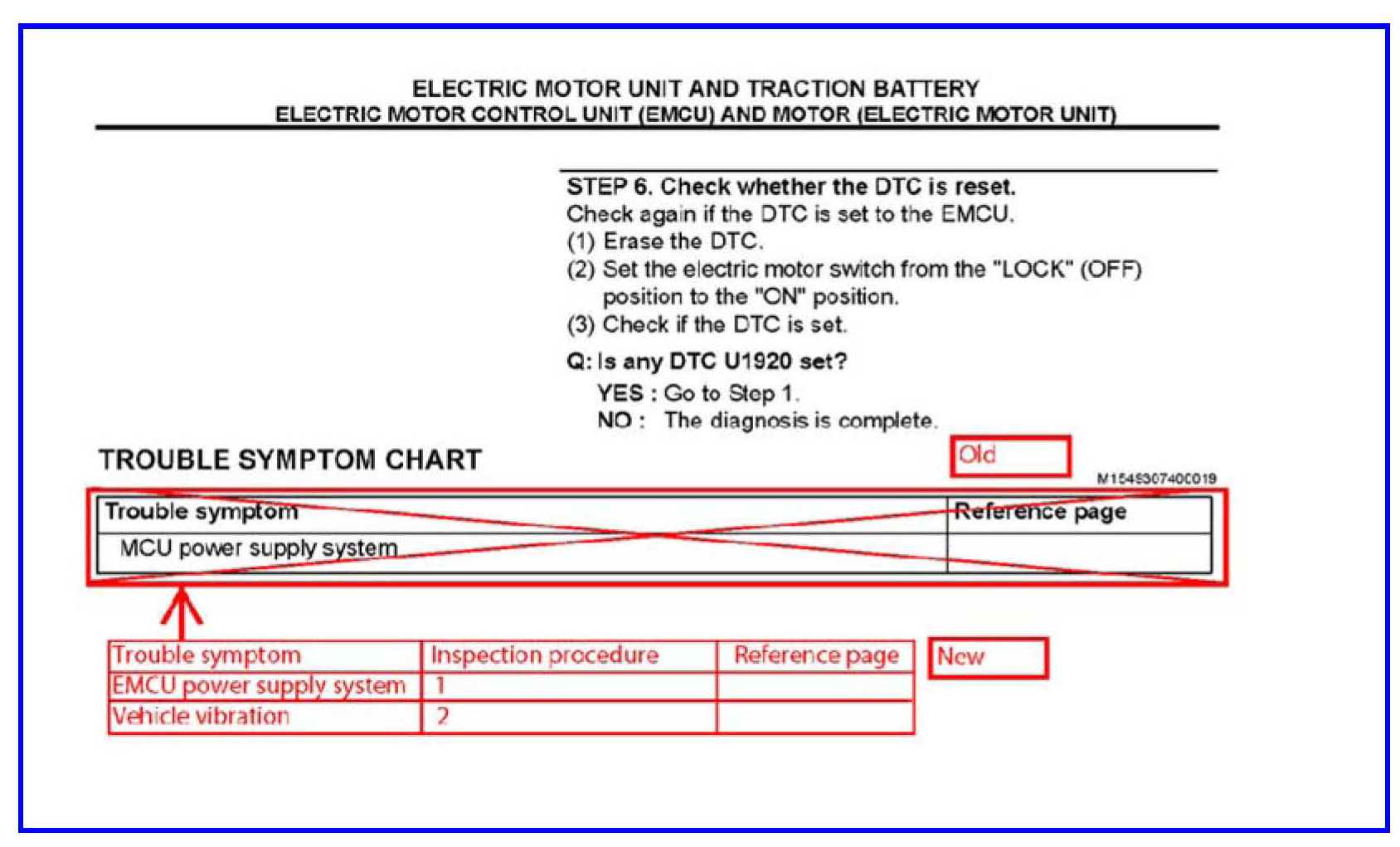

^ Trouble Symptom Chart
^ EMCU power Supply System <12MY>

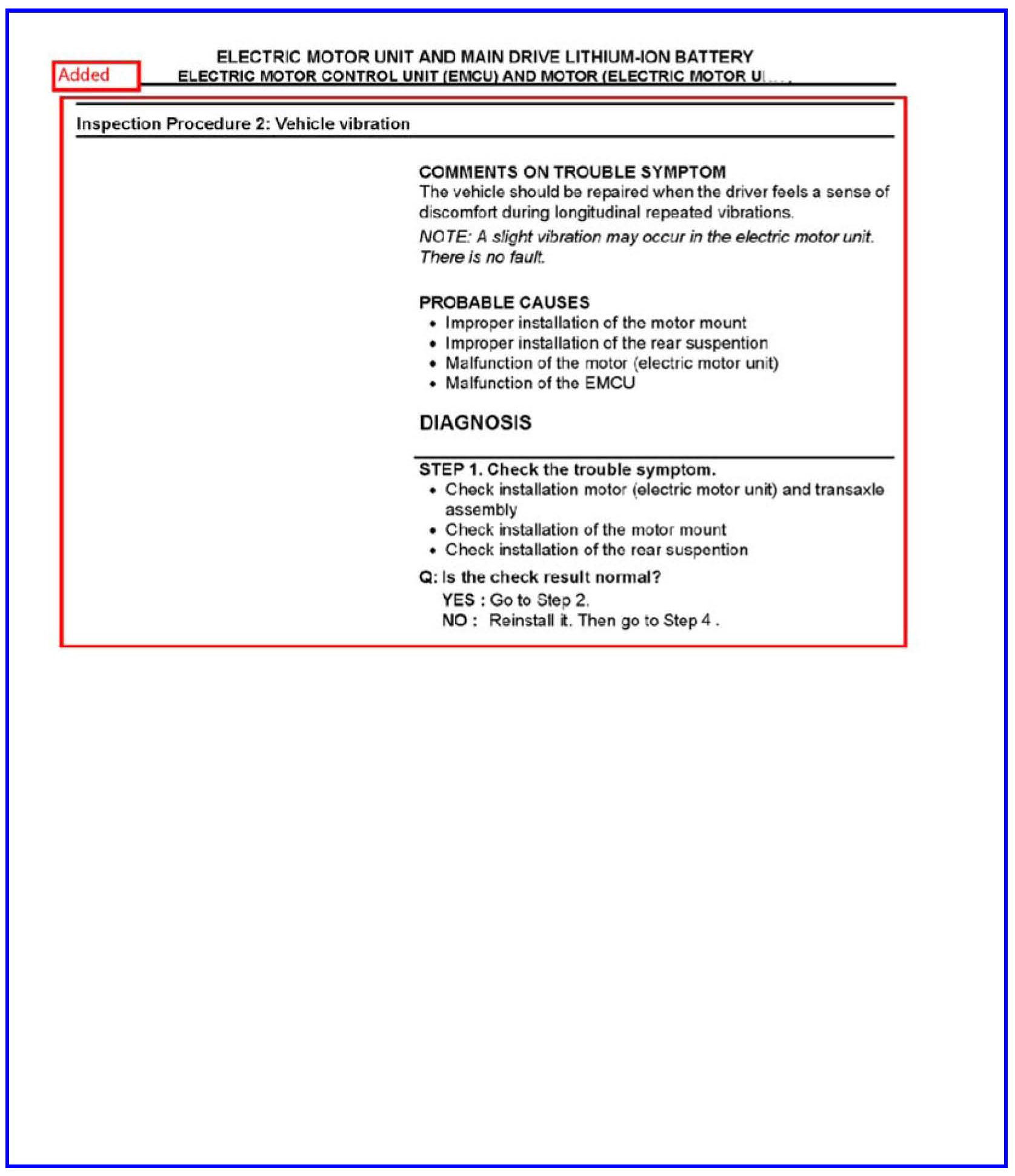

^ Inspection Procedure 2: Vehicle Vibration
Make the changes to the 2012 i-MiEV Service manual: Group 54D - Electric Motor Unit and Traction Battery > Electric Motor Control Unit (EMCU) and Motor (Electric Motor Unit) > Trouble Symptom Chart

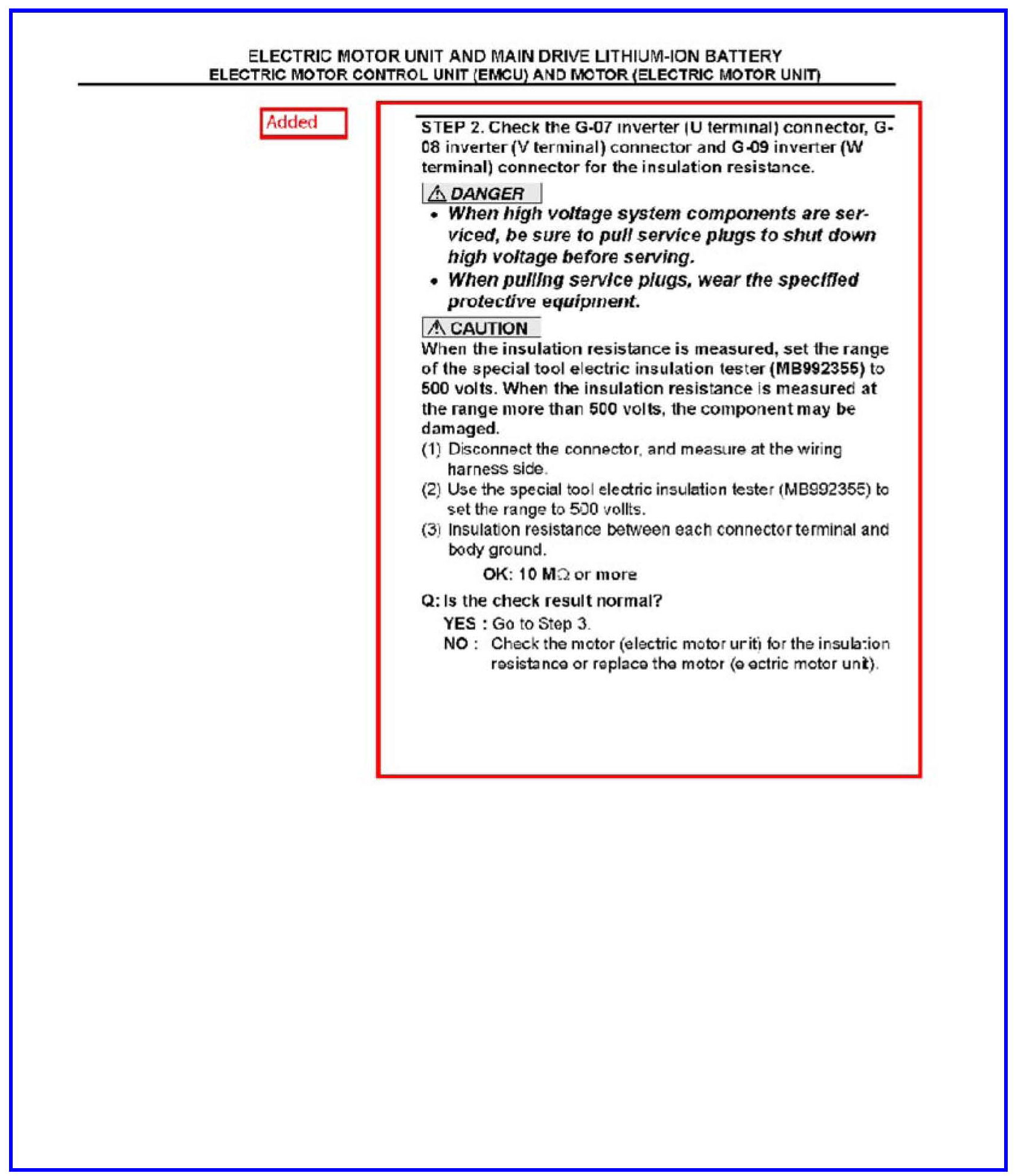

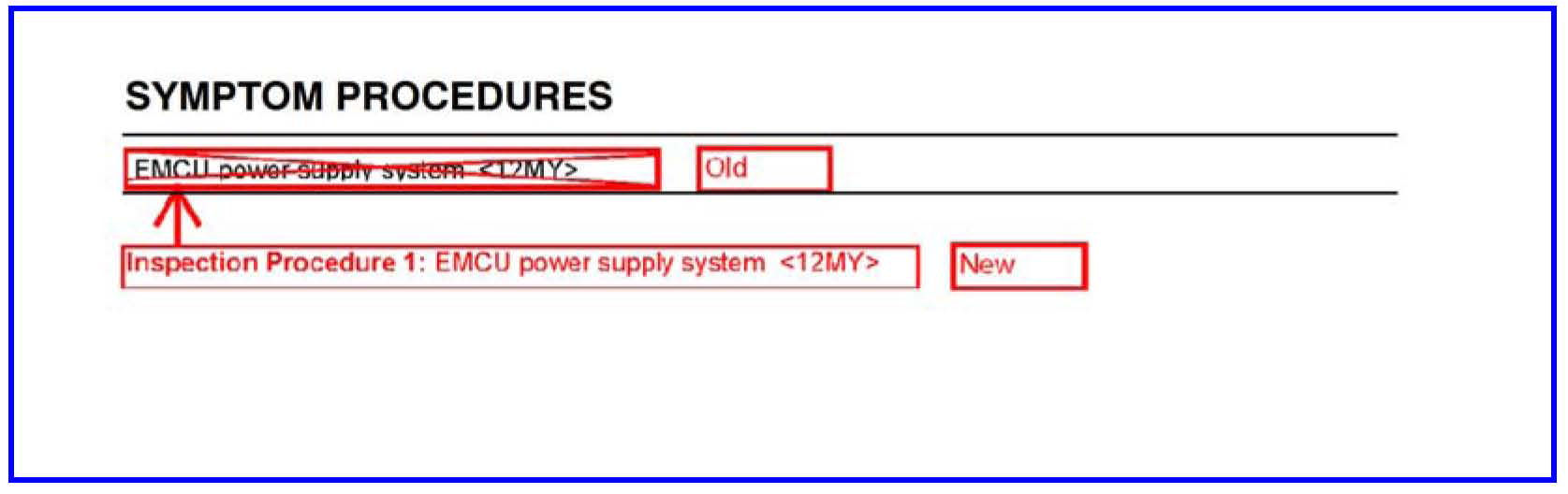

Make the changes to the 2012 i-MiEV Service manual: Group 54D - Electric Motor Unit and Traction Battery > Electric Motor Control Unit (EMCU) and Motor (Electric Motor Unit) > Symptom Procedures.

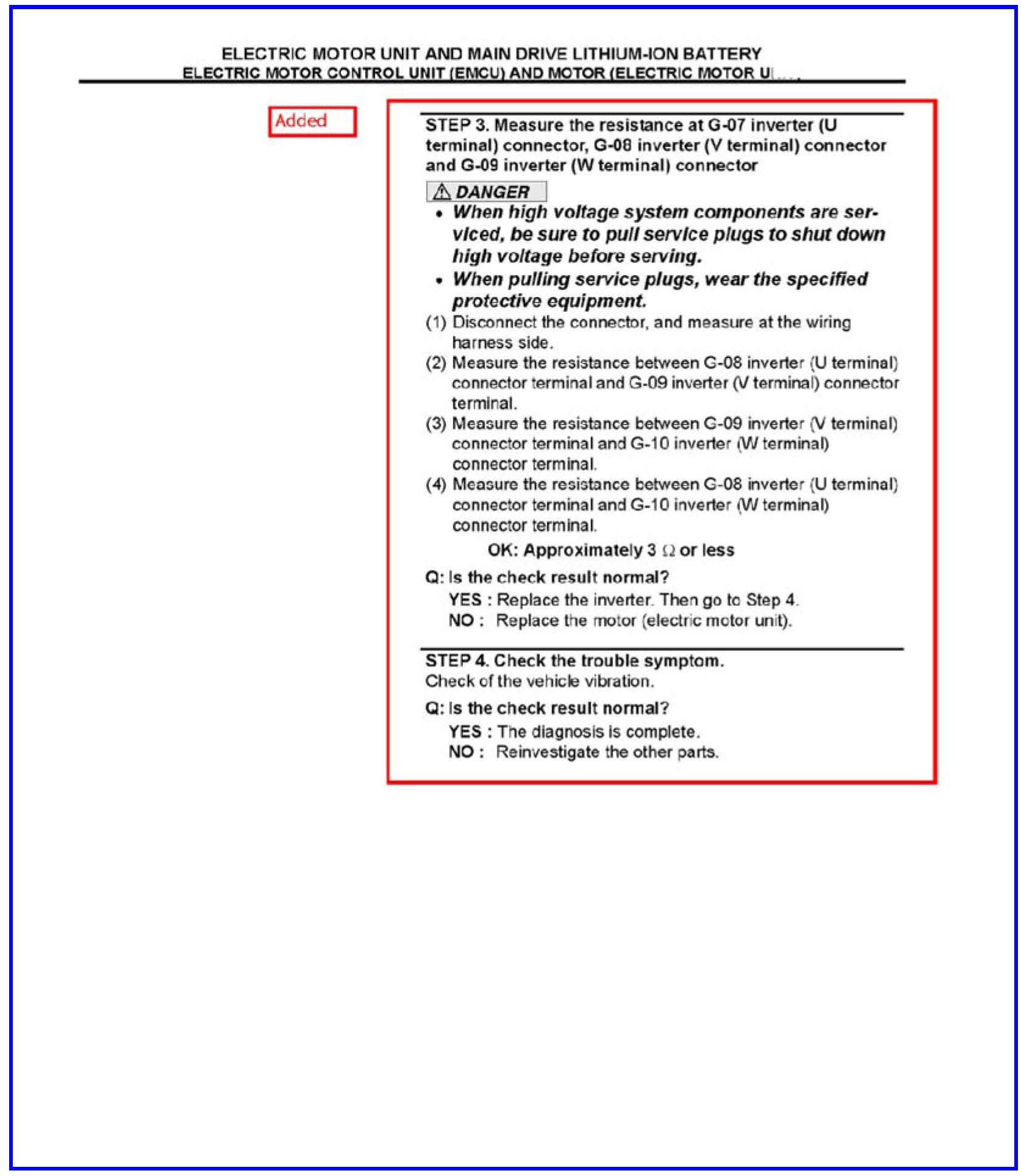

Add the Inspection Procedure 2 to the 2012 i-MiEV Service Manual: Group 54D Electric Motor Unit and Traction Battery > Electric Motor Control Unit (EMCU) and Motor (Electric Motor Unit) after Inspection Procedure 1: EMCU power supply system <12MY>.
