Electric Drive Sys. - Traction Battery Production Date Location
No: TSB-12-00-007DATE: April, 2012
MODEL: 2012 i-MiEV
SUBJECT:
TRACTION BATTERY PRODUCTION DATE
LOCATION - SERVICE MANUAL REVISION
[TSB Revision: TSB-12-00-007]
PURPOSE
The location of the traction battery production date was changed starting with first production. This TSB provides the correct location.
AFFECTED VEHICLES
2012 i-MiEV
AFFECTED SERVICE MANUALS
2012 i-MiEV Group 00: General >> Precautions Before Service >> Procedures for Writing BMU Learning Value >> BMU Learning Value Manual Written
2012 i-MiEV Group 00: General >> Precautions Before Service >> Procedures for Writing BMU Learning Value >> BMU Learning Value Manual Written.

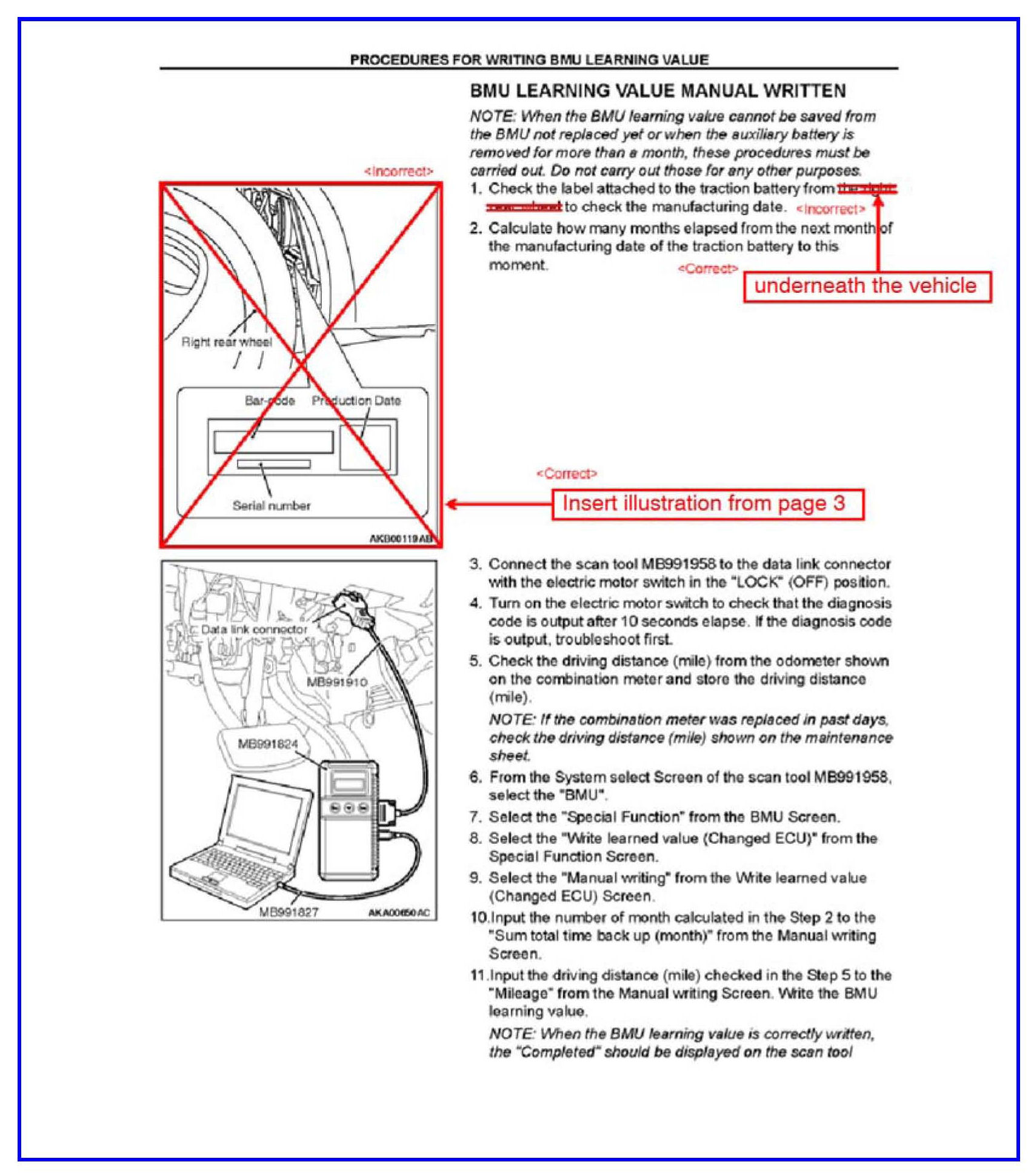

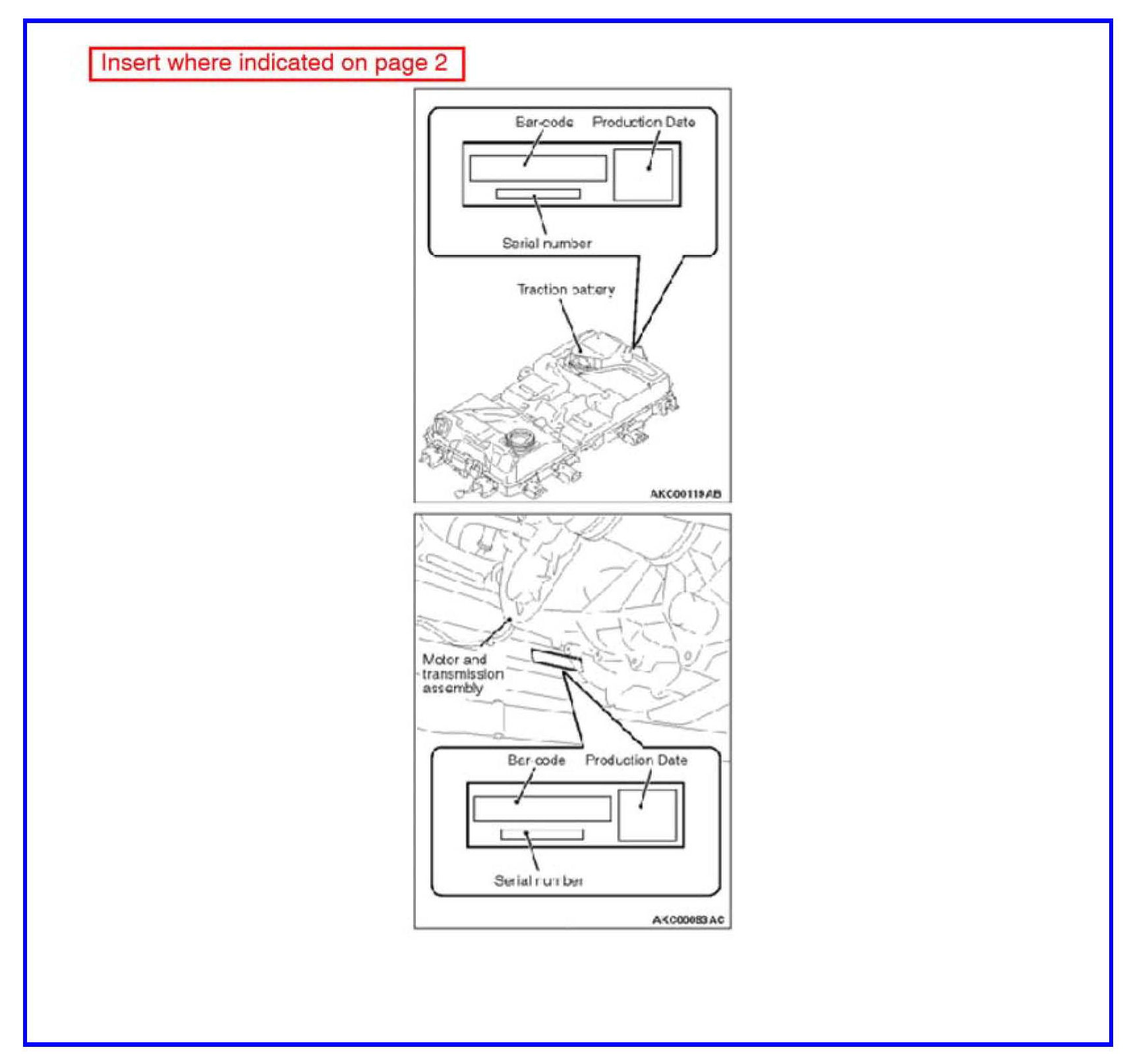

Replace the indicated illustration with the illustration.
