Electrical - Improved 120V Charging Cable Check

No: TSB-12-54-008
DATE: March, 2012
MODEL: 2012 i-MiEV

SUBJECT:

CHARGING CABLE CHECK - SERVICE MANUAL
REVISION

[TSB Revision: TSB-12-54-008]

PURPOSE





The improve the troubleshooting procedure of the Level 1 (120V) charging cable check in the service manual. Also, the standard value of the check of the regular charging plug built-in switch has changed.
This TSB updates this information in the service manual.

AFFECTED VEHICLES

2012 i-MiEV

AFFECTED SERVICE MANUALS

2012 i-MiEV Group 54D - Electric Motor Unit and Traction Battery - On Board Charger/DC-DC
Converter (OBC)

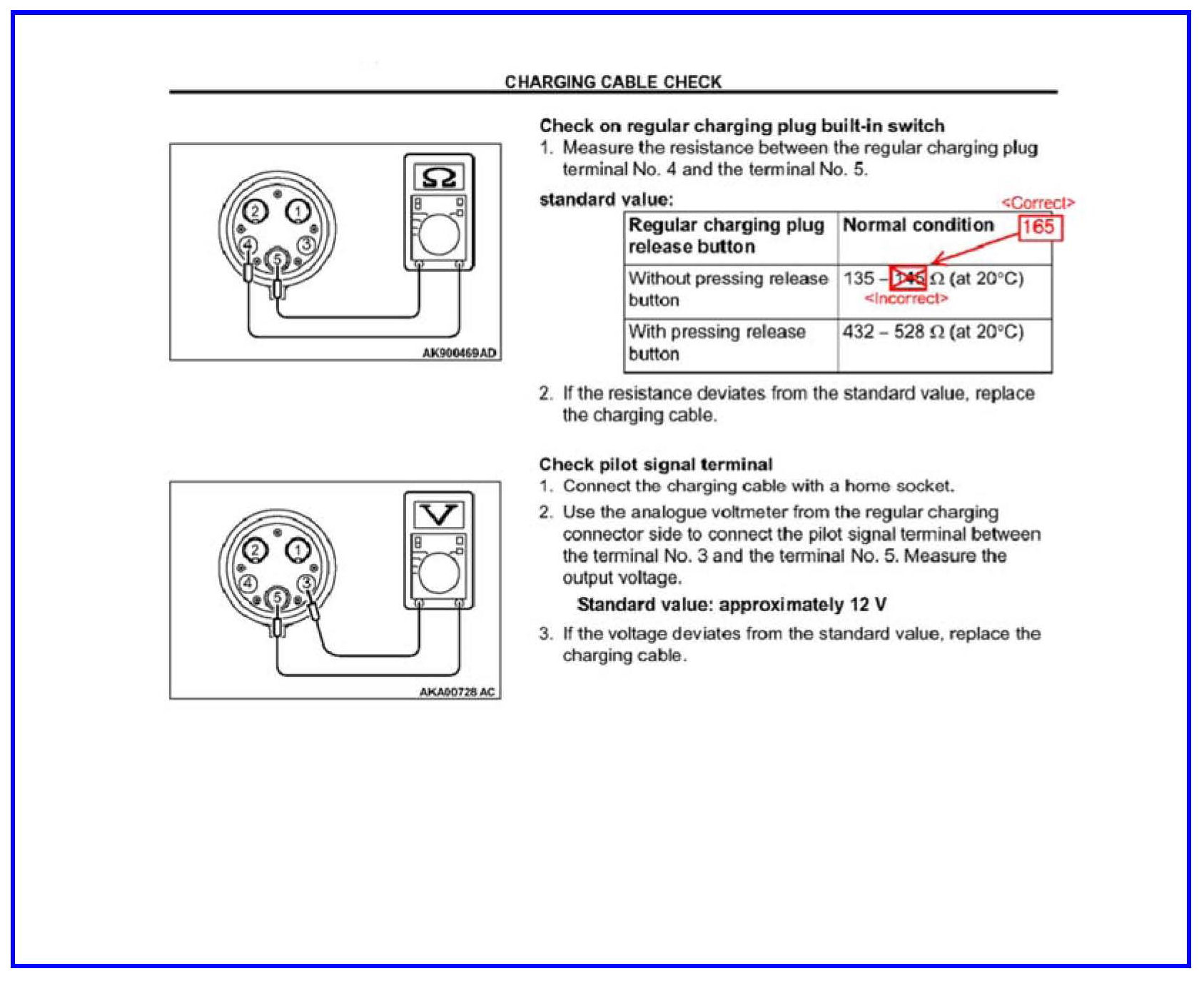

Replace the information in the service manual as shown:
2012 i-MiEV Group 54D - Electric Motor Unit and Traction Battery -On Board Charger/DC-DC Converter (OBC) - Service Specifications

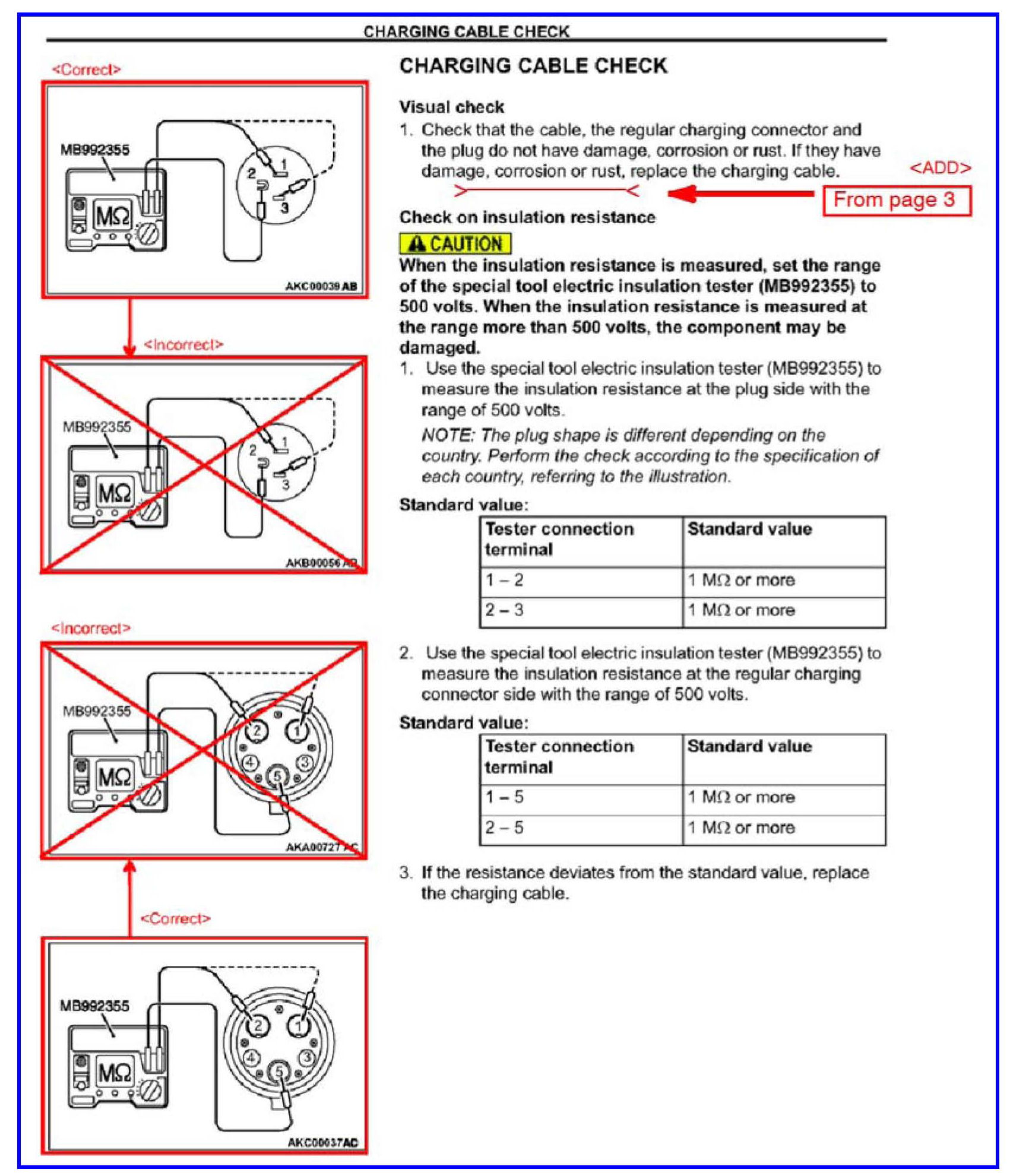

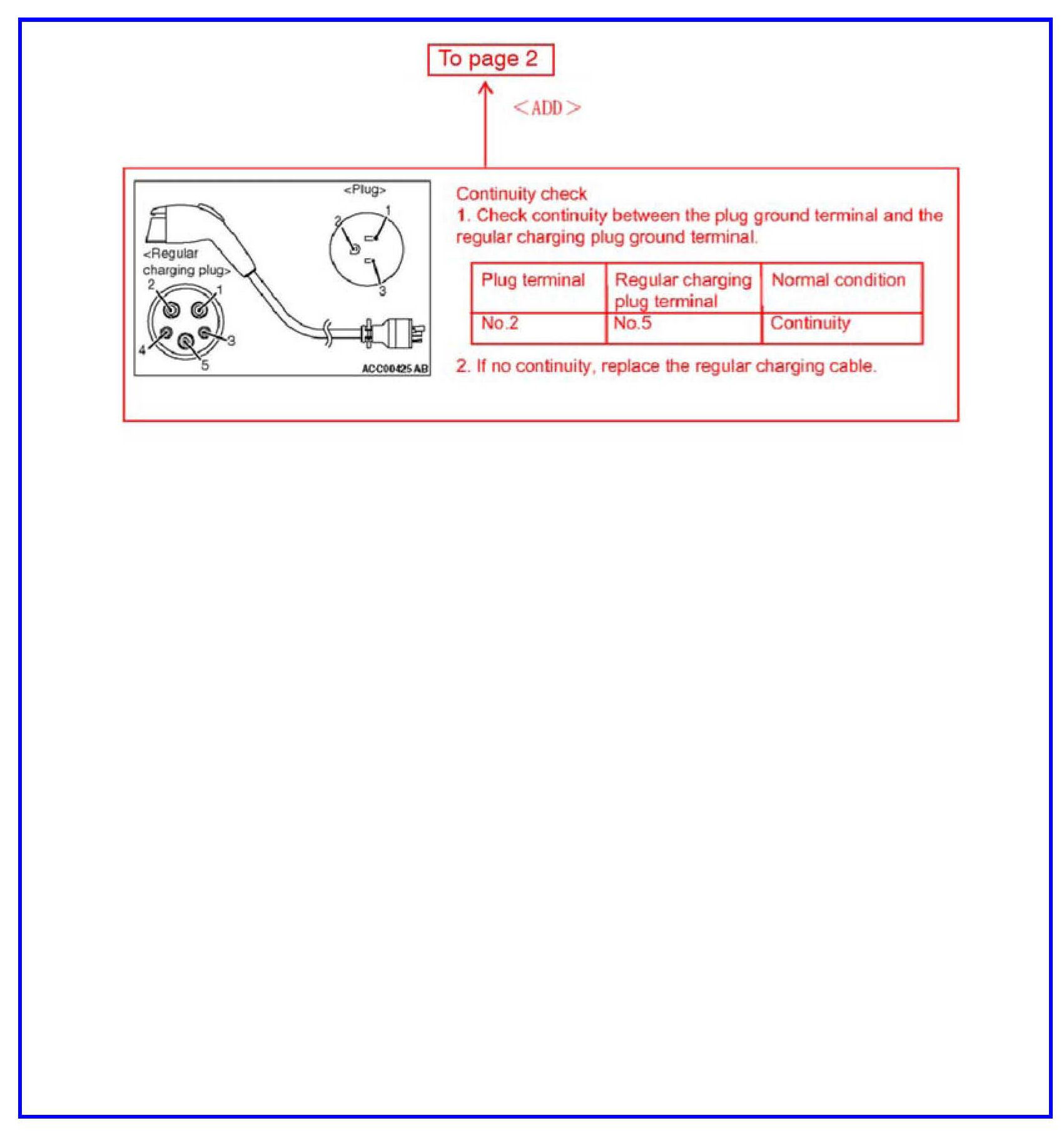

Replace the information in the service manual as shown:














2012 i-MiEV Group 54D - Electric Motor Unit and Traction Battery >> On Board Charger/DC-DC Converter (OBC) >> Charging Cable Check
