Interior - Glove Box Sticks/Won't Open
No: TSB-12-52A-001DATE: January, 2012
MODEL: 2012 iMiEV
SUBJECT:
GLOVE BOX STICKS/WILL NOT OPEN
PURPOSE
Customers of some affected vehicles may report the glove box is difficult to open. In some rare cases they may report the glove box will not open.
A burr at the opening in the instrument panel where the latch rod secures the glove box may prevent smooth movement of the latch mechanism. If the glove box handle is operated with rapid force to overcome a sticking latch the latch mechanism may be damaged.
This TSB provides instructions to identify and repair a sticking glove box and how to replace the latch mechanism if necessary.
AFFECTED VEHICLES
2012 iMiEV up to and including VIN - JA3215H15CU010938

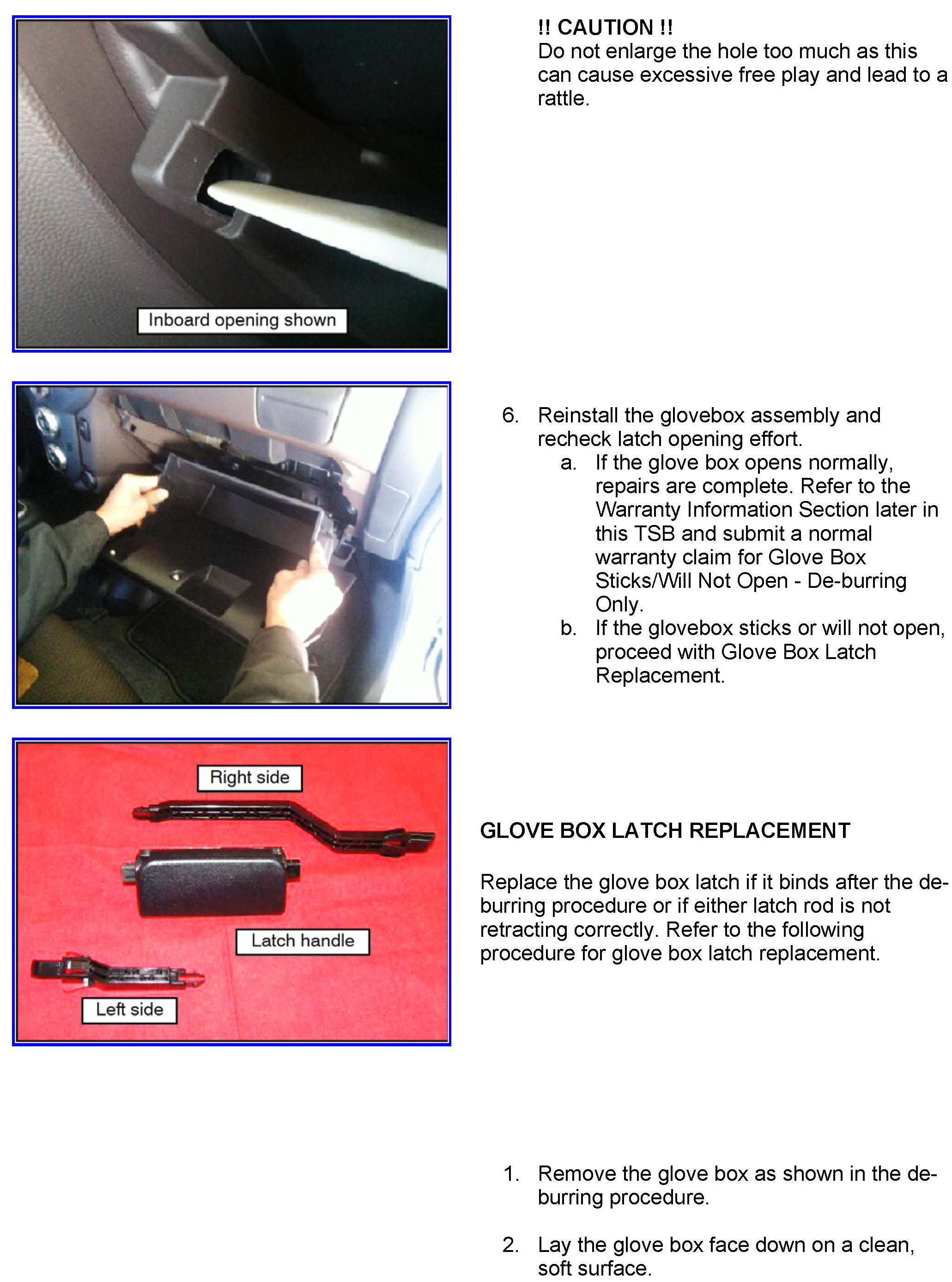

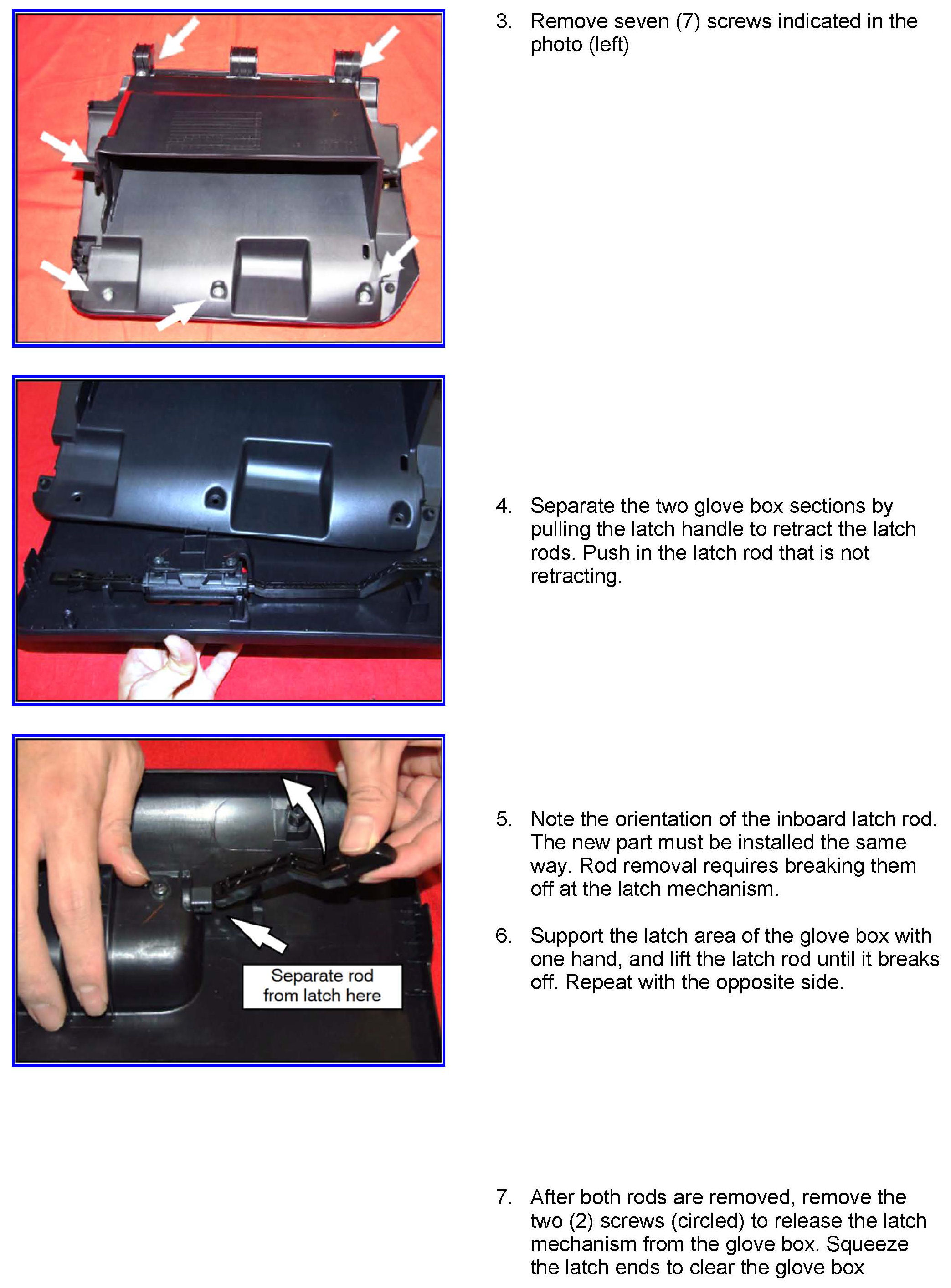

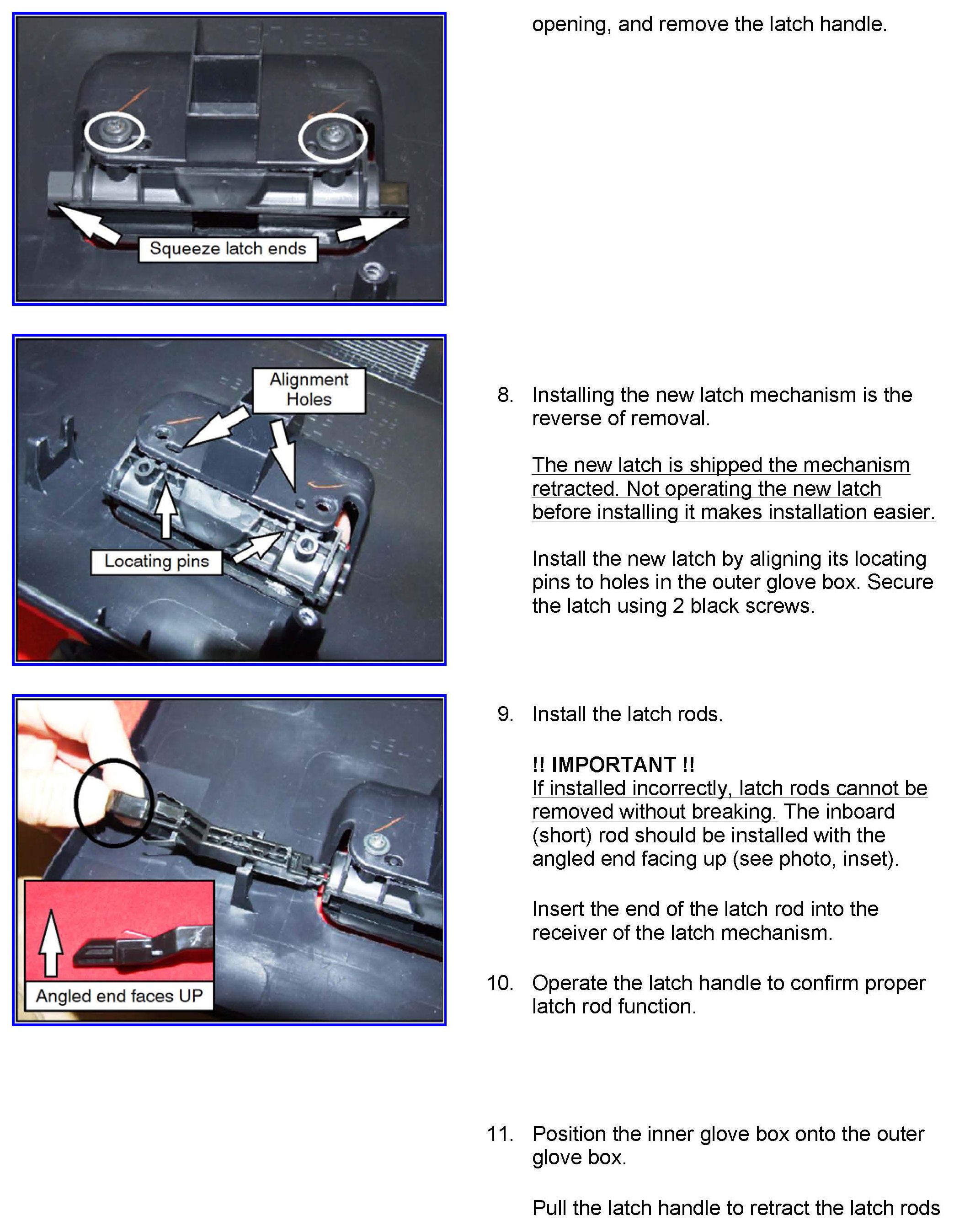

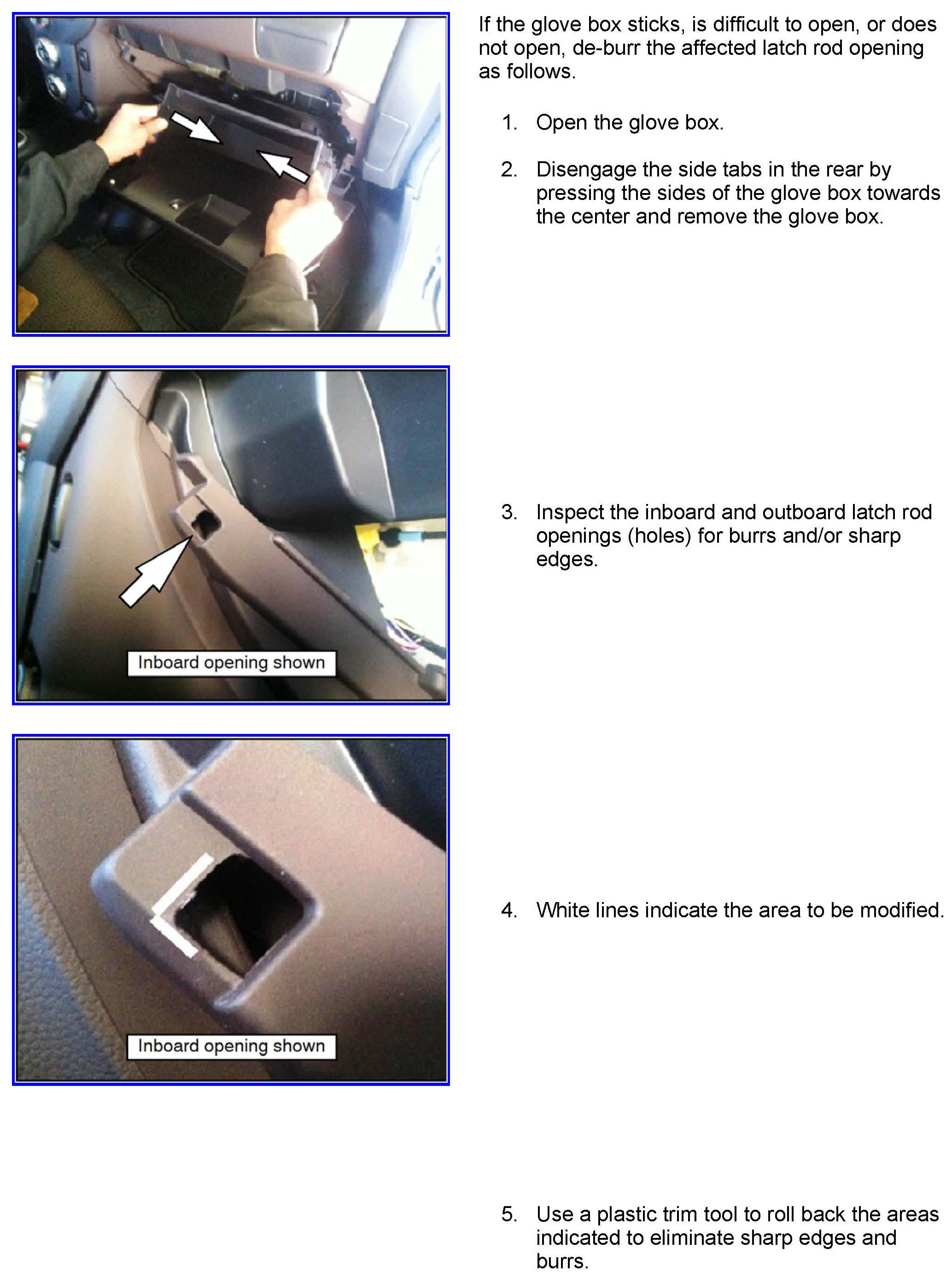

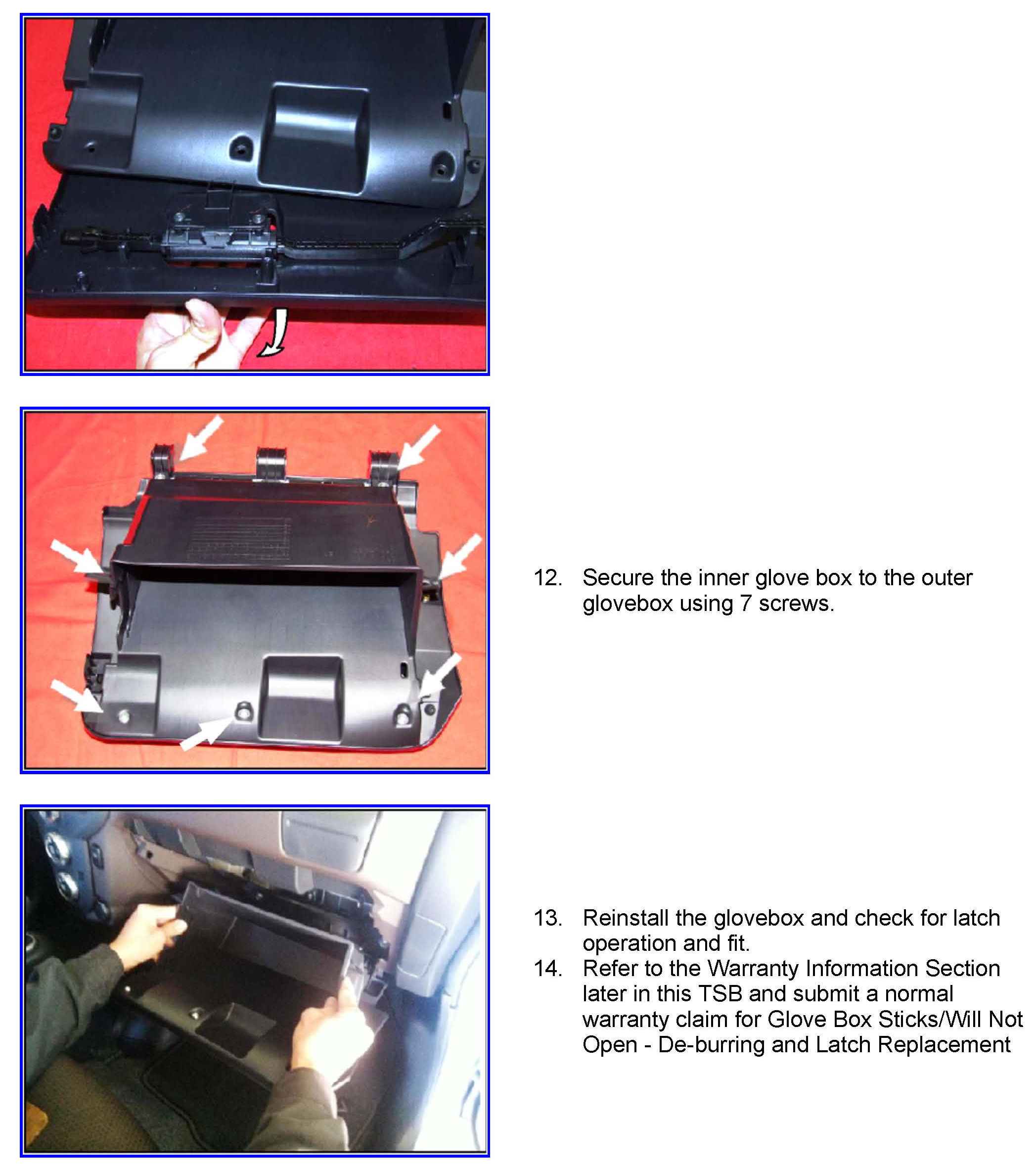

PROCEDURE

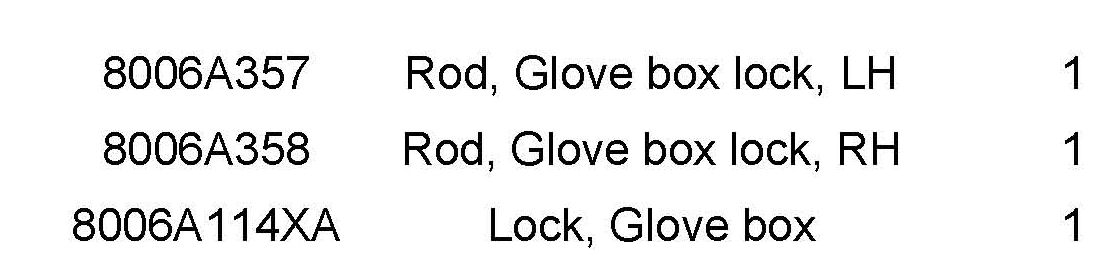

PARTS INFORMATION

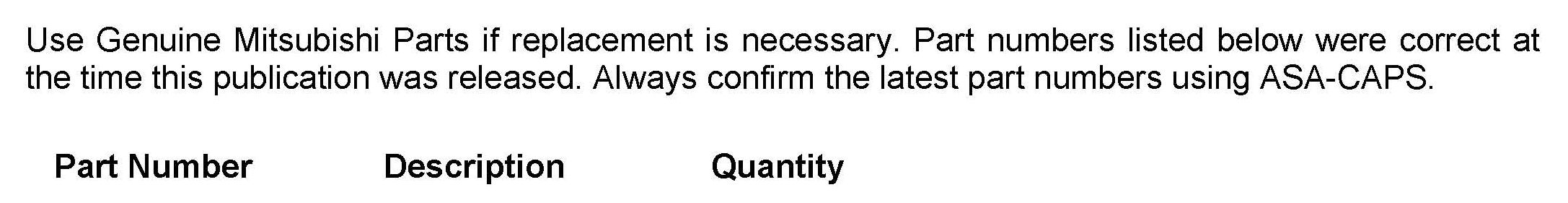

Use Genuine Mitsubishi Parts if replacement is necessary. Part numbers listed below were correct at the time this publication was released. Always confirm the latest part numbers using ASA-CAPS.

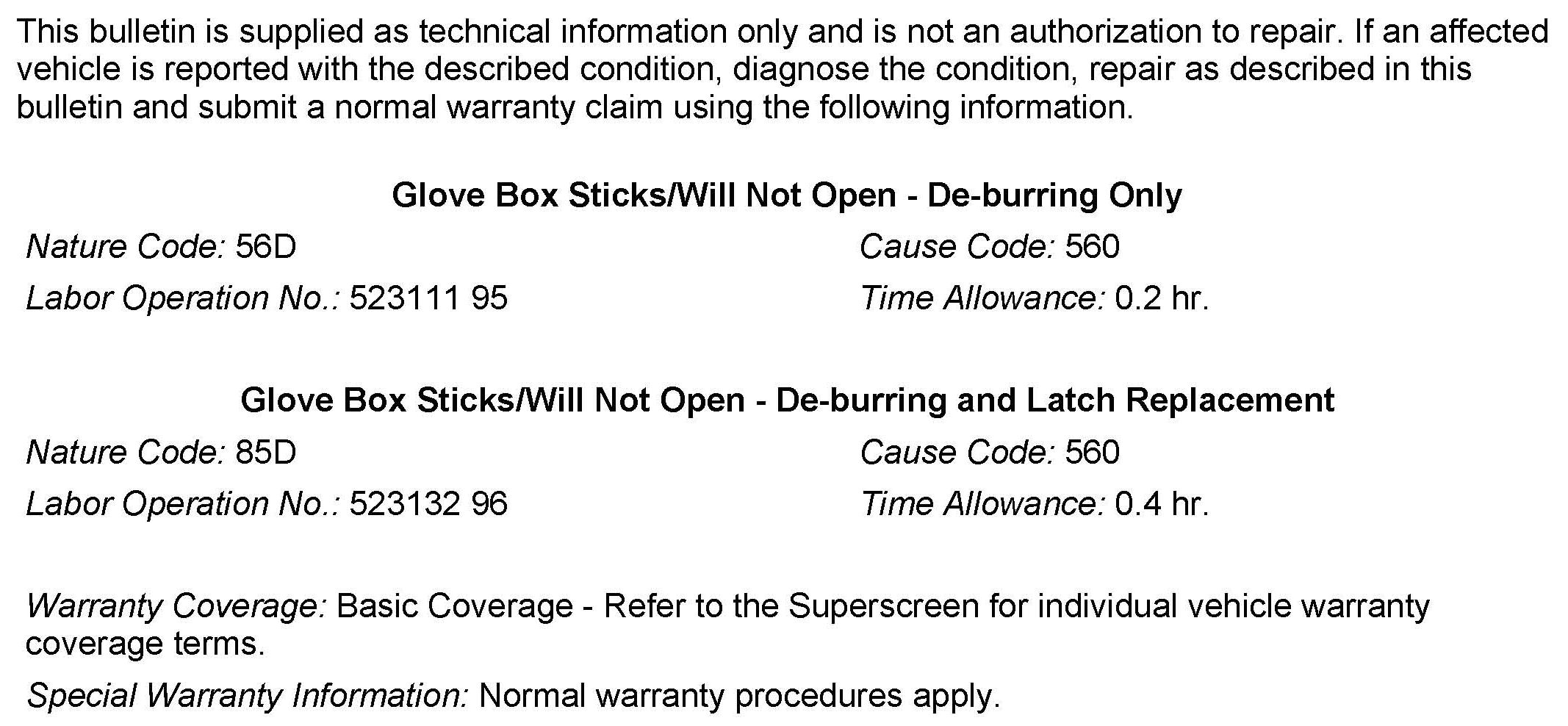

WARRANTY INFORMATION
