Body - Revised Rear Floor Panel Attaching Bolt Image

No.: TSB-11-42A-007

DATE: December, 2012

MODEL: 2012 Mitsubishi "i"

SUBJECT:

REAR FLOOR COVER PANEL ATTACHING BOLTS - SERVICE MANUAL REVISION

[TSB Revision: TSB-11-42A-007]

PURPOSE

The drawing of the right rear floor cover panel (tire repair kit cover) attaching bolts is incorrect in the applicable service manual. This TSB contains the corrected illustration

AFFECTED VEHICLES

2012 Mitsubishi "i"

AFFECTED SERVICE MANUALS

2012 Mitsubishi "i" Service Manual page 42A-158

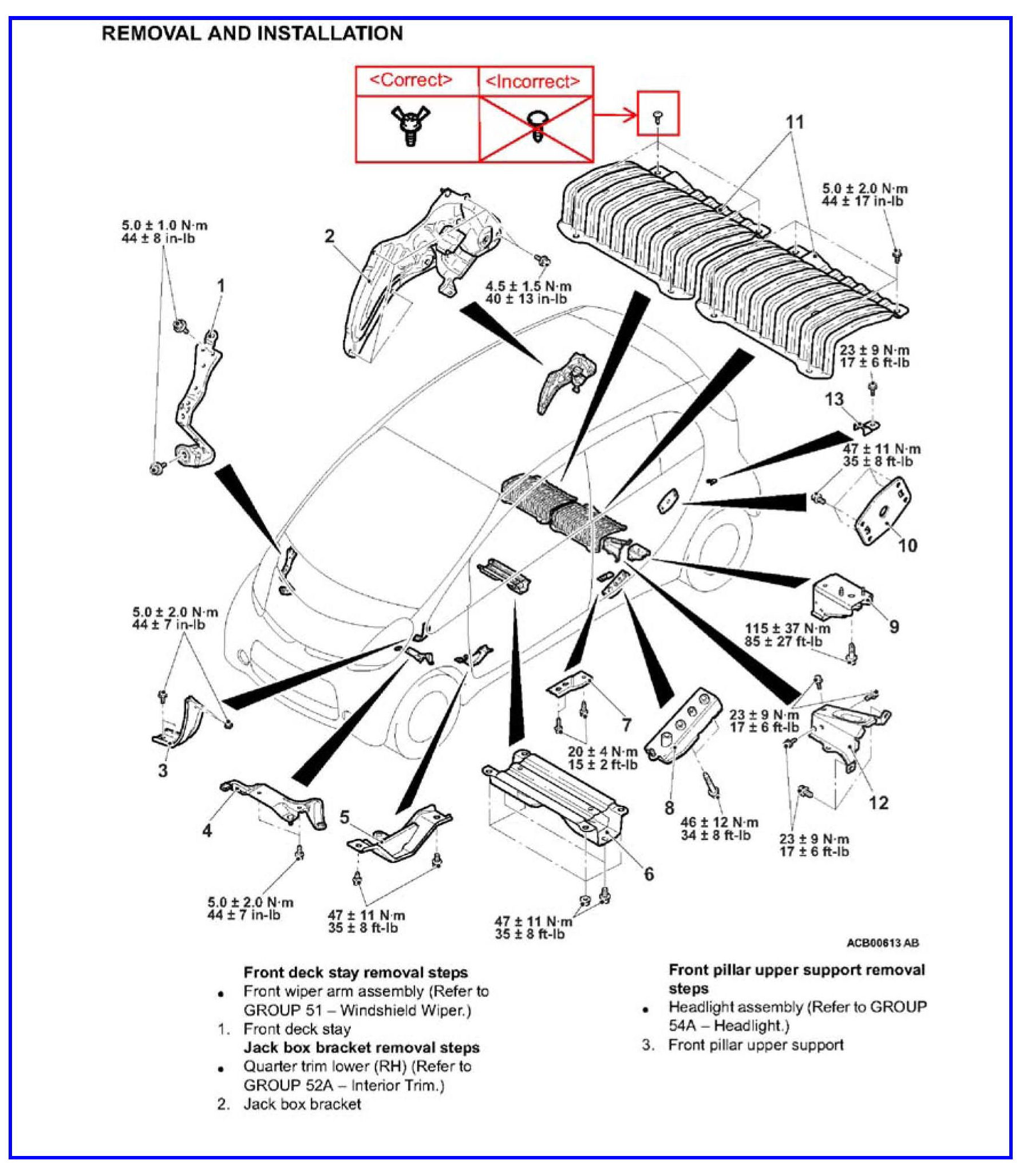

Replace 2012 Mitsubishi "i" Service Manual page 42A-158 with the llustration.
