Select Lever Disassembly and Assembly




DISASSEMBLY AND ASSEMBLY









ASSEMBLY SERVICE POINTS

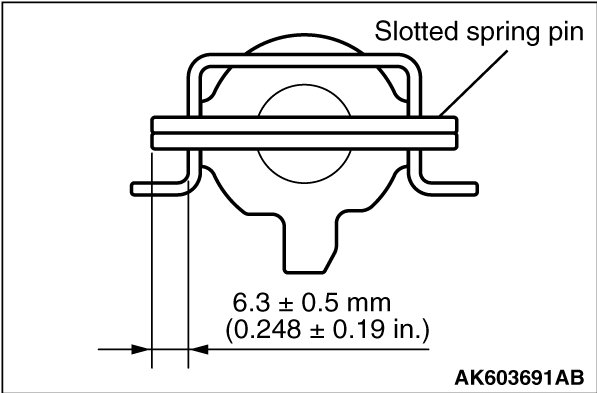

]]A[[ SLOTTED SPRING PIN INSTALLATION





Drive in the slotted spring pin to the illustrated dimension.

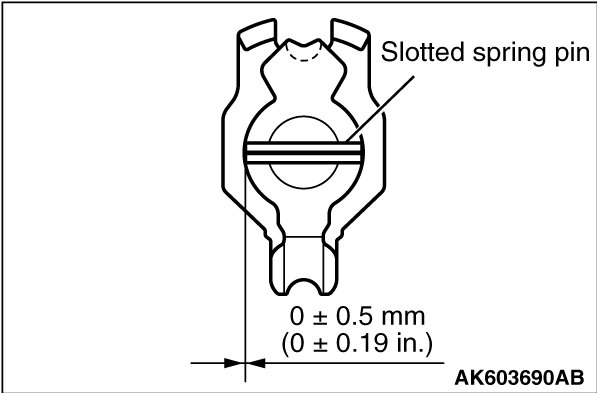

]]B[[ SLOTTED SPRING PIN INSTALLATION





Drive in the slotted spring pin to the illustrated dimension.
