Adjusting Snap Rings and Spacers




ADJUSTING SNAP RINGS AND SPACERS

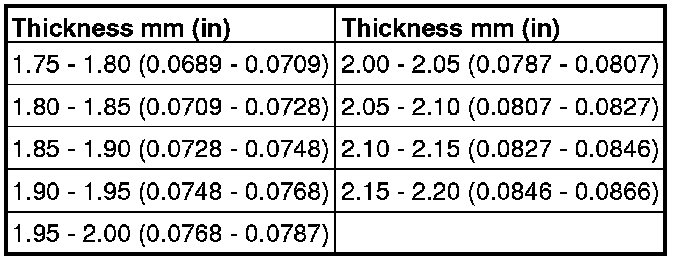

Adjustment shims (for differential side LH tapered roller bearing preload adjustment)

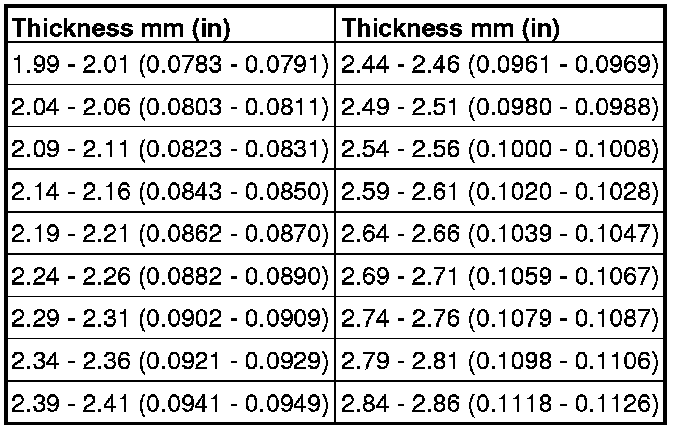

Adjustment shims (for output shaft bearing preload adjustment)

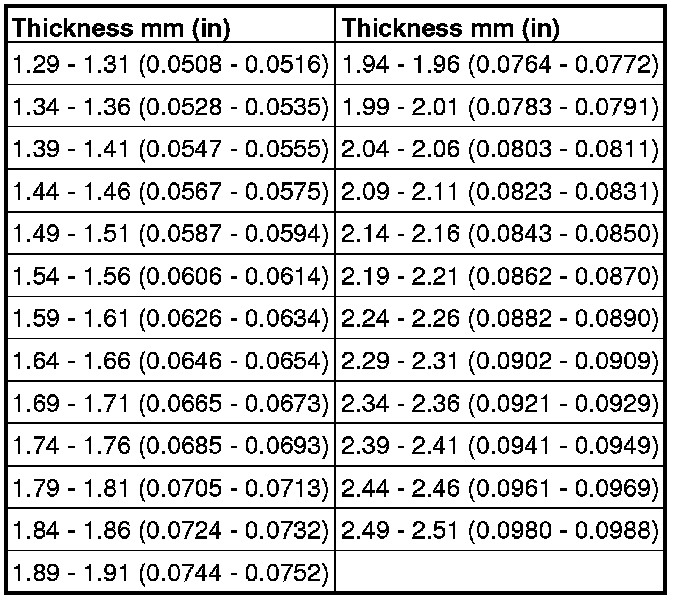

Shaft snap rings (for input shaft synchronizer hub No.3 bushing end play adjustment)
