Drive/Propeller Shaft: Application and ID




GENERAL SPECIFICATIONS

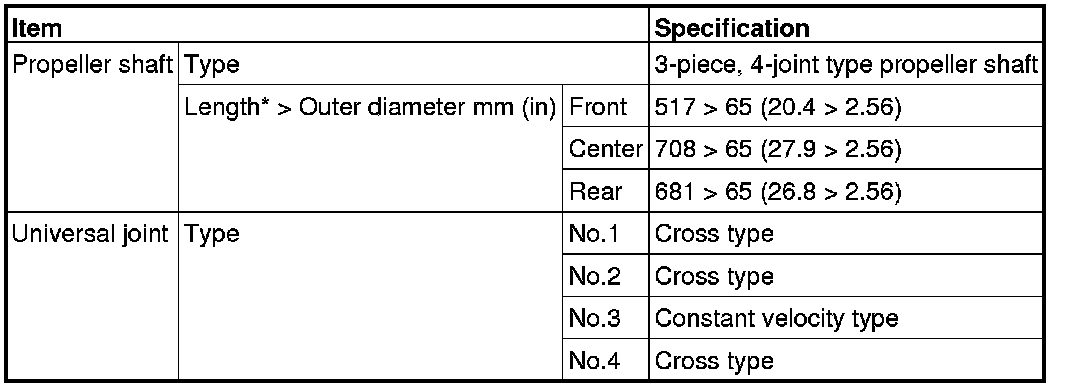

[Type A]

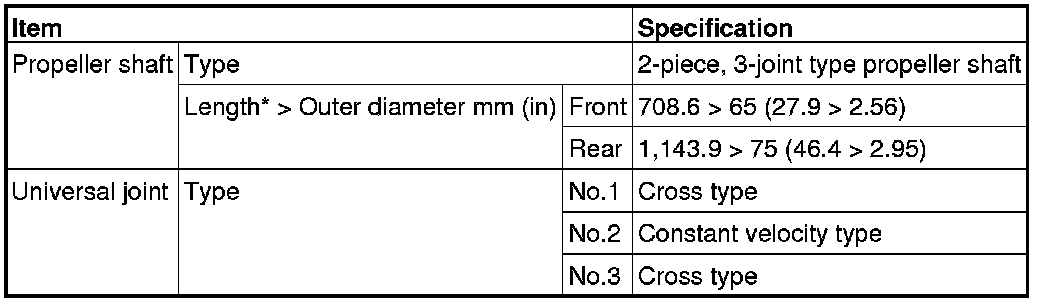

[Type B]






NOTE:
*: Indicates the distance between each joint center.
