Home >> Mitsubishi >> 2012 >> Lancer Sportback L4-2.0L (4B11) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

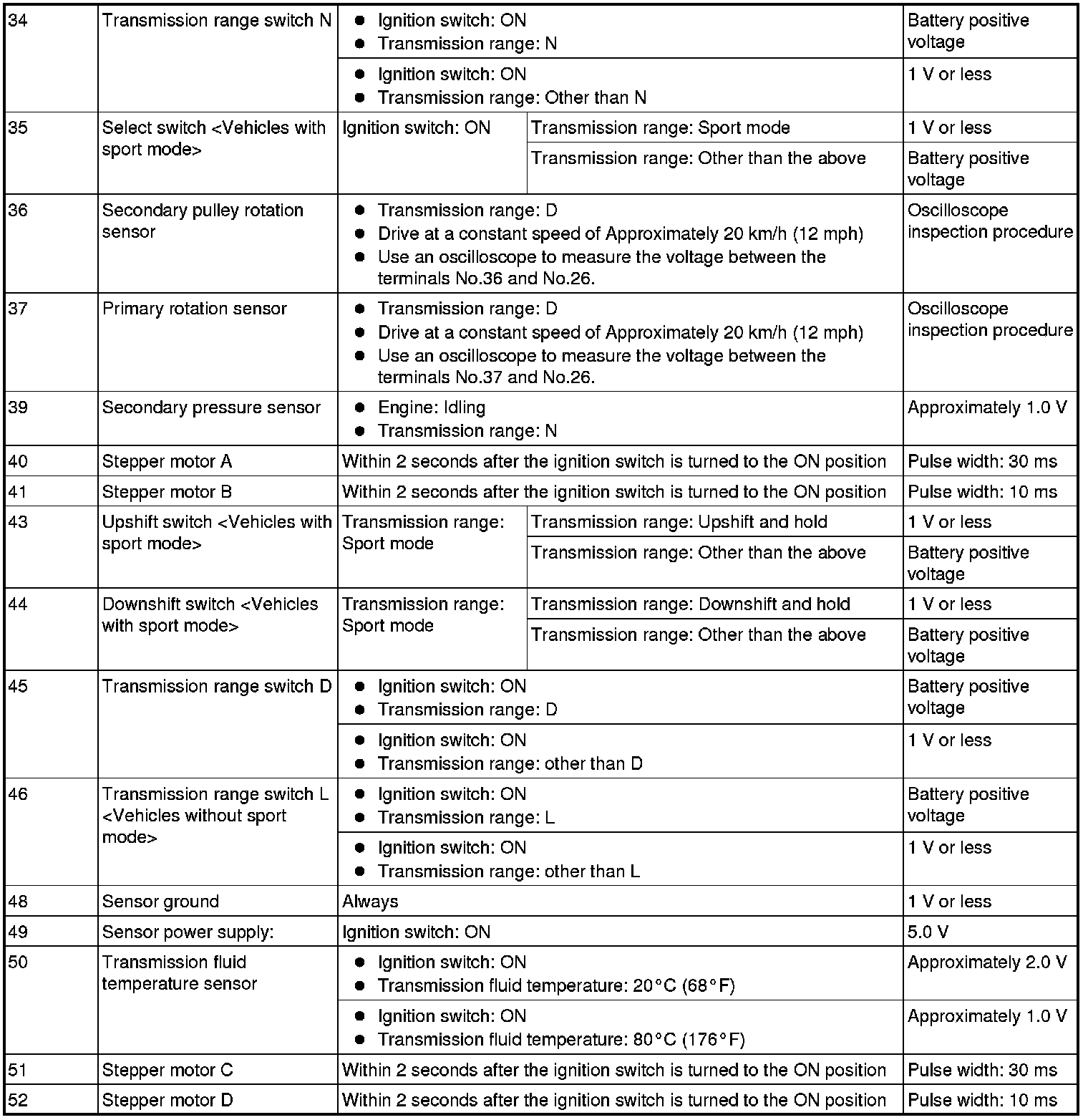

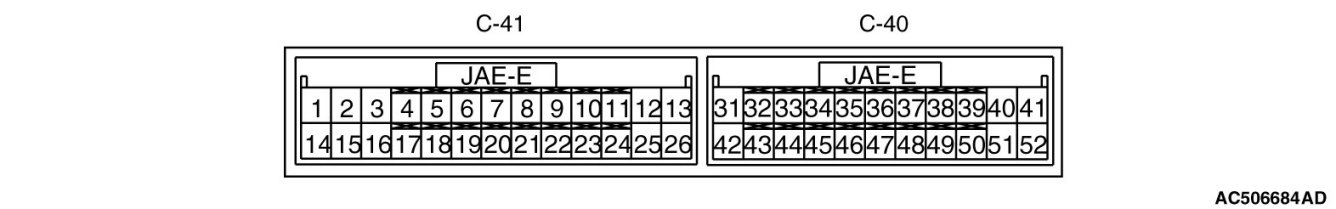

TCM TERMINAL VOLTAGE REFERENCE CHART FOR TRANSAXLE OPERATION
