Key Interlock Mechanism Check

KEY INTERLOCK MECHANISM CHECK/ADJUSTMENT

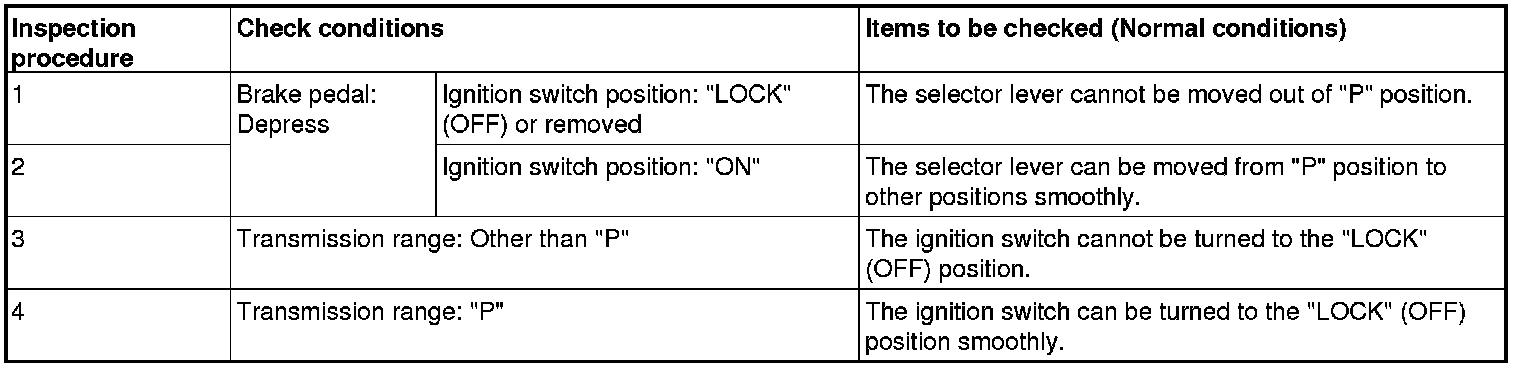

1. Carry out the following check.










2. If the normal conditions are not obtained after performing the above operations, install the key interlock cable in the following procedures. (Automatic adjustment)
(1) Disconnect the key interlock cable connection (selector lever side) (Refer to Service and Repair).
(2)

CAUTION:
Leave the ignition switch in the "LOCK" (OFF) position until the key interlock cable installation is completed.

Move the selector lever to the "P" position and turn the ignition switch to the "LOCK" (OFF) position.

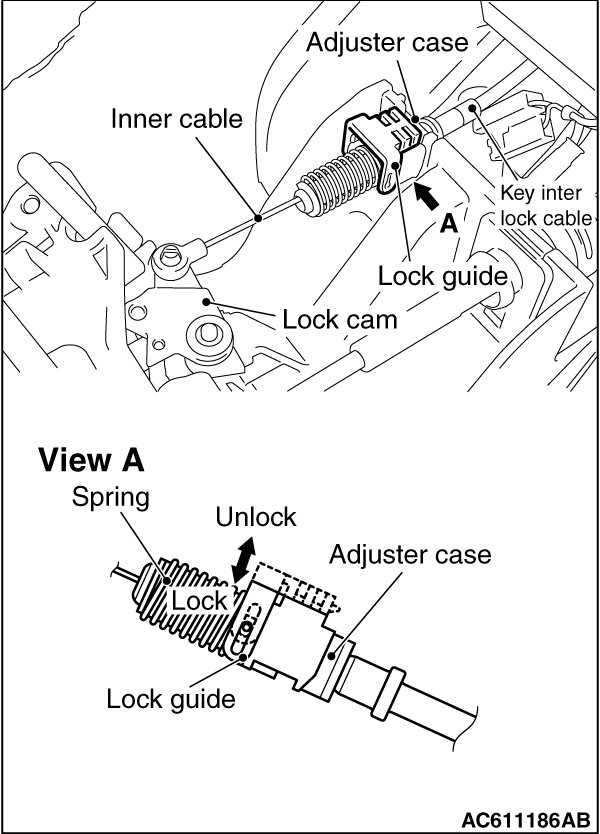

(3) Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
(4) Install the adjuster case with its lock guide pulled up (unlocked).
(5) Securely push down the lock guide to lock it.
NOTE:
The lock position of the key interlock cable is automatically adjusted by a spring.
