Differential Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY









- MB990810: Side bearing puller

- MB991452: Oil seal installer

- MD998812: Installer cap

- MD998813: Installer-100

- MD998823: Installer adapter (48)

- MB992138: Bearing Installer

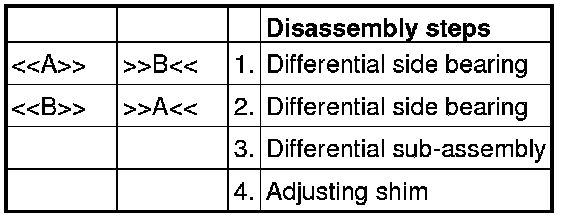

DISASSEMBLY SERVICE POINT

[[A]] DIFFERENTIAL SIDE BEARING REMOVAL

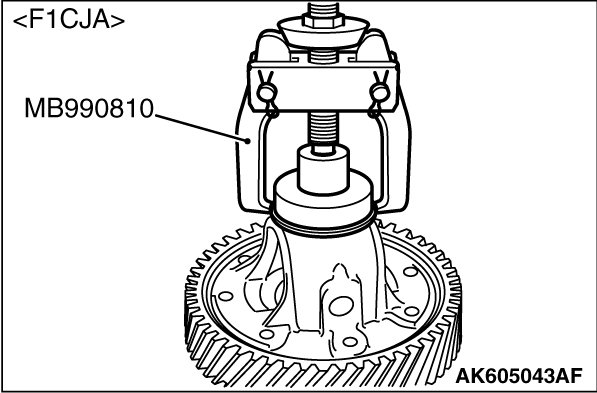

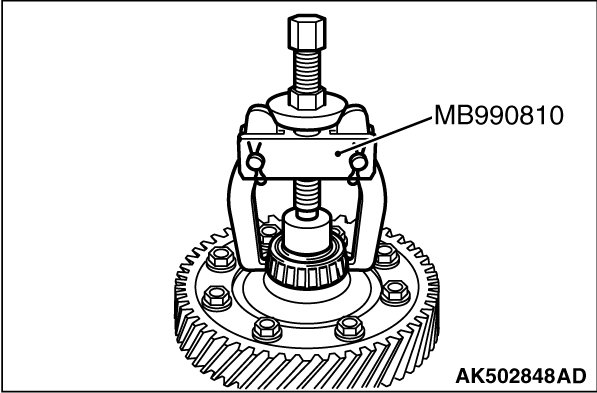

Using the special tool MB990810, remove the inner race of differential side bearing (transaxle case side) from the differential sub-assembly.

[[B]] DIFFERENTIAL SIDE BEARING REMOVAL

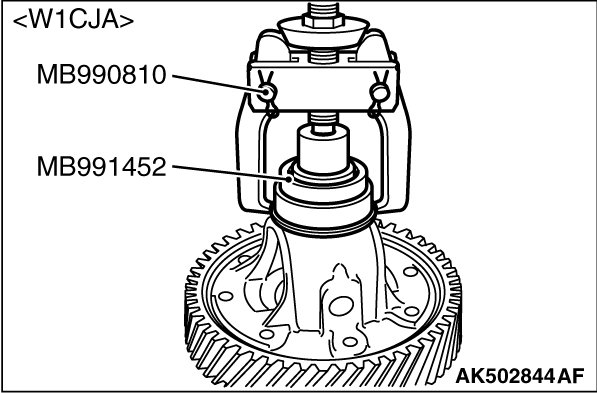

Using the special tools MB990810 and MB991452 [W1CJA], remove the inner race of differential side bearing (converter housing side) from the differential sub-assembly.

ASSEMBLY SERVICE POINT

]]A[[ DIFFERENTIAL SIDE BEARING INSTALLATION









CAUTION:

- Do not re-use the inner race.

- Replace the inner race together with the outer race.

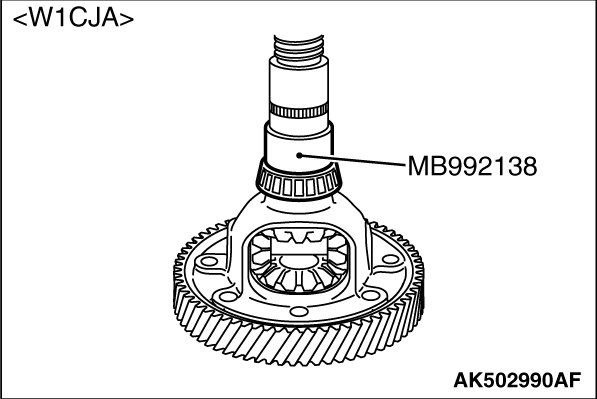

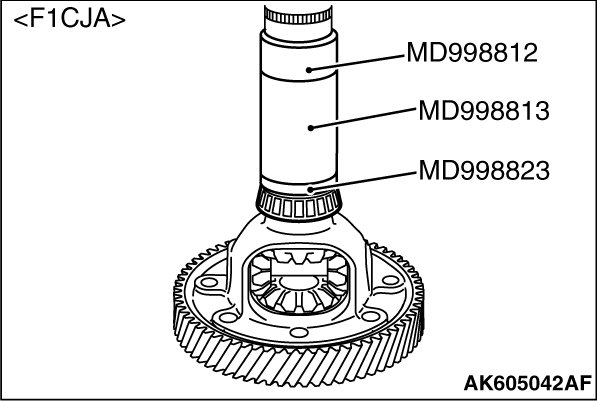

Using the special tool MD998812,MD998813 and MD998823 [F1CJA] or MB992138 [W1CJA], install the inner race of reduction gear bearing (converter housing side) on the reduction gear sub-assembly.

]]B[[ REDUCTION GEAR BEARING INSTALLATION





CAUTION:

- Do not re-use the inner race.

- Replace the inner race together with the outer race.

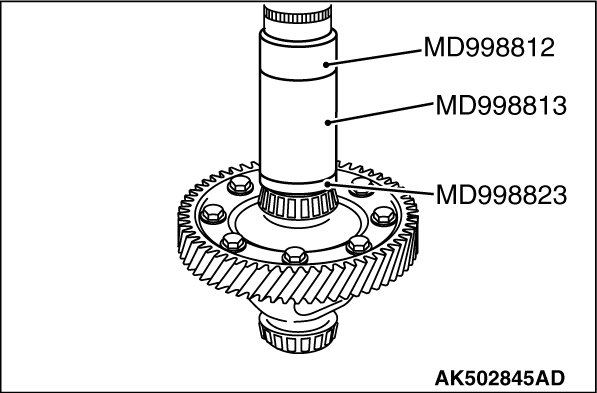

Using the special tools MD998812, MD998813 and MD998823, install the inner race of reduction gear bearing (transaxle case side) on the reduction gear sub-assembly.
