Rear Suspension

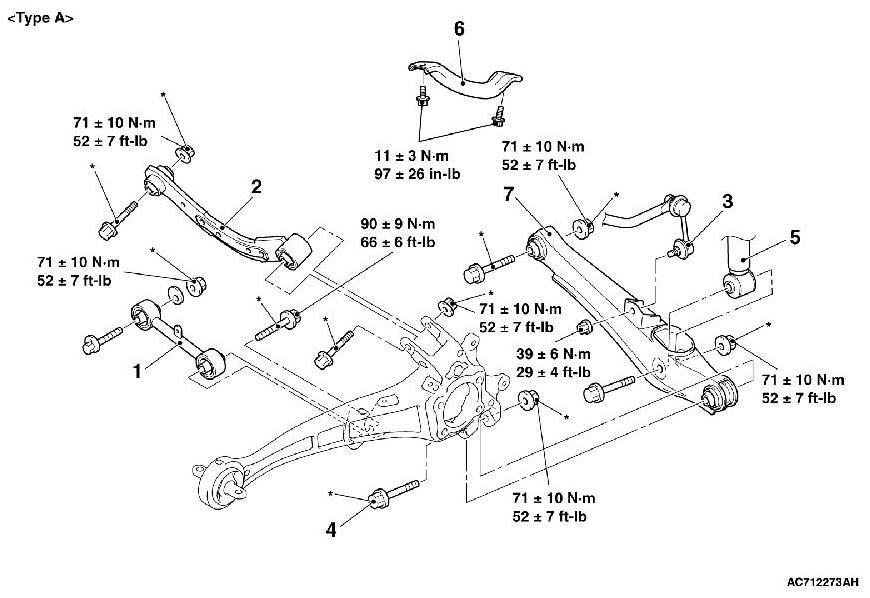

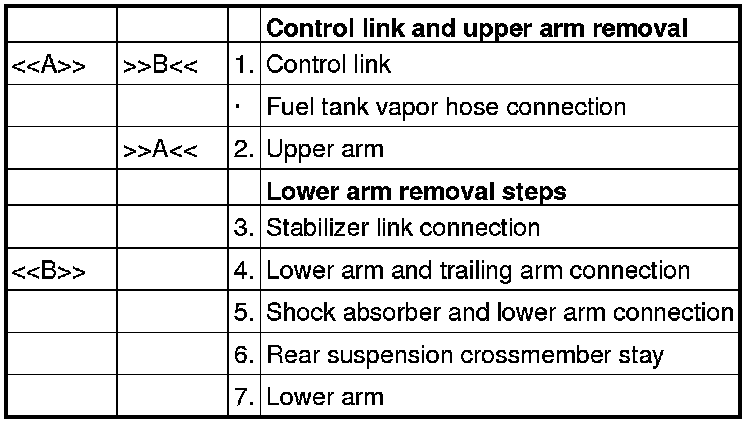

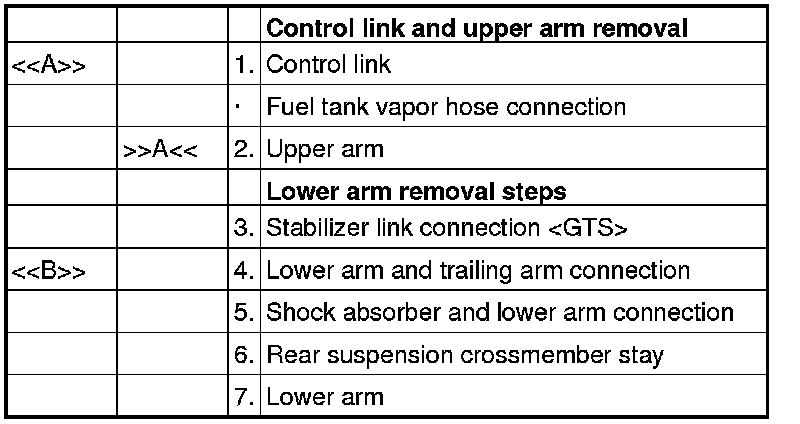

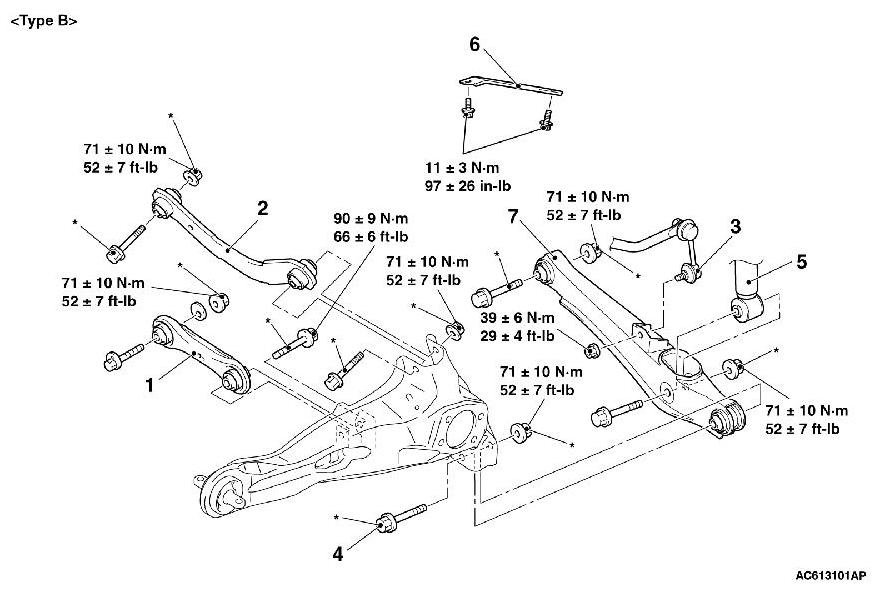

REMOVAL AND INSTALLATION

CAUTION:
The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.





















REMOVAL SERVICE POINTS

[[A]] CONTROL LINK REMOVAL

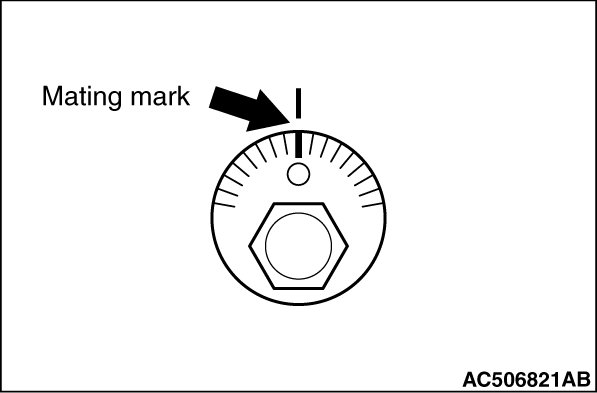

Make a mating mark on the toe adjusting bolt, and remove the control link.

[[B]] LOWER ARM AND TRAILING ARM DISCONNECTION





While jacking-up the lower arm with garage jack, remove the mounting bolts.

INSTALLATION SERVICE POINTS

]]A[[ UPPER ARM INSTALLATION

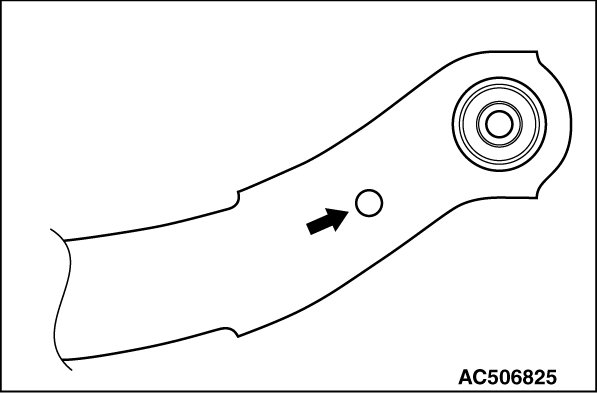

Install the upper arm so that the hole faces the body side.

]]B[[ CONTROL LINK INSTALLATION

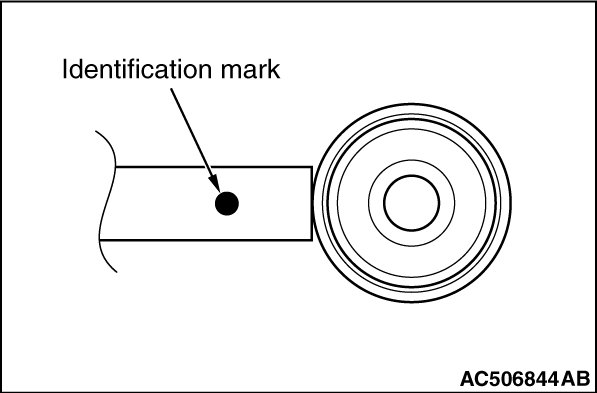

Install the control link so that the identification mark faces the outside of the body.
