Symptom Chart

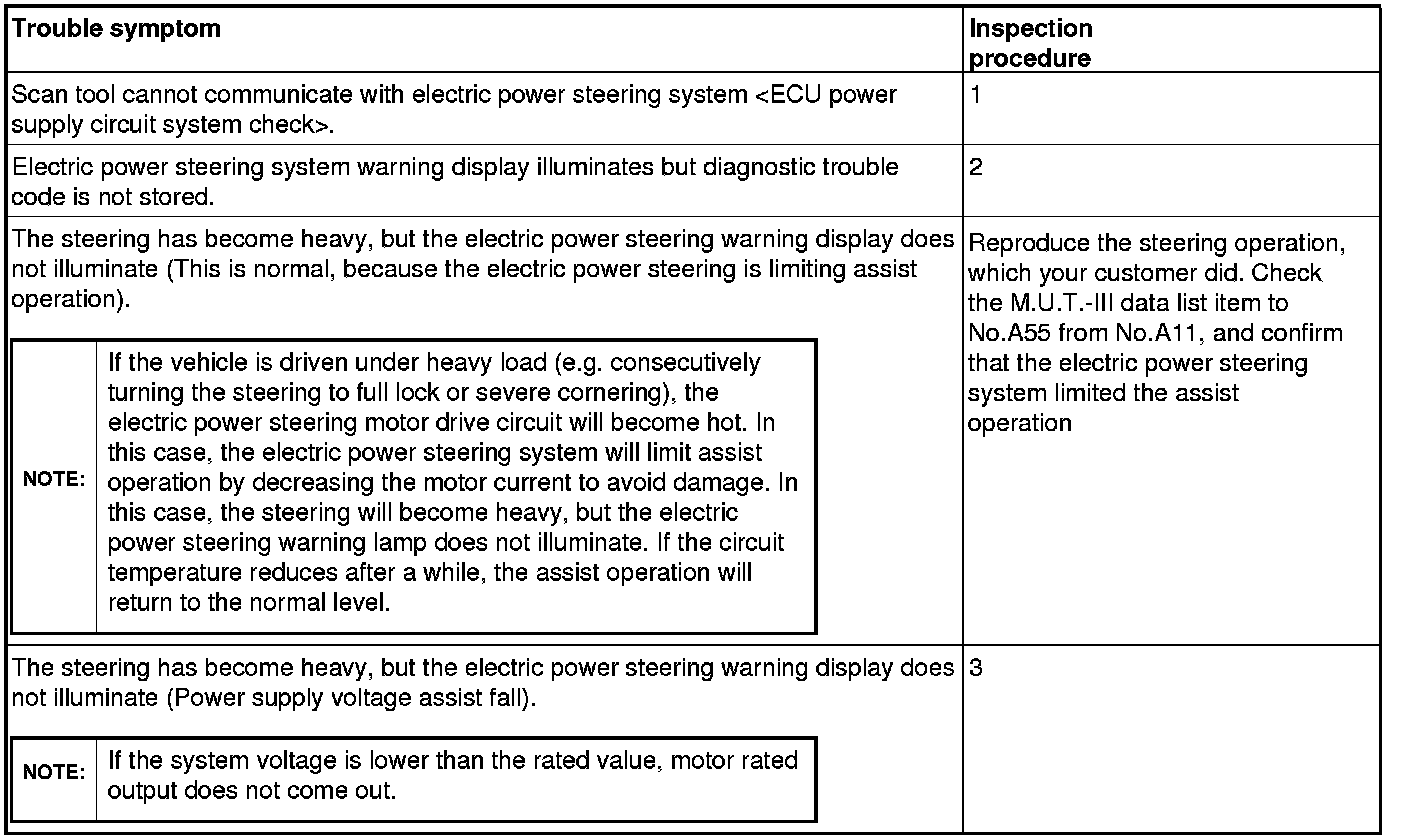

TROUBLE SYMPTOM CHART

CAUTION:
During troubleshooting, a DTC associated with another system may be set when the ignition switch is turned on with connector(s) disconnected.
On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.
