Steering Angle Check

STEERING ANGLE CHECK

CAUTION:
After adjusting the steering angle, always perform calibration to make ASC-ECU learn the neutral position of the steering wheel sensor Testing and Inspection) [Vehicles with ASC].

1. Check that the wheel alignment is normal. Front Suspension.)





2. Place the front wheel onto the turning radius gauge, and measure the steering angle.
Standard value:

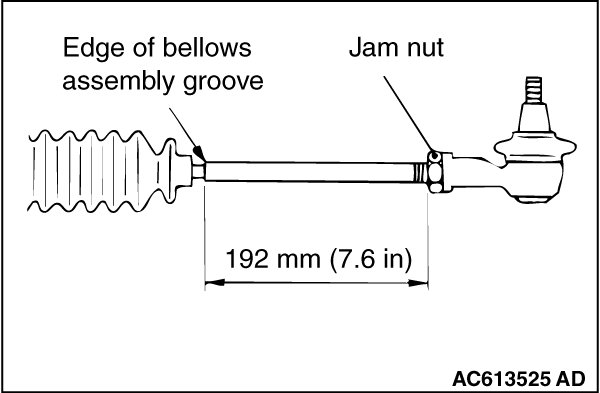

3. If the measured value is not within the standard value, adjust the tie-rod ends (right and left), and repeat Steps 1 and 2.
4. If the measured value is not within the standard value after performing Step 3, replace the steering gear and linkage assembly. (Refer to Electrical Power Steering System (EPS).)
