Home >> Mitsubishi >> 2012 >> Lancer Sportback L4-2.0L (4B11) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Twin Clutch-Sportronic Shift Transmission (TC-SST)

Twin Clutch-Sportronic Shift Transmission (TC-SST)

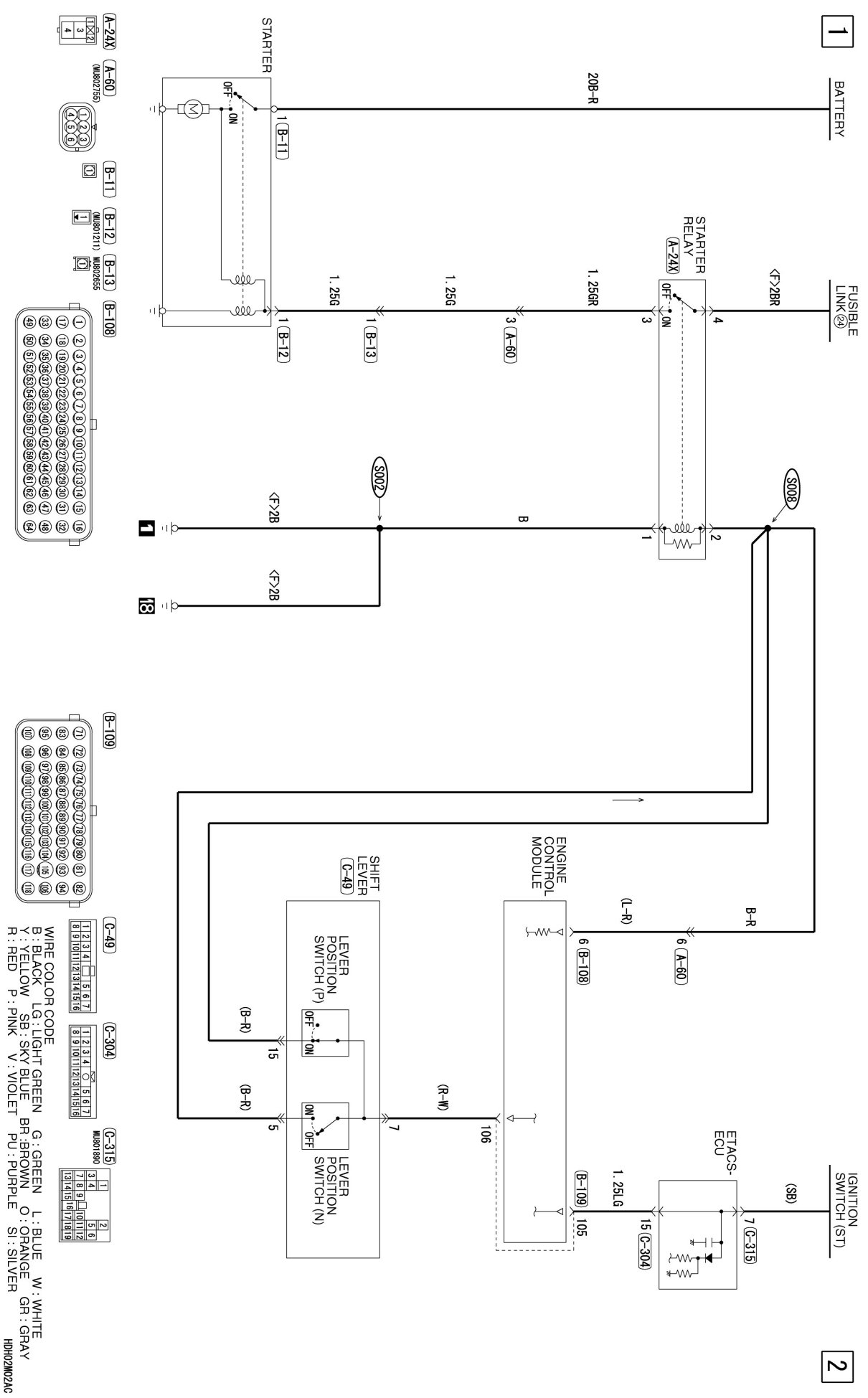

STARTING SYSTEM [TC-SST]
