Throttle Body and EGR System Removal and Installation

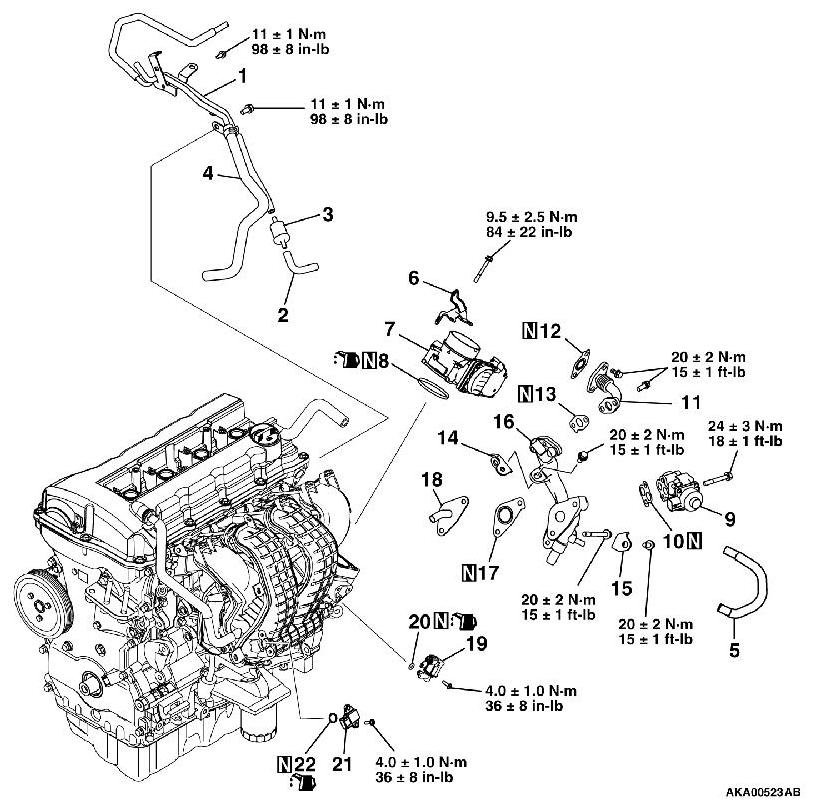

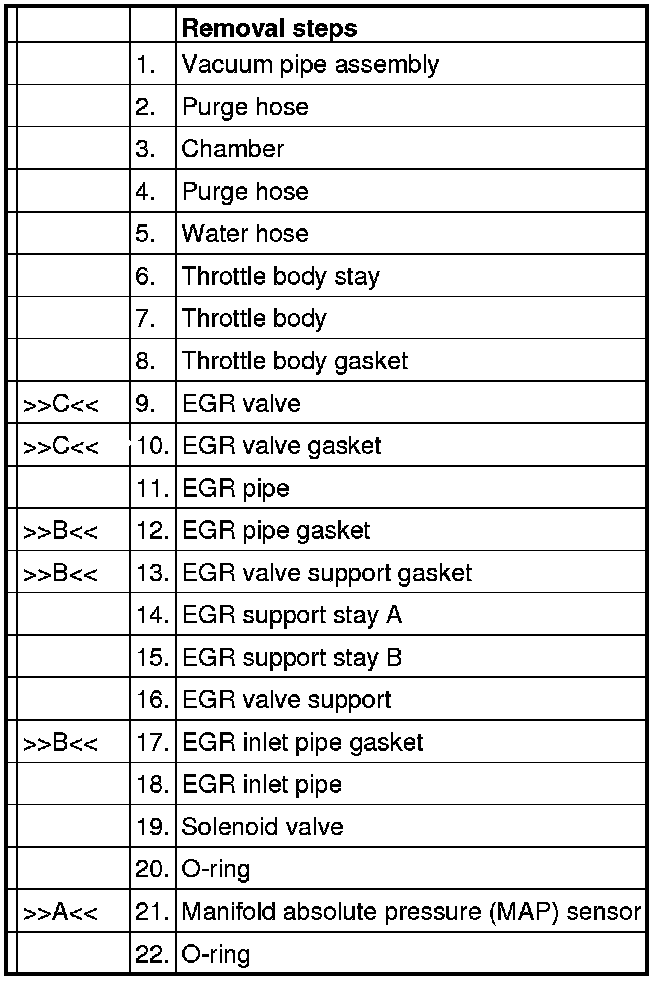

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINTS

]]A[[ MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSTALLATION

CAUTION:

- Install the manifold absolute pressure (MAP) sensor, taking care not to give a shock to it.

- Do not use a manifold absolute pressure (MAP) sensor that has been dropped.

]]B[[ EGR INLET PIPE GASKET / EGR VALVE SUPPORT GASKET / EGR PIPE GASKET INSTALLATION

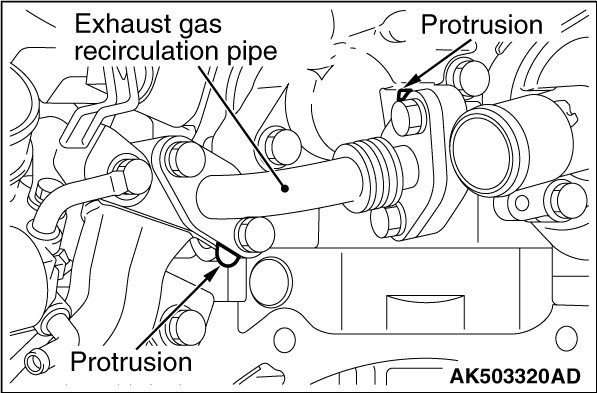

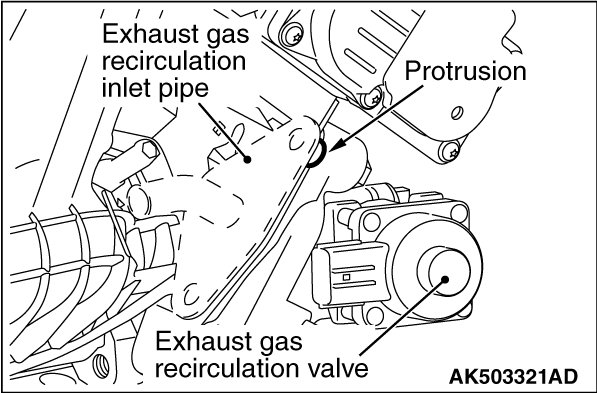

1. Temporarily tighten each part so that the protrusion of each gasket is positioned as illustrated.

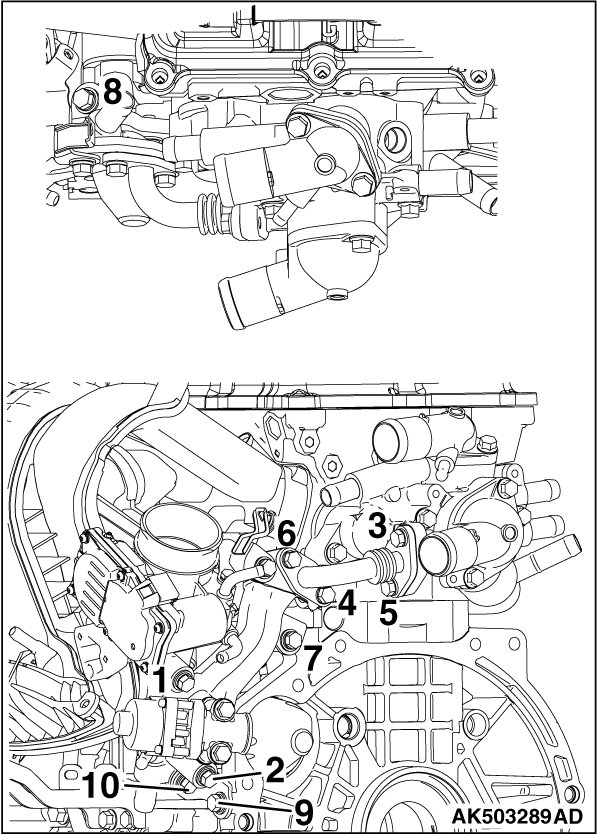

2. Tighten mounting bolts to the specified torque of 20 ± 2 Nm (15 ± 1 ft-lb) in the order shown in the illustration.

]]C[[ EGR VALVE GASKET INSTALLATION

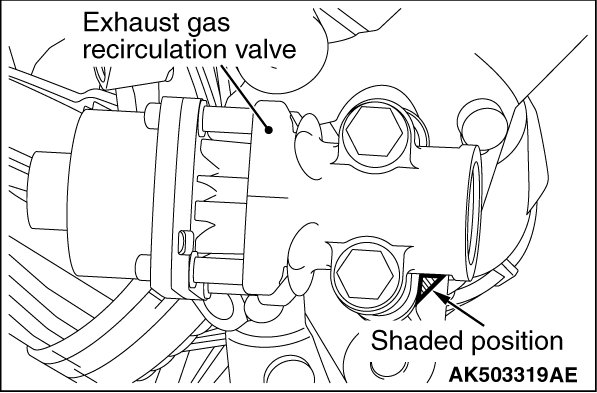

Install the EGR valve gasket with the diagonally shaded area used as the illustrated position so as not to confuse the front with the back.
