Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

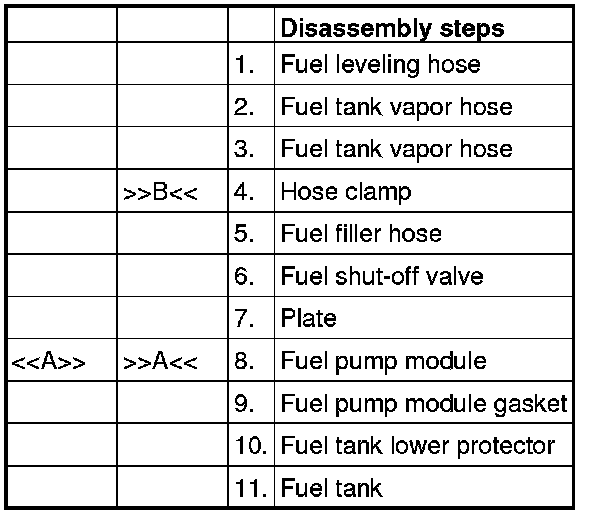

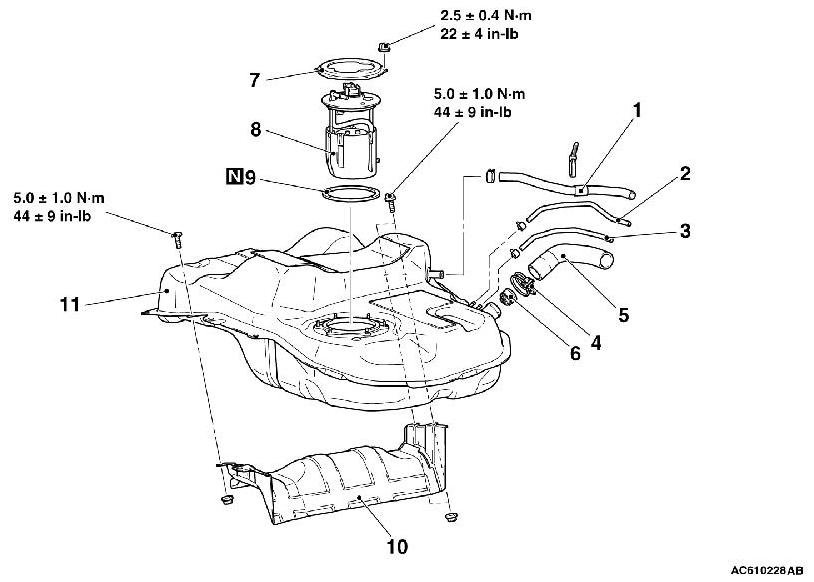

[FUEL TANK ASSEMBLY]









ASSEMBLY SERVICE POINT

[[A]] FUEL PUMP MODULE REMOVAL

CAUTION:
Pay attention not to damage the fuel level sensor and float of the fuel pump module when removing it from the fuel tank.

DISASSEMBLY SERVICE POINTS

]]A[[ FUEL PUMP MODULE INSTALLATION

CAUTION:

- Pay attention not to damage the fuel level sensor and the float of the fuel pump module when installing it to the fuel tank.

- When installing the fuel pump module to the fuel tank, check that the float of the fuel pump module moving area moves smoothly.

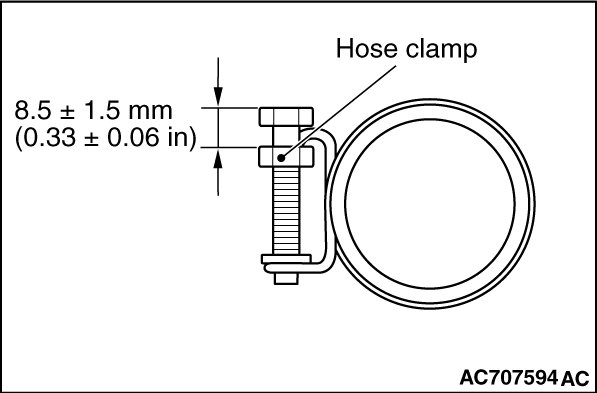

]]B[[ HOSE CLAMP INSTALLATION





Connect the fuel filler hose, and tighten the bolt of hose clamp so that the bolt tightening dimension of the hose clump becomes 8.5 ± 1.5 mm (0.33 ± 0.06 inch.)
