Home >> Mitsubishi >> 2012 >> Lancer Sportback L4-2.0L (4B11) >> Repair and Diagnosis >> Maintenance >> Wheels and Tires >> Wheel Hub >> Tools and Equipment >> Rear Axle [AWD]

Rear Axle [AWD]

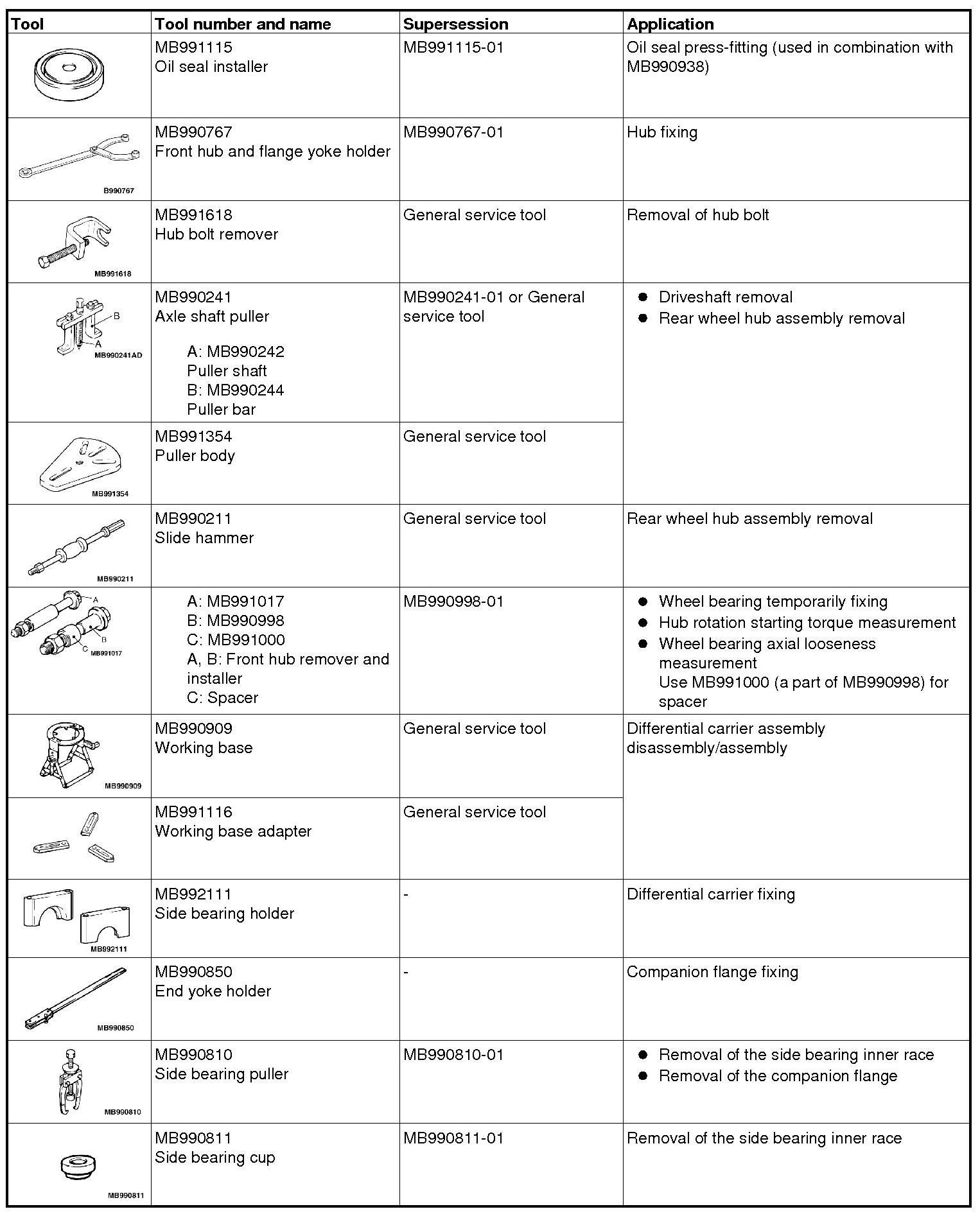

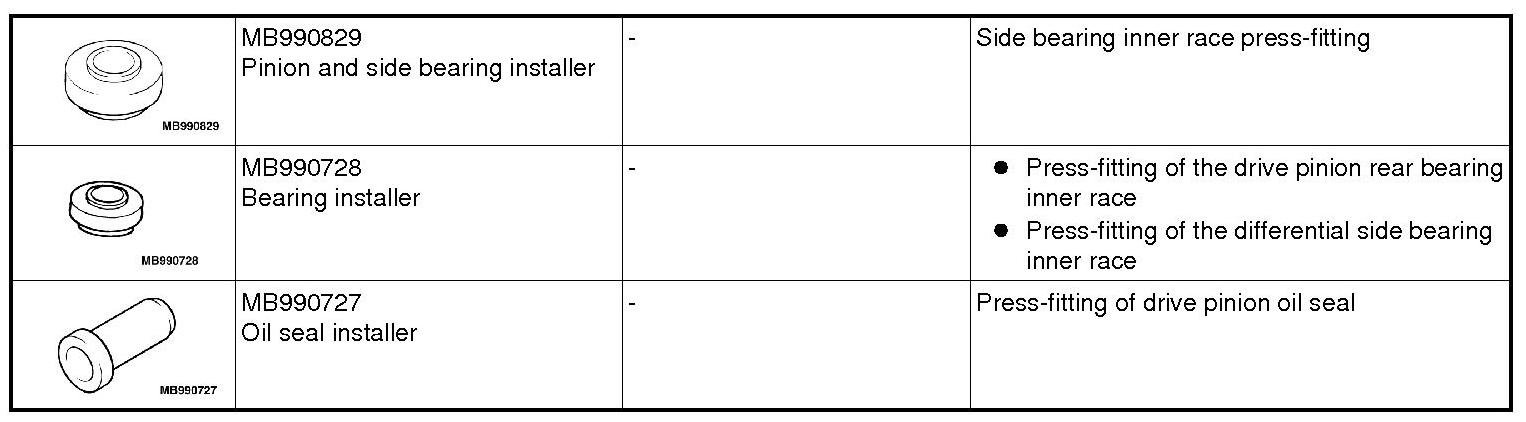

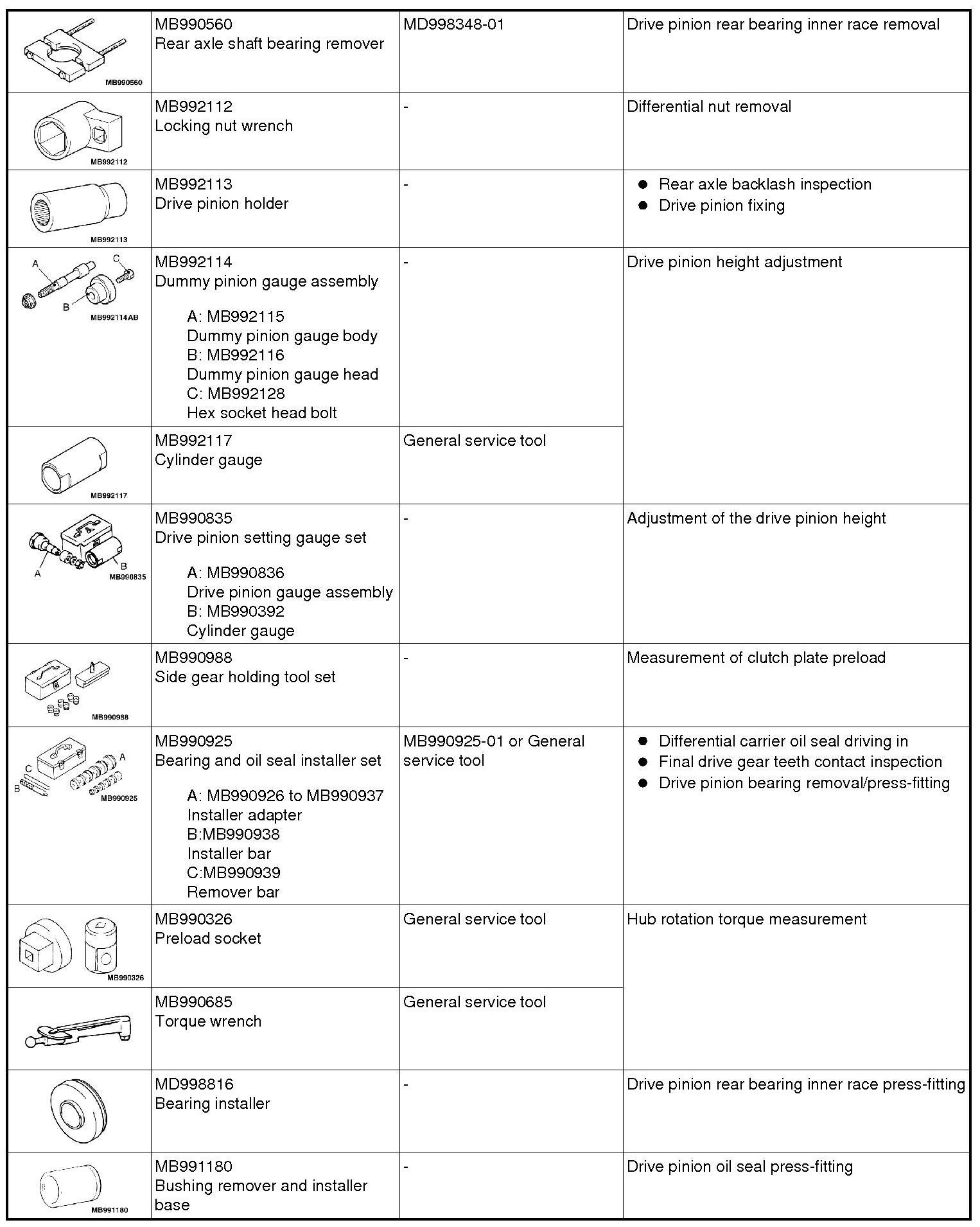

SPECIAL TOOLS

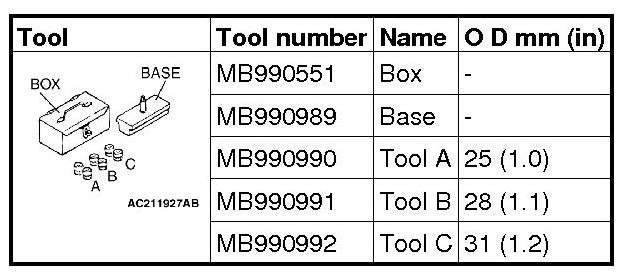

SIDE GEAR HOLDING TOOL SET

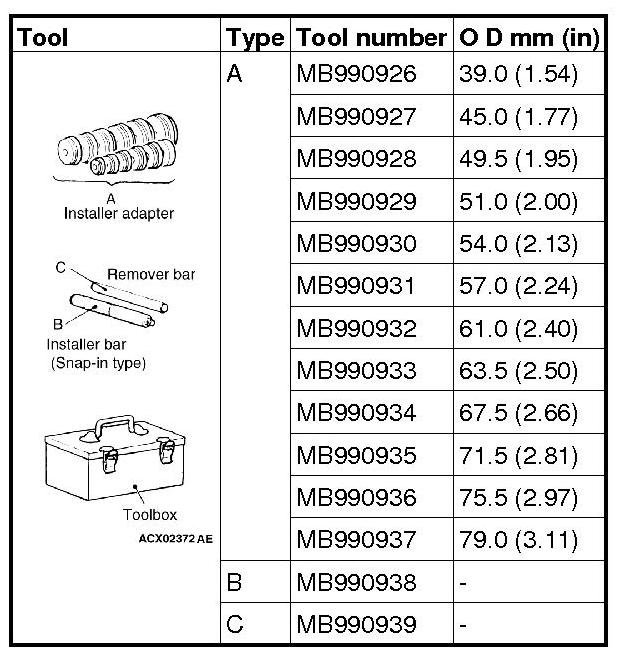

MB990925 BEARING AND OIL SEAL INSTALLER SET
