Turn Signals: Service and Repair

REMOVAL AND INSTALLATION

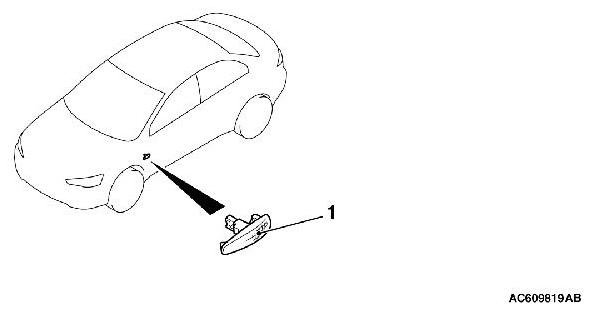

[LANCER]

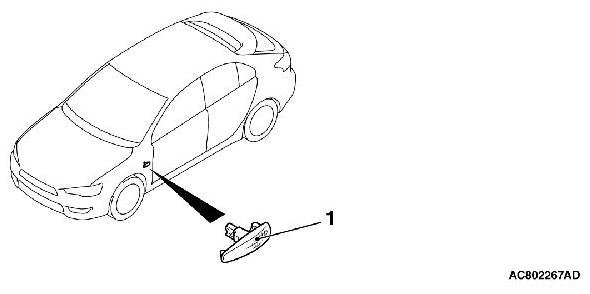

[LANCER SPORTBACK]









REMOVAL SERVICE POINT

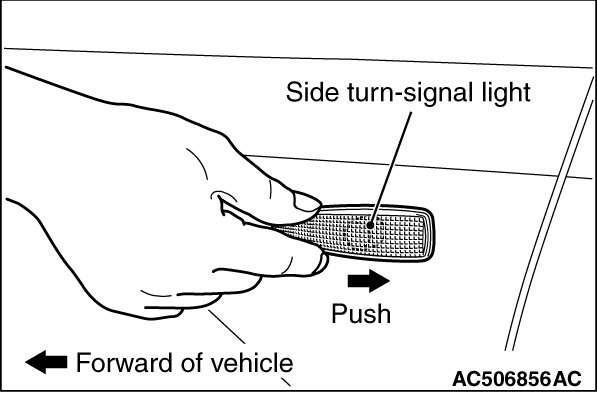

[[A]] SIDE TURN-SIGNAL LIGHT REMOVAL





Push the side turn-signal light toward the vehicle rear to bend the hook, and then remove by disengaging the tab from the fender panel.

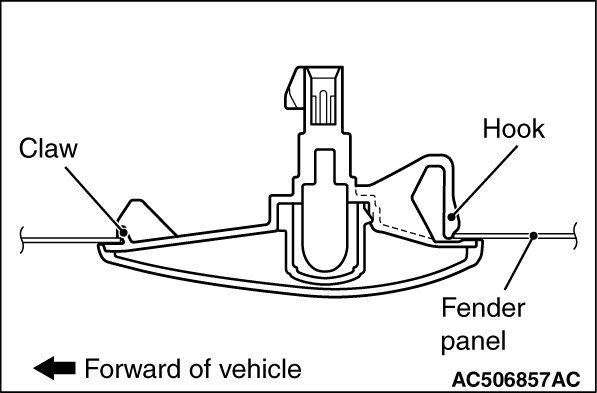

INSTALLATION SERVICE POINT

]]A[[
SIDE TURN-SIGNAL LIGHT INSTALLATION





Engage the claw to the fender panel to install the side turn signal light.
