Engine Mounting Removal and Installation

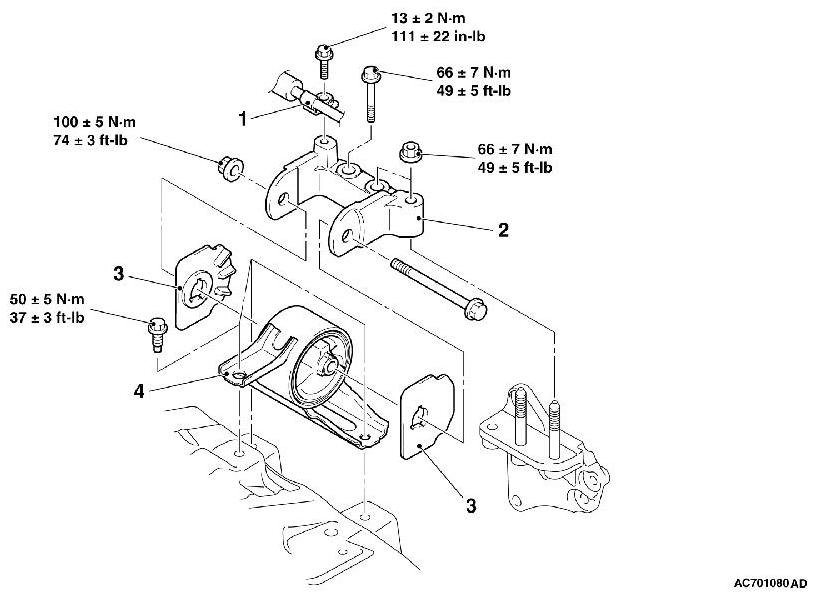

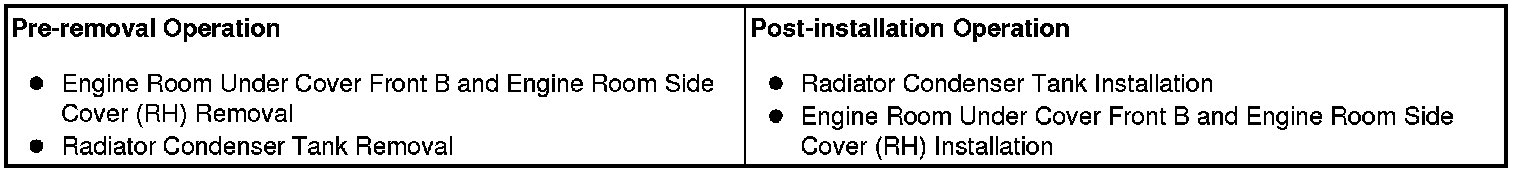

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

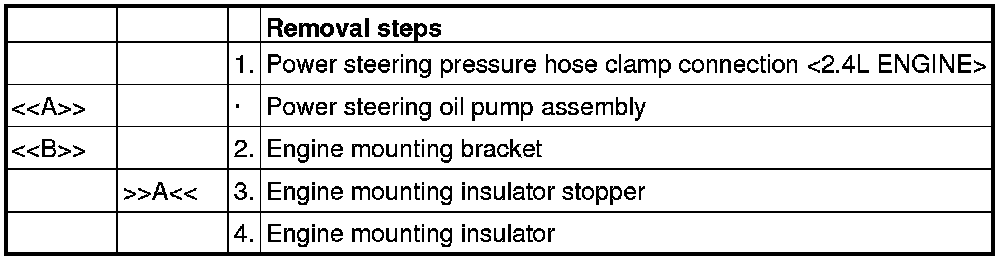

REMOVAL SERVICE POINTS

[[A]] POWER STEERING OIL PUMP ASSEMBLY REMOVAL

Remove the power steering oil pump assembly together with the hose from the bracket.

[[B]] ENGINE MOUNTING BRACKET REMOVAL

1.
CAUTION:
When supporting the engine and transaxle assembly with a garage jack, be careful not to deform the engine oil pan.

Place a garage jack against the engine oil pan with a piece of wood in between to support the engine and transaxle assembly.

2. Operate a garage jack so that the engine weight is not applied to the engine mounting insulator, and remove the engine mounting insulator.

INSTALLATION SERVICE POINT

]]A[[ ENGINE MOUNTING INSULATOR STOPPER INSTALLATION

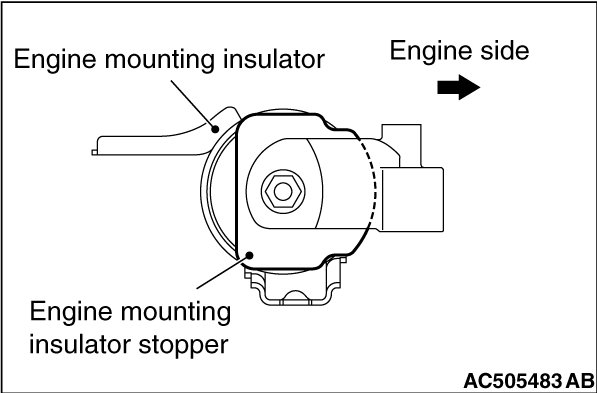

Install the engine mounting insulator stopper as shown in the figure.
