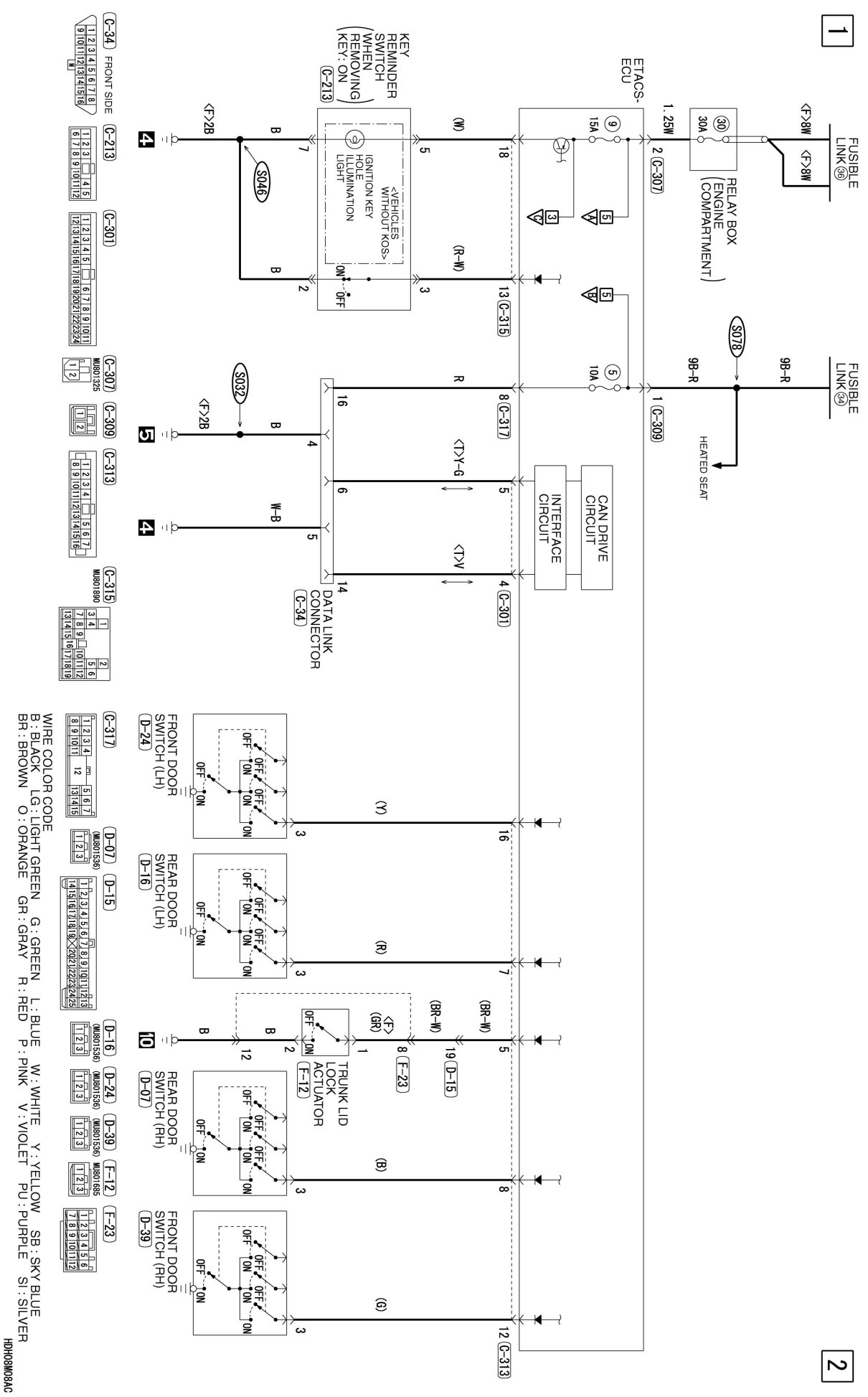

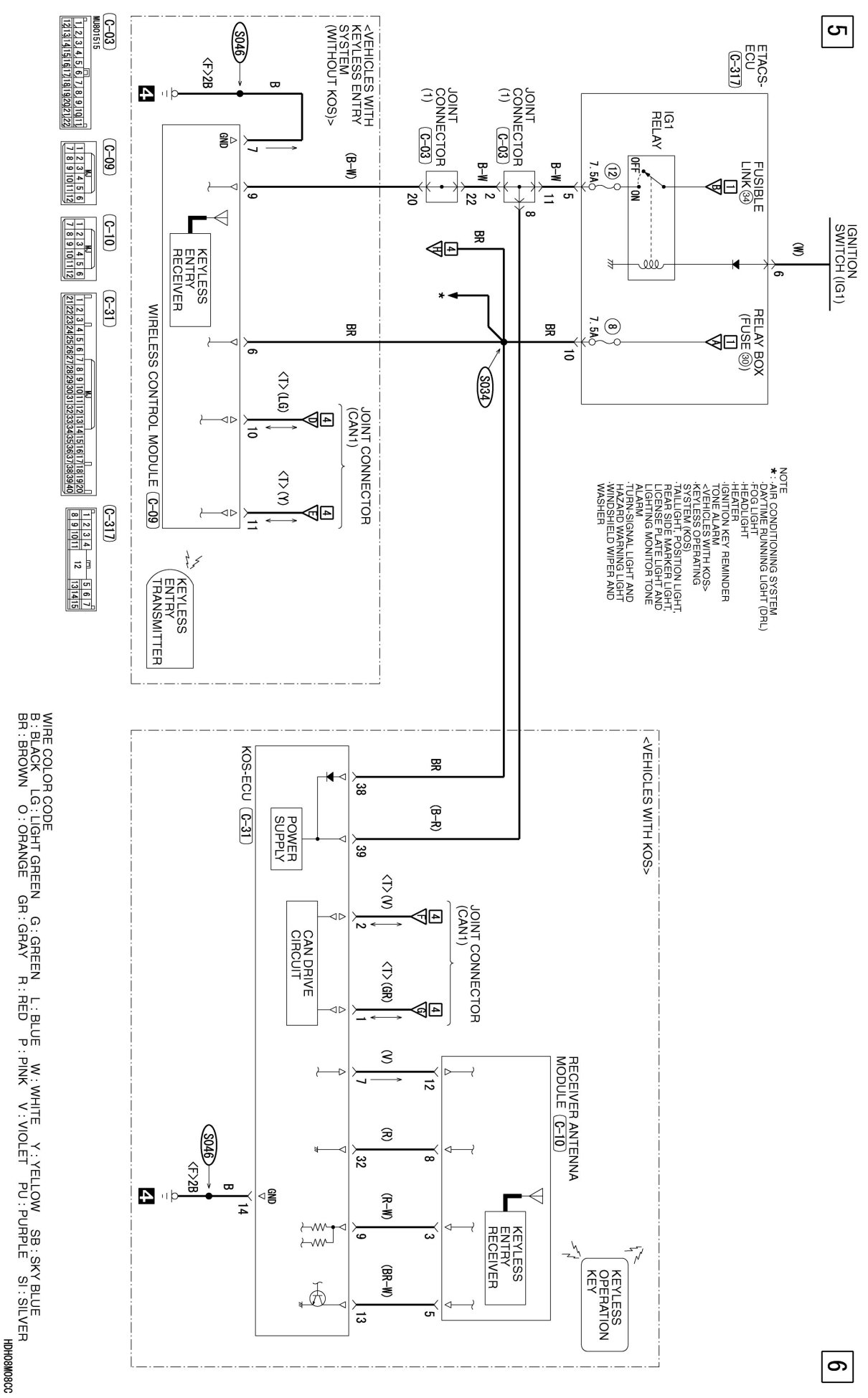

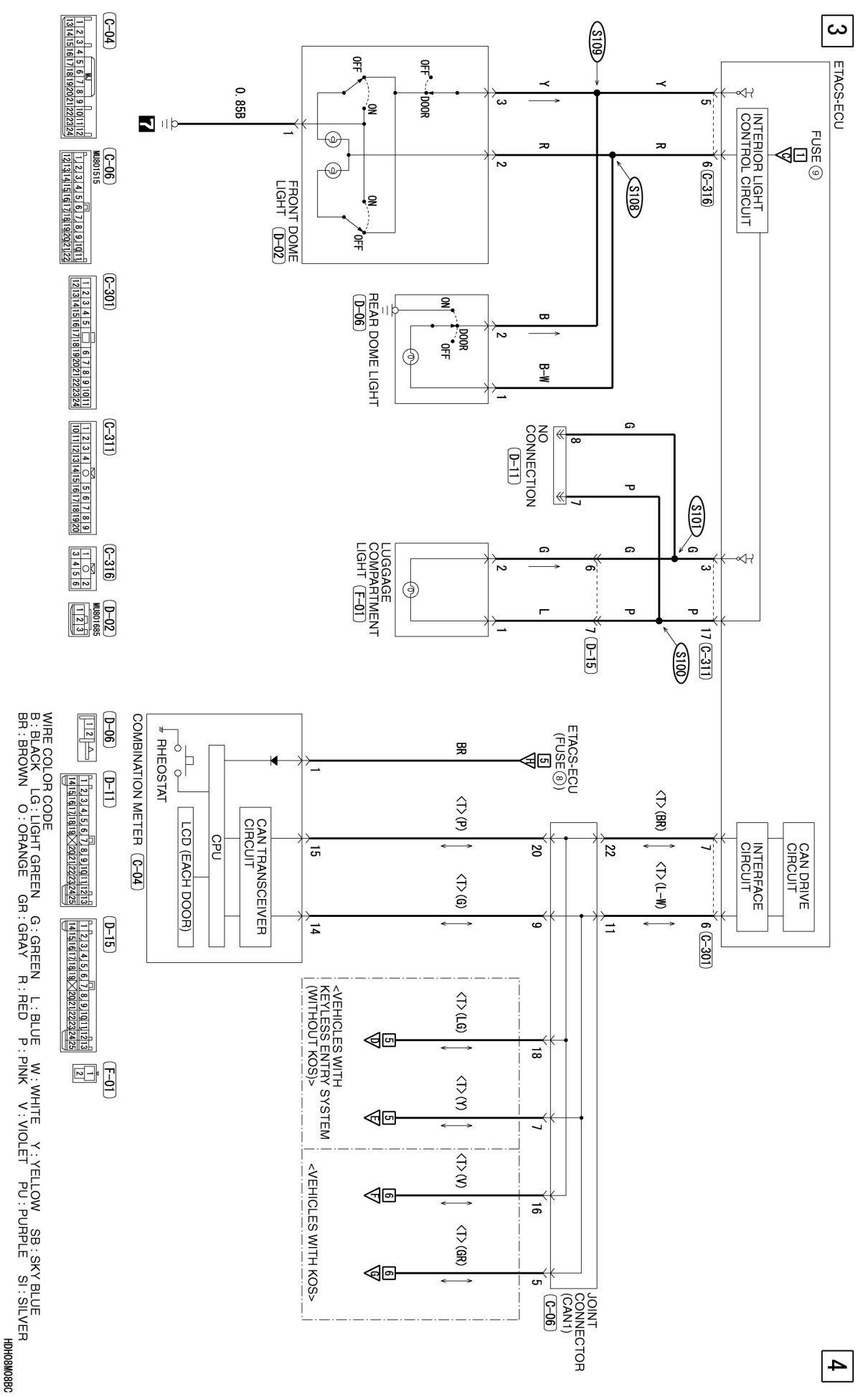

Dome Light, Luggage Compartment Light and Ignition Key Hole Illumination Light [Lancer]




DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT [LANCER]
