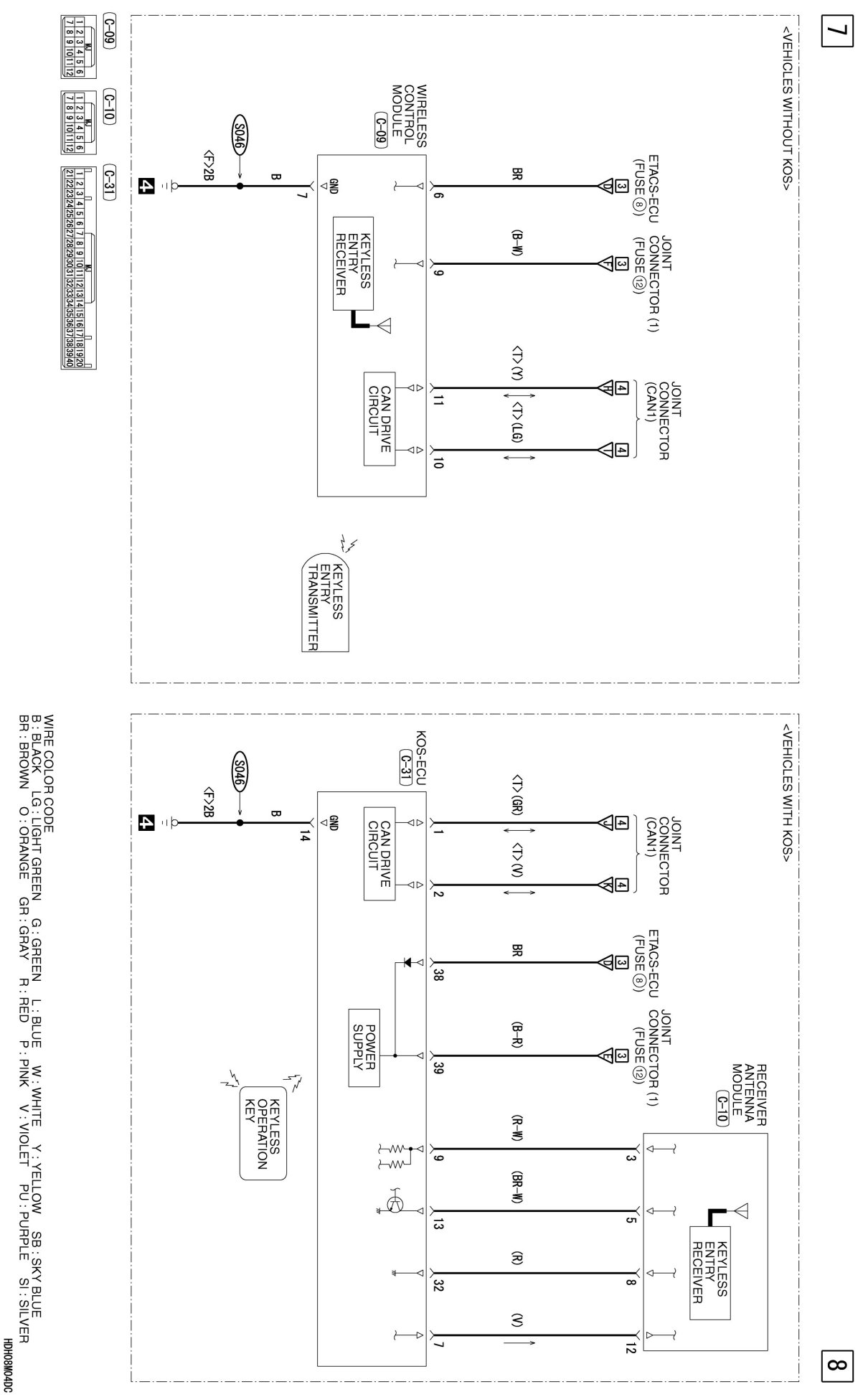

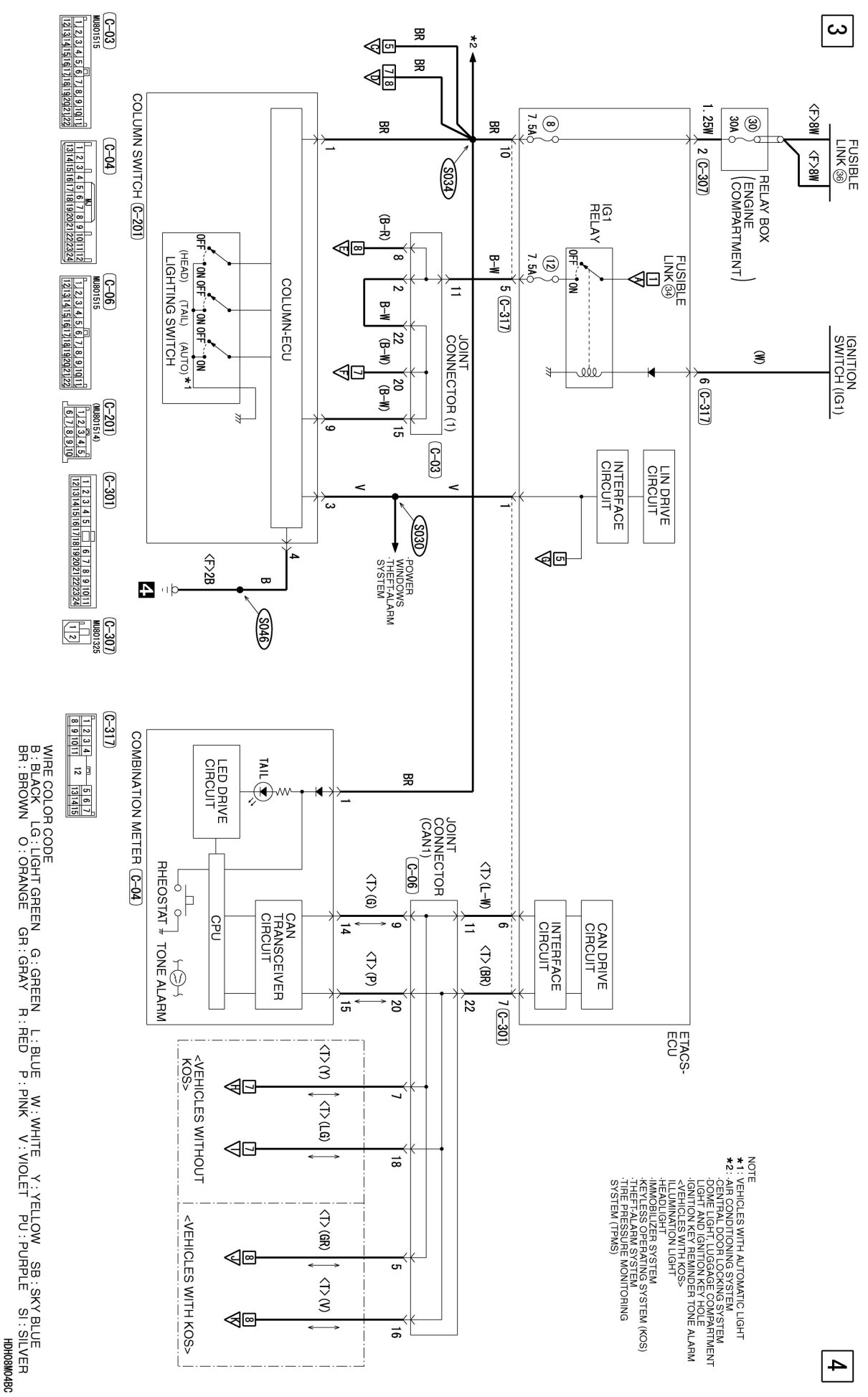

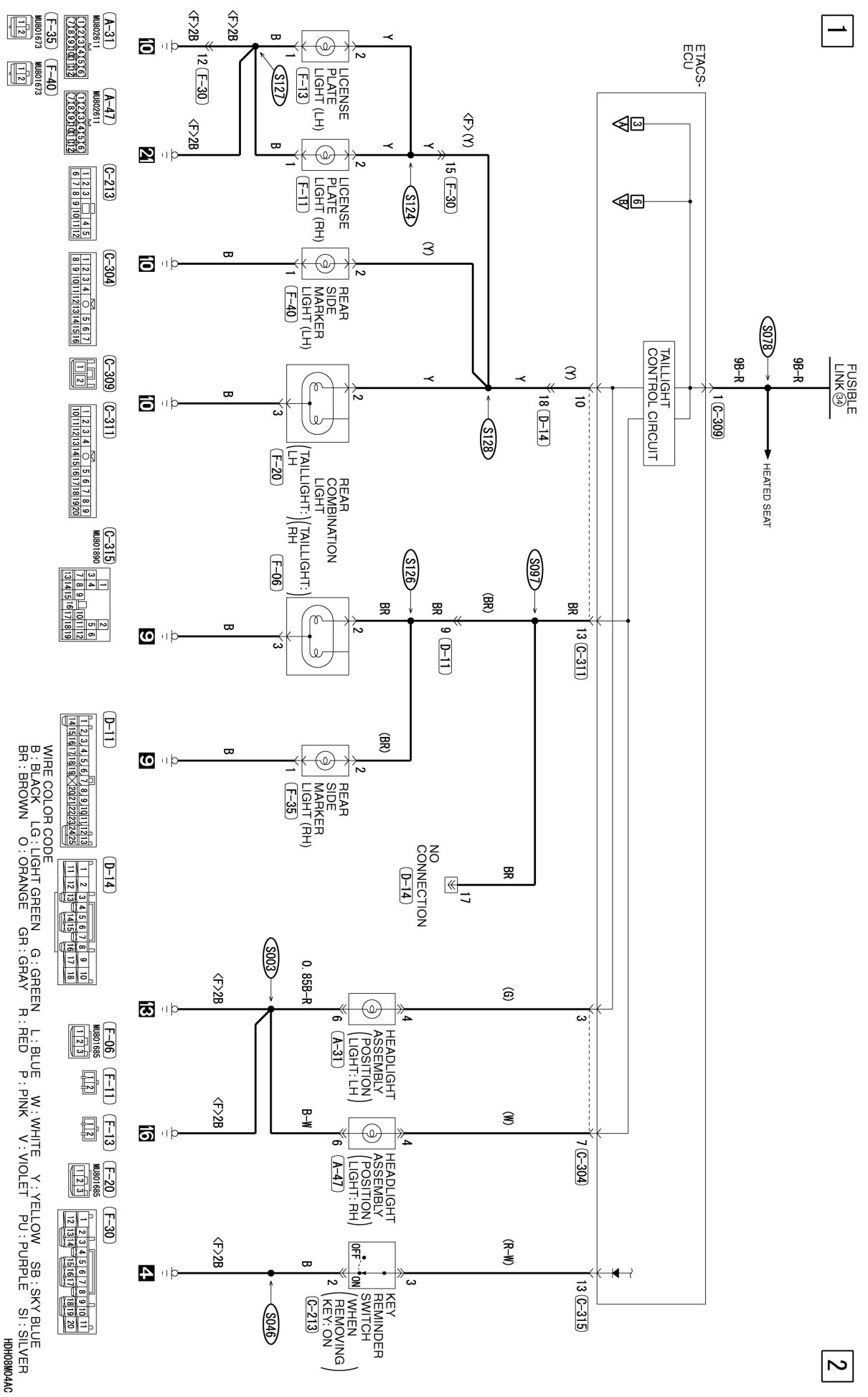

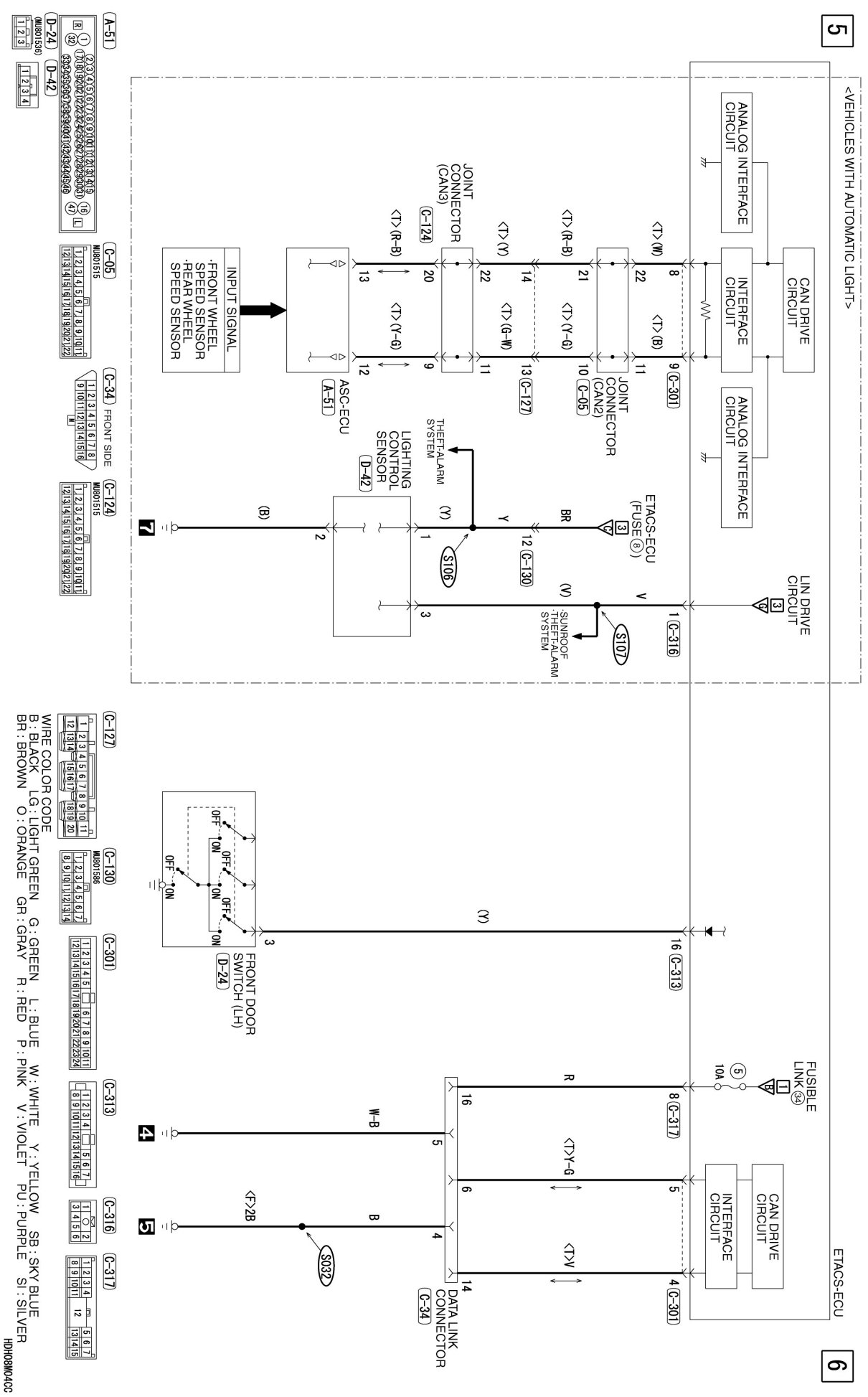

Taillight, Position Light, Rear Side Marker Light, License Plate Light and Lighting Monitor Tone Alarm




TAILLIGHT, POSITION LIGHT, REAR SIDE MARKER LIGHT, LICENSE PLATE LIGHT AND LIGHTING MONITOR TONE ALARM [LANCER SPORTBACK]
