Home >> Mitsubishi >> 2012 >> Lancer Sportback L4-2.0L (4B11) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Antilock Brake and Traction Control Systems

Antilock Brake and Traction Control Systems

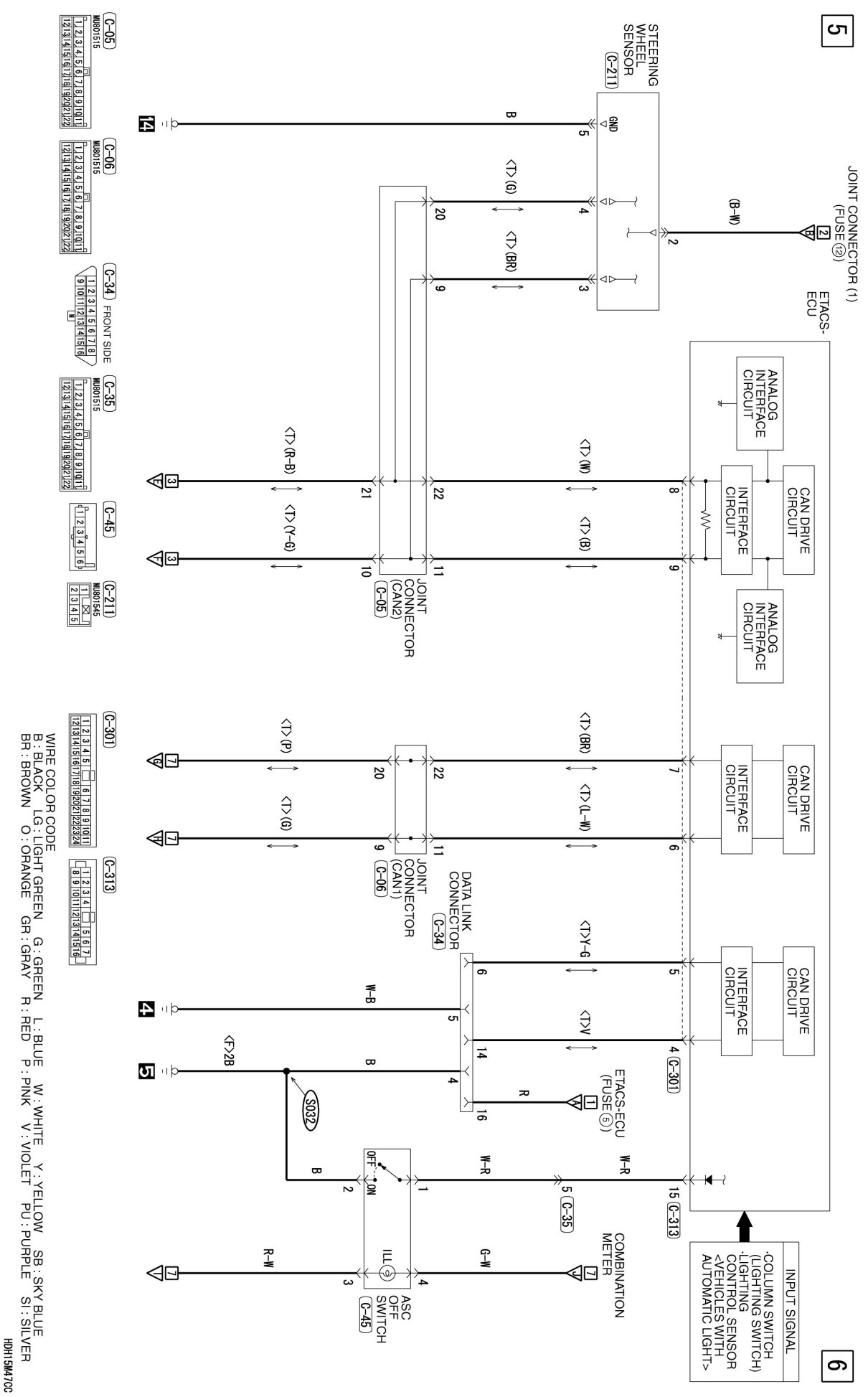

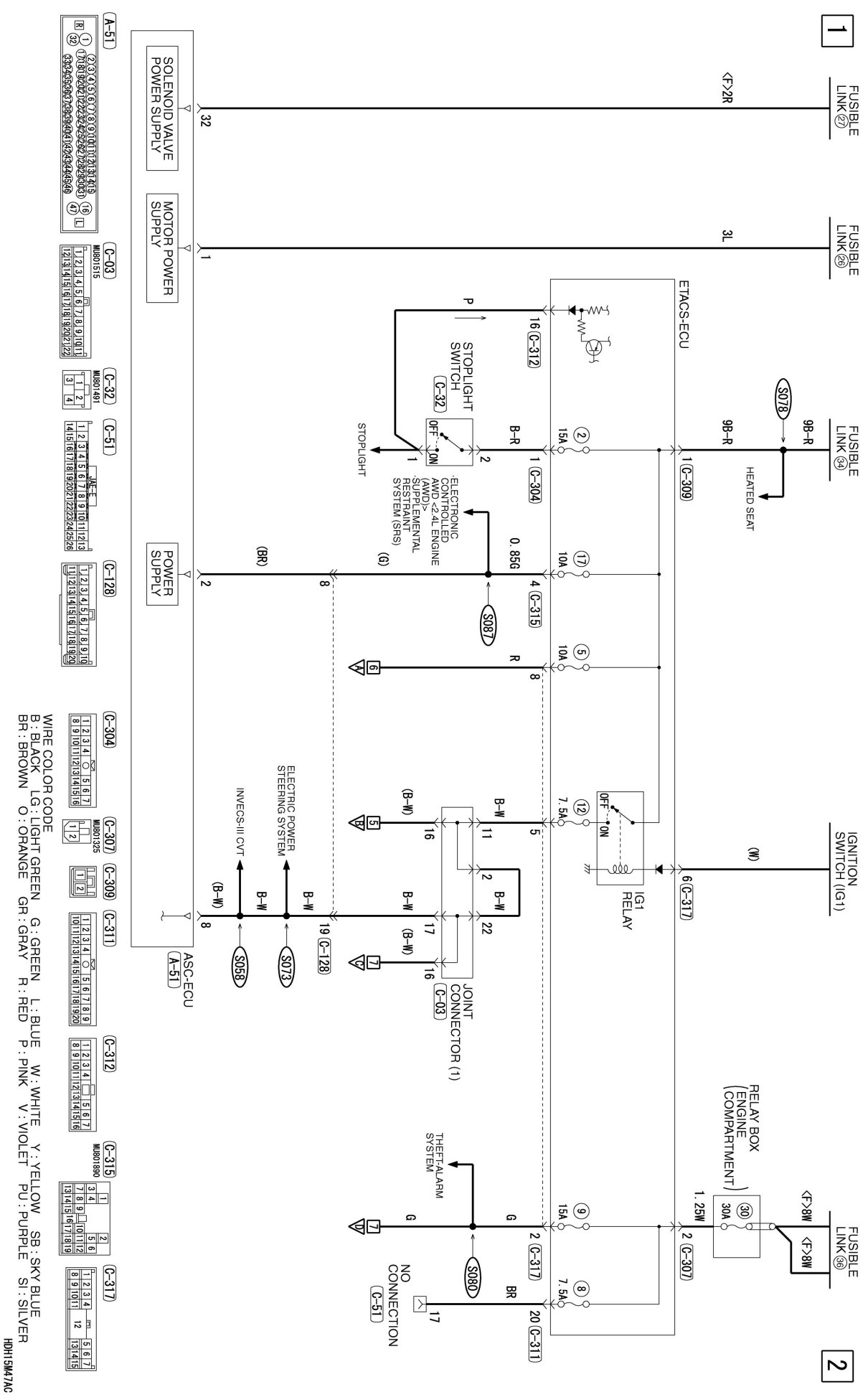

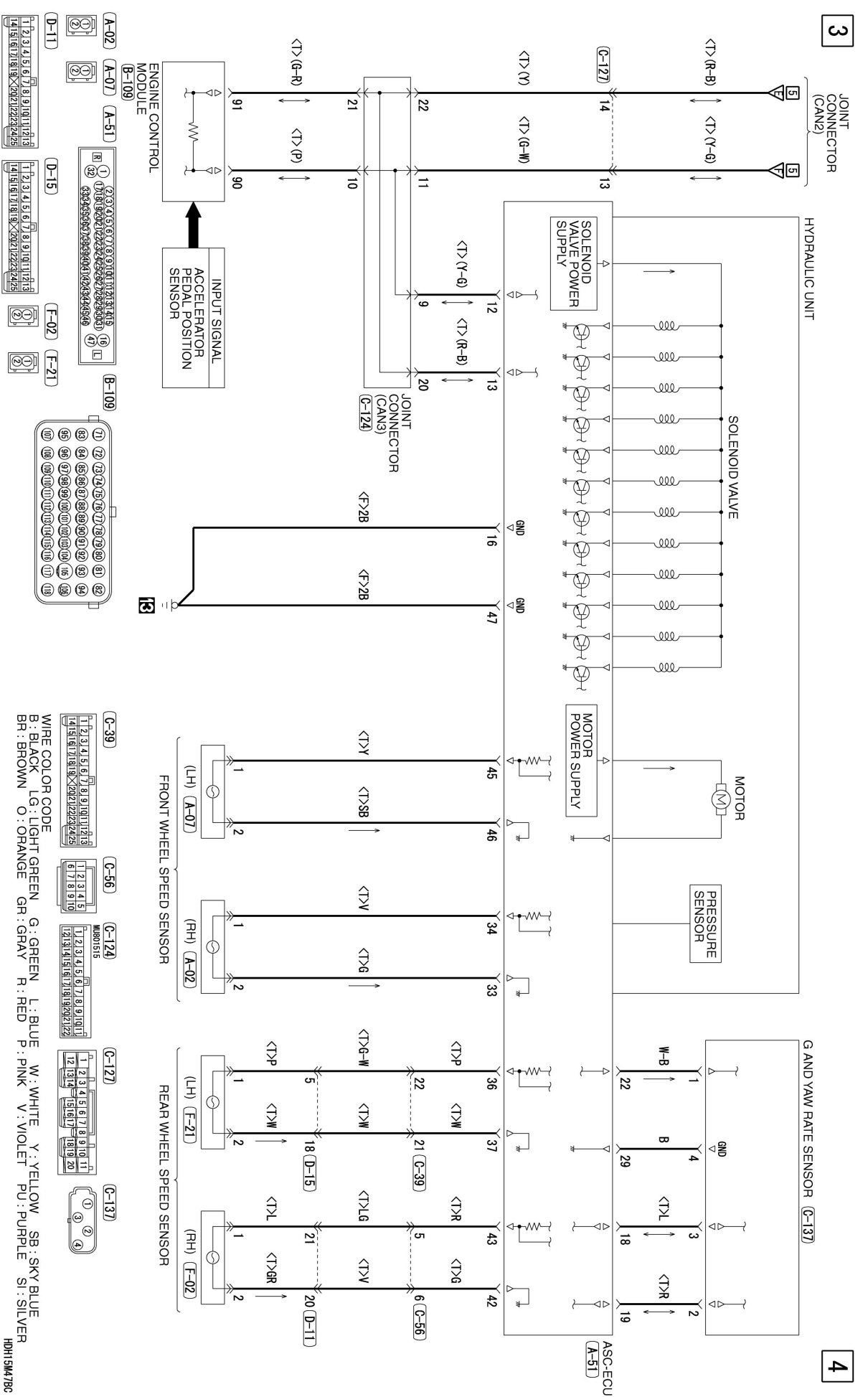

ANTI-LOCK BRAKING SYSTEM (ABS) AND ACTIVE STABILITY CONTROL SYSTEM (ASC) [NON-TURBO]
