Amplifier: Service and Repair

REMOVAL AND INSTALLATION

CAUTION:
To remove the front seat assembly of vehicle with side air bag, refer to Service Precautions Service Precautions and Air Bag Module(S) And Clock Spring Removal and Installation (Except Ralliart) [Except RALLIART]
or Removal and Installation (Ralliart) [RALLIART].

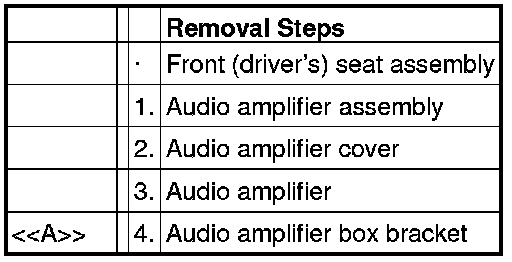

REMOVAL SERVICE POINT

[[A]] REMOVAL OF AUDIO AMPLIFIER BOX BRACKET

Turn up and remove the carpet.
