Removal and Replacement

REMOVAL AND INSTALLATION

[LANCER]









[LANCER SPORTBACK]

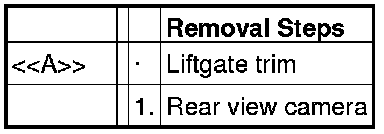

REMOVAL SERVICE POINT

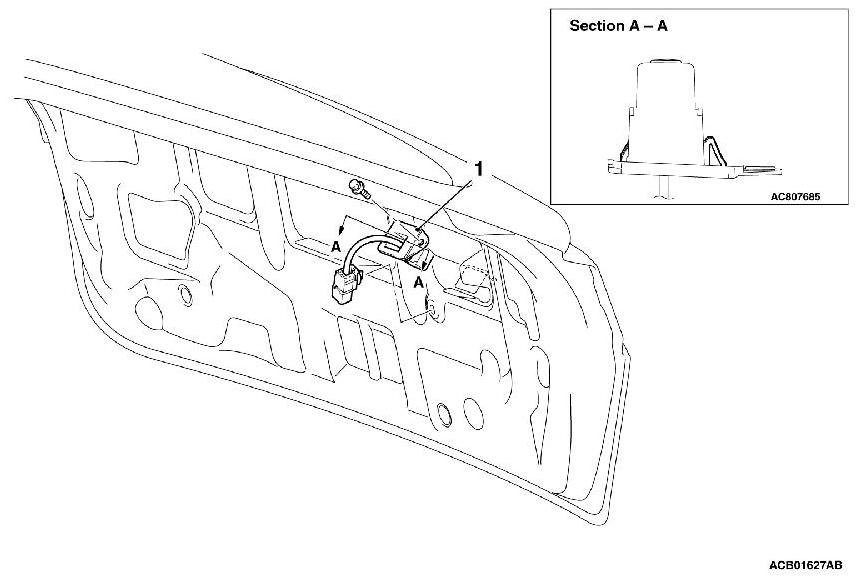

[[A]] REAR VIEW CAMERA REMOVAL

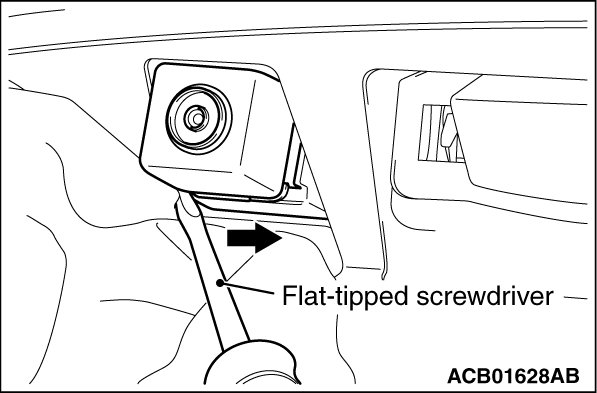

Attach a cloth or the protective tape to the tailgate. Put the tab (LH side) on the rear view camera to the right with the flat-tipped screwdriver, then remove the rear view camera.
