LIN Cutoff Control Unit Inspection [Vehicles With Theft Alarm Sensor]




LIN CUTOFF CONTROL UNIT CHECK





CONTINUITY CHECK

Remove the LIN cutoff control unit.(Refer to Service and Repair)

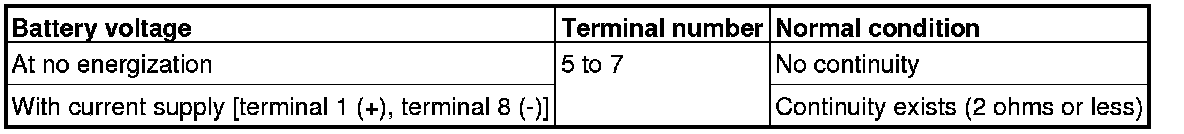

RELAY CHECK

Remove the LIN cutoff control unit.(Refer to Service and Repair)
