Exhaust Manifold Removal and Installation

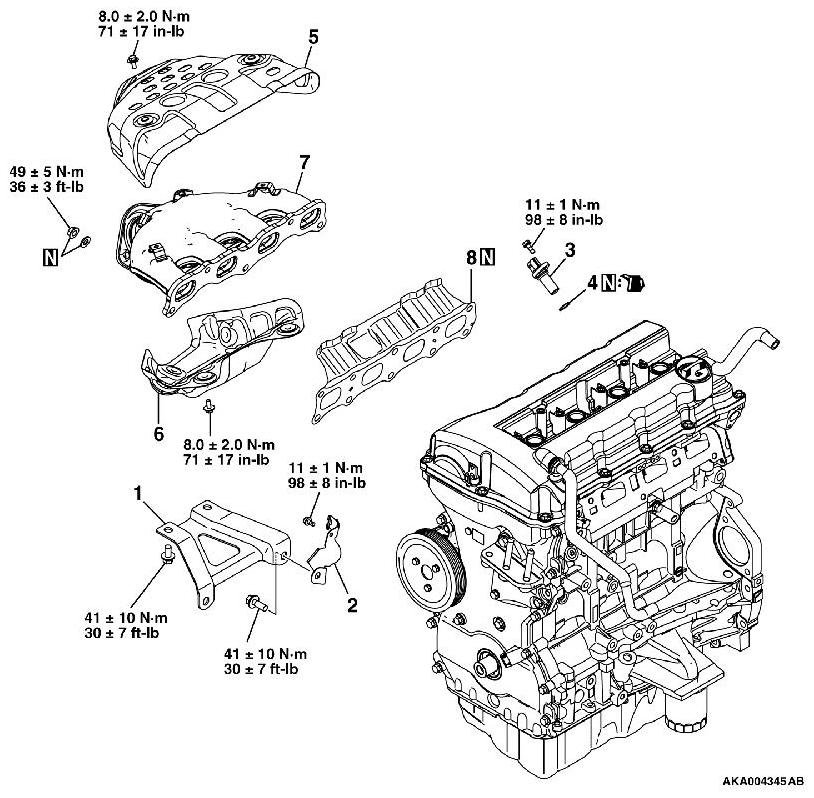

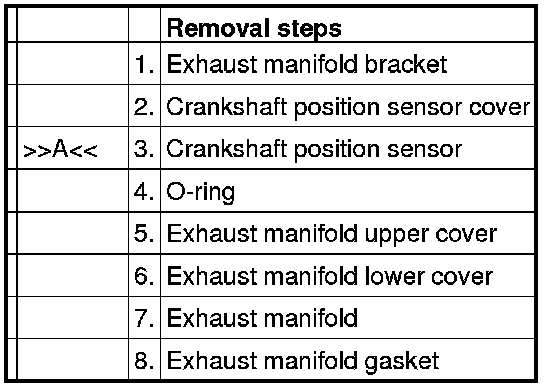

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT POSITION SENSOR INSTALLATION

CAUTION:

- Do not apply a force such as torsion or twist to the O-ring during assembly of the sensor.

- Assemble the sensor, taking care not to give a shock to it.

- Do not use a sensor that has been dropped.

Tighten the crankshaft position sensor to the specified torque.

Specified torque: 11 ± 1 Nm (98 ± 8 in-lb)
