Fan Control Relay Continuity Check




COOLING FAN RELAY CONTINUITY CHECK [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

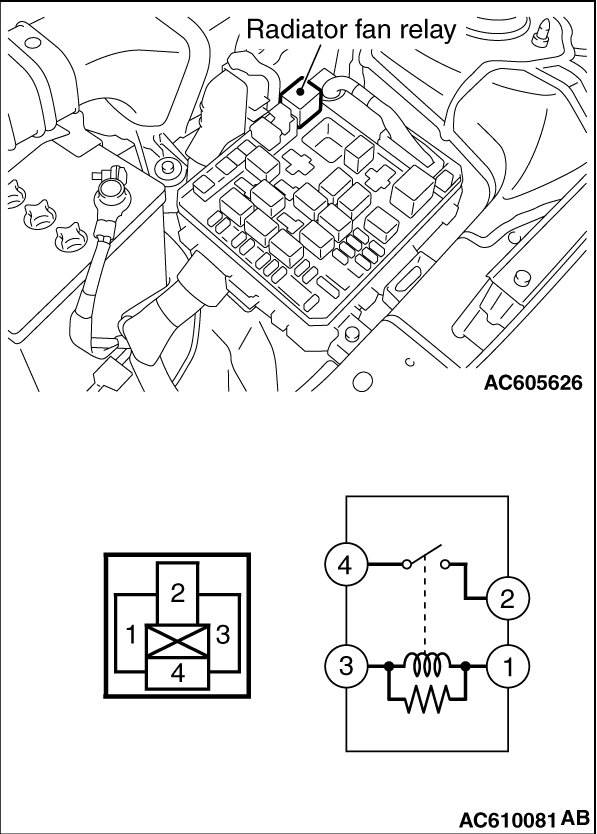

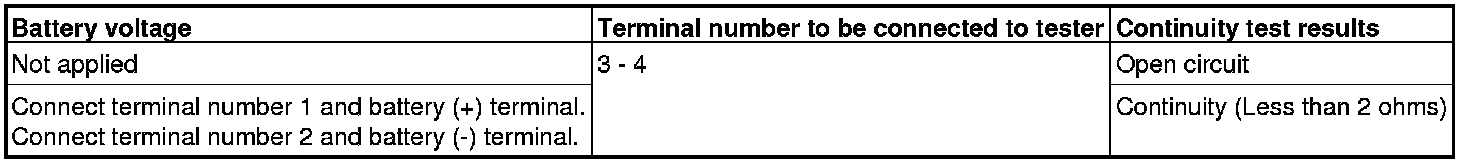

RADIATOR FAN RELAY CHECK

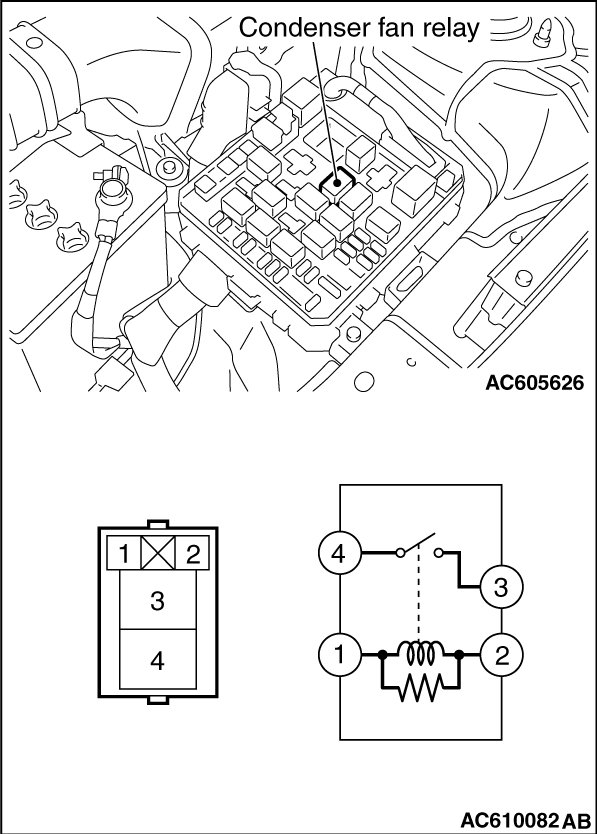

CONDENSER FAN RELAY CHECK

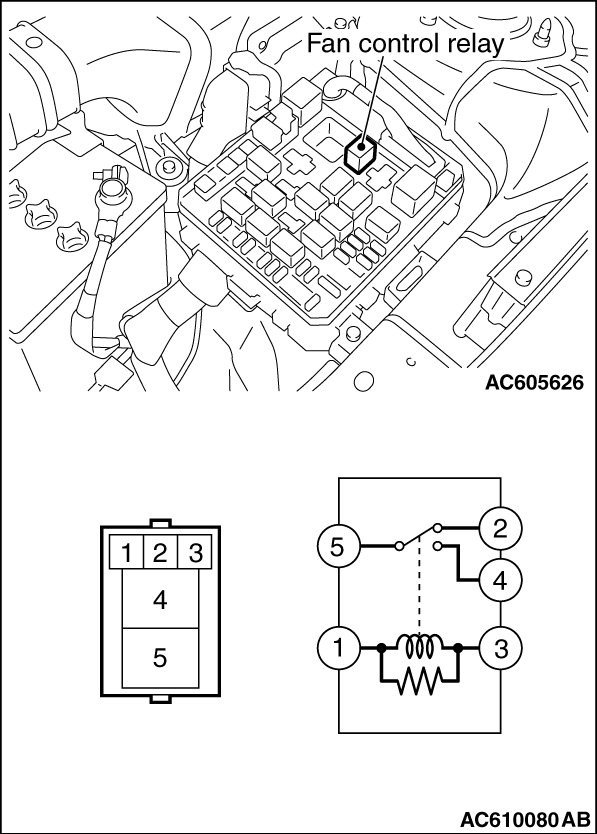

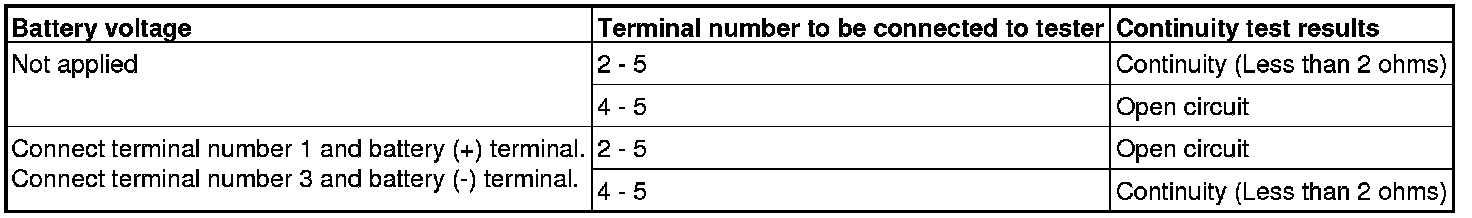

FAN CONTROL RELAY CHECK
