P0515

DTC P0515: Battery Temperature Sensor Circuit

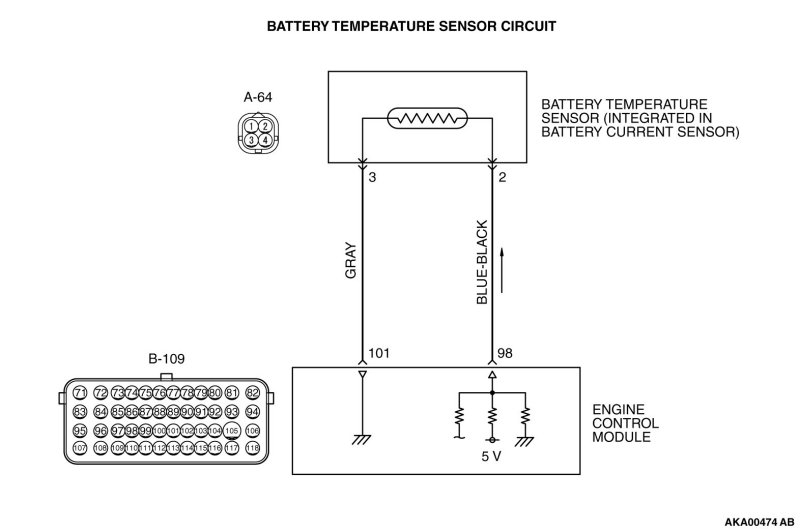

CIRCUIT OPERATION

- Approximately 5 volts are applied to the battery temperature sensor output terminal (terminal No. 2) from the ECM (terminal No. 98) via the resistor in the ECM. The ground terminal (terminal No. 3) is grounded with ECM (terminal No. 101).

- The battery temperature sensor is a negative temperature coefficient type of resistor.
When the battery temperature rises, the resistance decreases.

- The battery temperature sensor output voltage increases when the resistance increases and decreases when the resistance decreases.

TECHNICAL DESCRIPTION

- The battery temperature sensor converts the battery temperature to a voltage.

- The ECM checks whether this voltage is within a specified range.

DESCRIPTIONS OF MONITOR METHODS

Battery temperature sensor output voltage is out of specified range.

DTC SET CONDITIONS

Check Condition

- 2 seconds later after the ignition switch has been in ON position or just after the engine has started up.
Judgement Criterion

- Battery temperature sensor output voltage is more than 4.6 V (corresponding to a battery temperature of -50°C or less) for 2 seconds.
or

- Battery temperature sensor output voltage is less than 0.2 V (corresponding to a battery temperature of 90°C or more) for 2 seconds.

FAIL-SAFE AND BACKUP FUNCTION

- Prohibits generator output suppression control against current consumers. (Operates as a normal generator.)

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are: )

- Battery temperature sensor failed.

- Open/shorted battery temperature sensor circuit, harness damage or connector damage.

- ECM failed.

DIAGNOSIS

Required Special Tools:

- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.

- MB991827: USB Cable

- MB991910: Main Harness A

- MB992110: Power Plant ECU Check Harness

STEP 1. Check harness connector A-64 at battery temperature sensor for damage.

Q. Is the harness connector in good condition?

YES Go to Step 2.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 12.
STEP 2. Check the battery temperature sensor.

- Check battery temperature sensor itself Component Tests and General Diagnostics)

Q. Is the check result normal?

YES Go to Step 3.
NO Replace the battery current sensor. Then go to Step 12.
STEP 3. Measure the sensor supply voltage at battery temperature sensor harness side connector A-64.

(1)Disconnect the connector A-64 and measure at the harness side.

(2)Turn the ignition switch to the "ON" position.

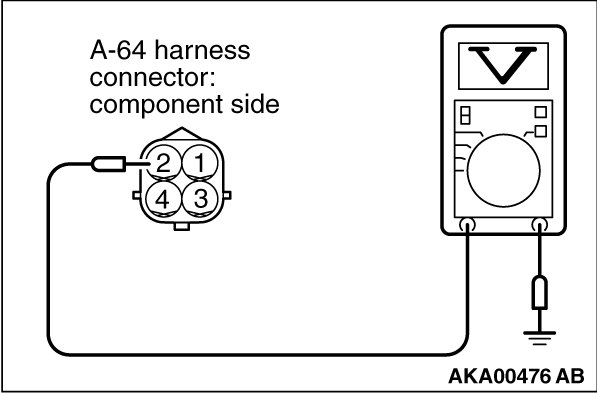

(3)Measure the voltage between terminal No. 2 and ground.

- Voltage should be between 4.5 and 4.9 volts.
(4)Turn
the ignition switch to the "LOCK" (OFF) position.

Q. Is the measured voltage between 4.5 and 4.9 volts?

YES Go to Step 7.

NO Go to Step 4.

STEP 4. Check harness connector B-109 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 5.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 12.
STEP 5. Check for open circuit and short circuit to ground between battery temperature sensor connector A-64 (terminal No. 2) and ECM connector B-109 (terminal No. 98).

Q. Is the harness wire in good condition?

YES Go to Step 6.
NO Repair it. Then go to Step 12.
STEP 6. Using scan tool MB991958, read the diagnostic trouble code
(DTC).





CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK"
(OFF) position before connecting or disconnecting scan tool MB991958.

(1)Connect scan tool MB991958 to the data link connector.
(2)Start the engine and run at idle.
(3)After the DTC has been deleted, read the DTC again.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is DTC P0515 set?

YES Replace the ECM (Refer to, Removal and Installation Removal and Replacement).
Then go to Step 12.

NO It can be assumed that this malfunction is intermittent. How to Cope With Intermittent Malfunctions.

STEP 7. Check the continuity at battery temperature sensor harness side connector A-64.

(1)Disconnect the connector A-64 and measure at the harness side.

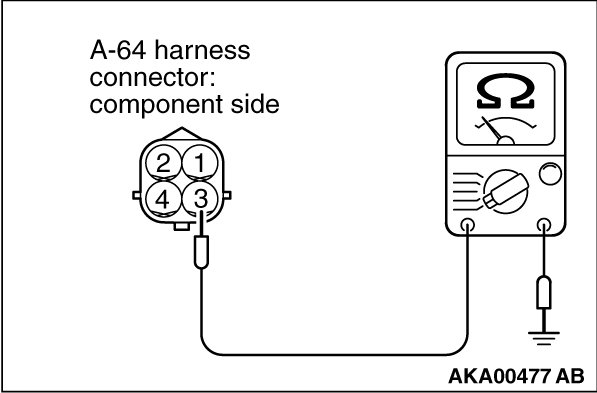

(2)Check for the continuity between terminal No. 3 and ground.

- Continuity (2 ohms or less)

Q. Does continuity exist?

YES Go to Step 10.

NO Go to Step 8.

STEP 8. Check harness connector B-109 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 9.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 12.
STEP 9. Check for open circuit and damage between battery temperature sensor connector A-64 (terminal No. 3) and ECM connector B-109 (terminal No. 101).

Q. Is the harness wire in good condition?

YES Go to Step 6.
NO Repair it. Then go to Step 12.
STEP 10. Check harness connector B-109 at ECM for damage.

Q. Is the harness connector in good condition?

YES Go to Step 11.
NO Repair or replace it. Harness Connector Inspection.
Then go to Step 12.
STEP 11. Check for harness damage between battery temperature sensor connector A-64 (terminal No. 2) and ECM connector B-109 (terminal No. 98).

Q. Is the harness wire in good condition?

YES Go to Step 6.
NO Repair it. Then go to Step 12.
STEP 12. Using scan tool MB991958, read the diagnostic trouble code
(DTC).





(1)Connect scan tool MB991958 to the data link connector.
(2)Start the engine and run at idle.
(3)After the DTC has been deleted, read the DTC again.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the DTC P0515 set?

YES Retry the troubleshooting.

NO The inspection is complete.
